ReadyLift - 3"F/1"R SST Lift Kit - 2019-2023 Ford Ranger - 69-2930

ReadyLIFT 3" front / 1" rear SST Lift Kit for the 2019-2023 Ford Ranger, using billet-aluminum top-hat technology plus a 1" rear block for a lifted stance with mild rake.

ReadyLIFT's 69-2930 combines a CNC-machined billet aluminum 3.0" front leveling component (Top Hat Replacement technology, combining the top mount and spring preload spacer in one) with a heavy-duty 1" tall rear block, centering pins, and longer U-bolts to raise the Ford Ranger front and rear with a small amount of rake for towing and hauling. It allows a mild increase in tire size, requires no cutting or modifications, and maintains the factory ride and handling. Made in the USA.

Fits: 2019-2023 Ford Ranger XL, XLT, Lariat, and FX4. Not for use with Ranger Ford Performance Level 1, 2, or 3 Packages or the Ranger Tremor Edition.

Features

• 3" front / 1" rear lift; Made in the USA
• Top Hat Replacement technology (CNC-machined billet aluminum)
• 1" tall rear block with centering pins and longer U-bolts
• Increases ground clearance and allows a mild tire size increase
• Requires a spring compressor; no cutting or modifications

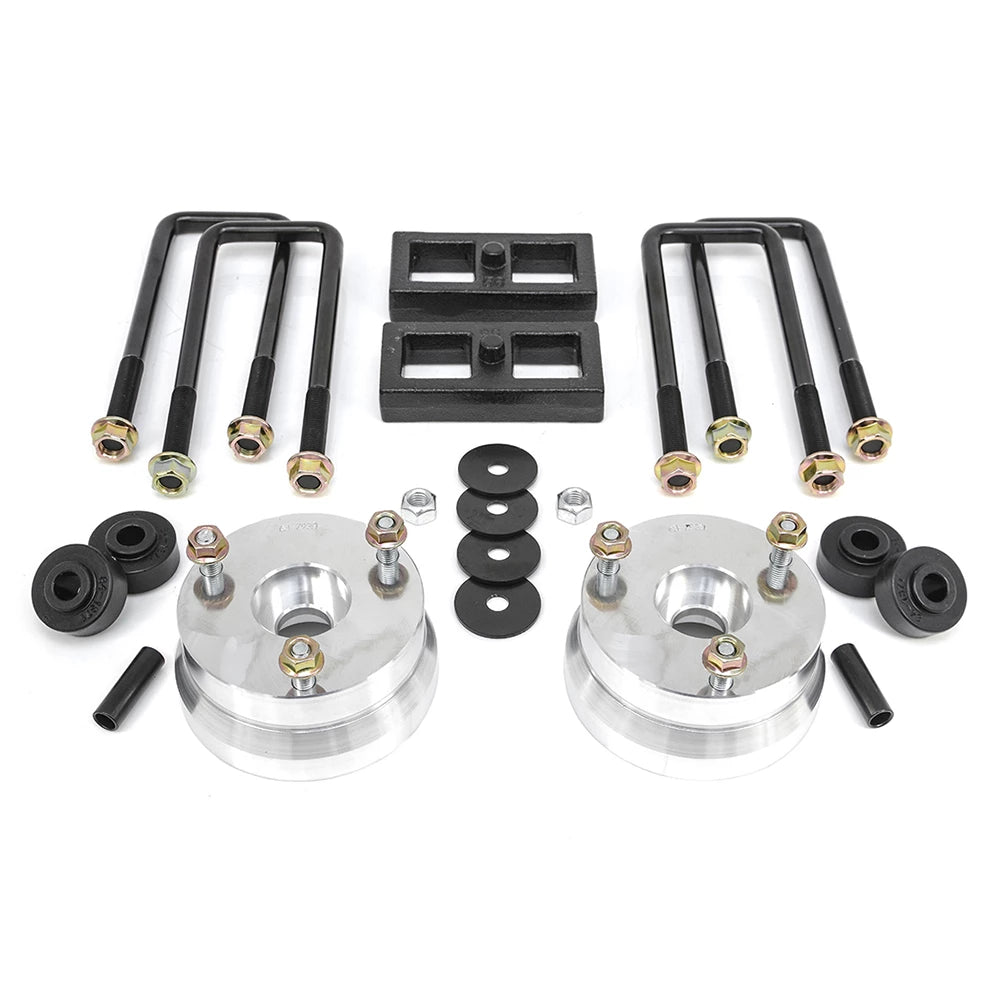

Kit Includes

• Two strut top replacements
• Eight strut top bushings
• Eight strut top laser-cut washers
• Four strut top crush sleeves
• Two strut top C-lock nuts
• Six M10 flange nuts
• Two rear blocks with longer U-bolts

Tire Fitment

Common combinations: 18x9 +18 with 285/60R18, 18x9 +30 with 275/65R18, 20x9 +18 with 275/55R20, 20x9 +30 with 285/55R20 (front crash bars can be loosened and adjusted forward for clearance).

Notes

Estimated install time approximately 4.7 hours.
