ReadyLift - 2.5" SST Lift Kit - 2017-2020 Ford F-150 Raptor - 69-2755

ReadyLIFT billet-aluminum 2.5" front SST Lift Kit developed exclusively for the 2017-2020 Ford F-150 Raptor, bolting onto the factory internal-bypass coil-overs.

ReadyLIFT's 69-2755 is a billet-aluminum 2.5" SST lift kit designed exclusively for the 2017-2020 Ford F-150 Raptor. It uses CNC-machined 6061-T6 billet top-hat coil-over extensions plus a machined billet spring preload spacer to generate 2.5" of front lift without exceeding the factory droop and compression limits, bolting directly onto the factory internal-bypass coil-overs. It also includes Ford-specific 4" tall OEM-style cast iron rear lift blocks and control arm bump stops for a factory-quality ride with an aggressive stance.

Fits: 2017-2020 Ford F-150 Raptor (4WD). Not tested on Shelby Raptor applications.

Features

• 2.5" front lift with 4" rear lift blocks
• CNC-machined 6061-T6 billet aluminum construction
• Top-hat coil-over extensions with machined billet spring preload spacers
• Bolts onto factory internal-bypass coil-overs; retains factory travel specs
• Includes 4" tall rear lift blocks
• Control arm bump stops limit over-droop

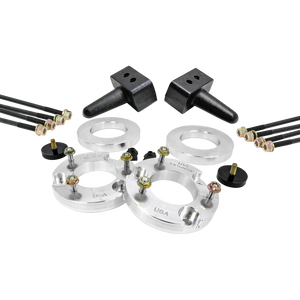

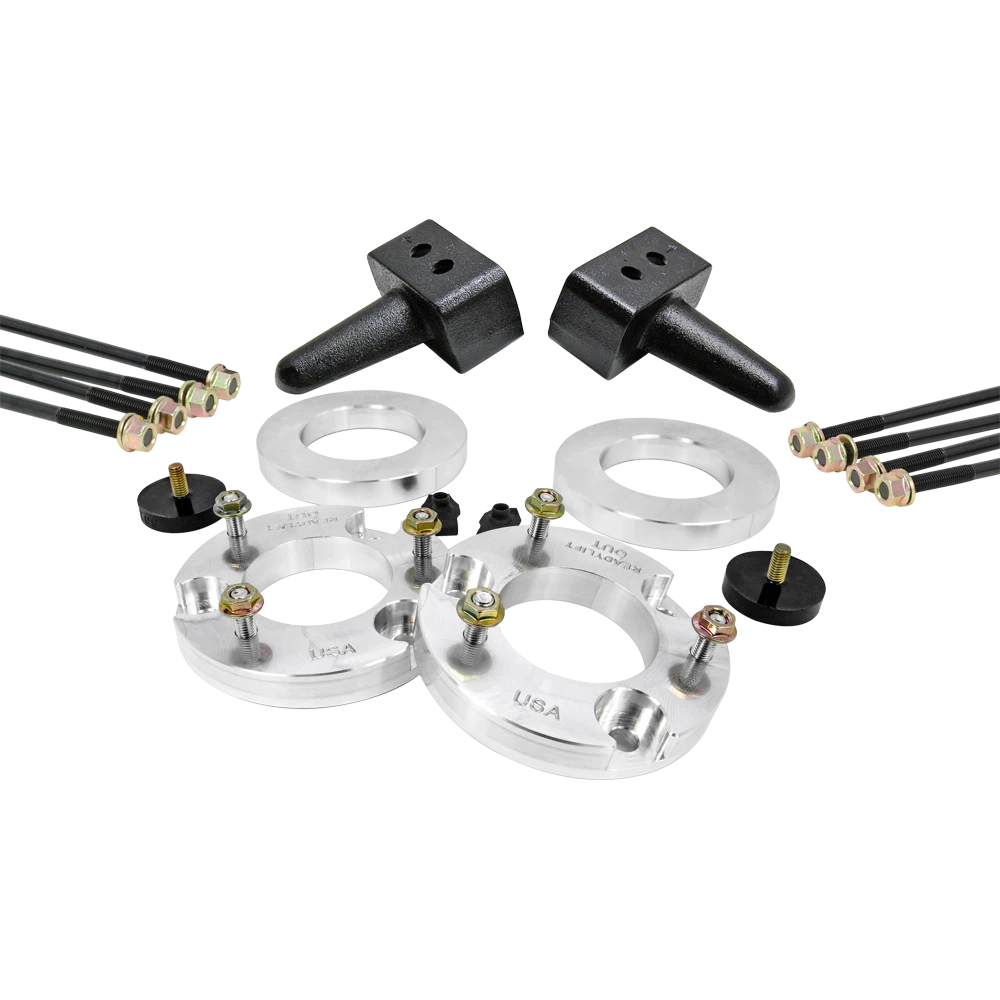

Kit Includes

• Two CNC-machined billet top-hat coil-over extensions
• Two machined billet spring preload spacers
• Two OEM-style cast iron 4" tall rear lift blocks
• Control arm bump stops
• All necessary hardware

Notes

Developed exclusively for the 2017-2020 F-150 Raptor; not tested on Shelby Raptor. Estimated install time approximately 4 hours.
