ReadyLift - 3.5" SST Lift Kit - 2011-2016 Ford Super Duty (4WD 2-Piece Driveshaft) - 69-2531

ReadyLIFT 3.5" front / up to 3" rear SST Lift Kit for 2011-2016 Ford Super Duty F-250/F-350/F-450 4WD diesel trucks with a two-piece driveshaft, clearing up to a 37" tire.

ReadyLIFT's 69-2531 SST Lift Kit is engineered for 2011-2016 Ford Super Duty diesel trucks with a two-piece drive shaft, providing front and rear lift while allowing a wheel/tire combination up to 37" and keeping the smooth OEM ride. It uses 3.5" powder-coated steel front coil spring spacers with sound isolators, radius arm drop brackets, a track bar relocation bracket, a carrier bearing spacer, and OEM-style 5.0" rear lift blocks for a mild lift that retains factory drivability.

Fits: 2011-2016 Ford Super Duty F-250 / F-350 / F-450 4WD diesel trucks with a two-piece drive shaft. One-piece driveshaft trucks use 69-2538. Does not fit the 6.2L gasoline engine. Tow Package vehicles may require longer U-bolts or removal of the top overload springs.

Features

• 3.5" front / up to 3.0" rear lift
• 3.5" powder-coated steel front coil spring spacers with poly sound isolators
• Radius arm drop brackets and front sway bar frame mount spacers
• Front track bar relocation bracket
• Carrier bearing spacer for two-piece driveshaft
• OEM-style 5.0" rear lift blocks
• Maintains factory ride; guaranteed for life against manufacturing defects

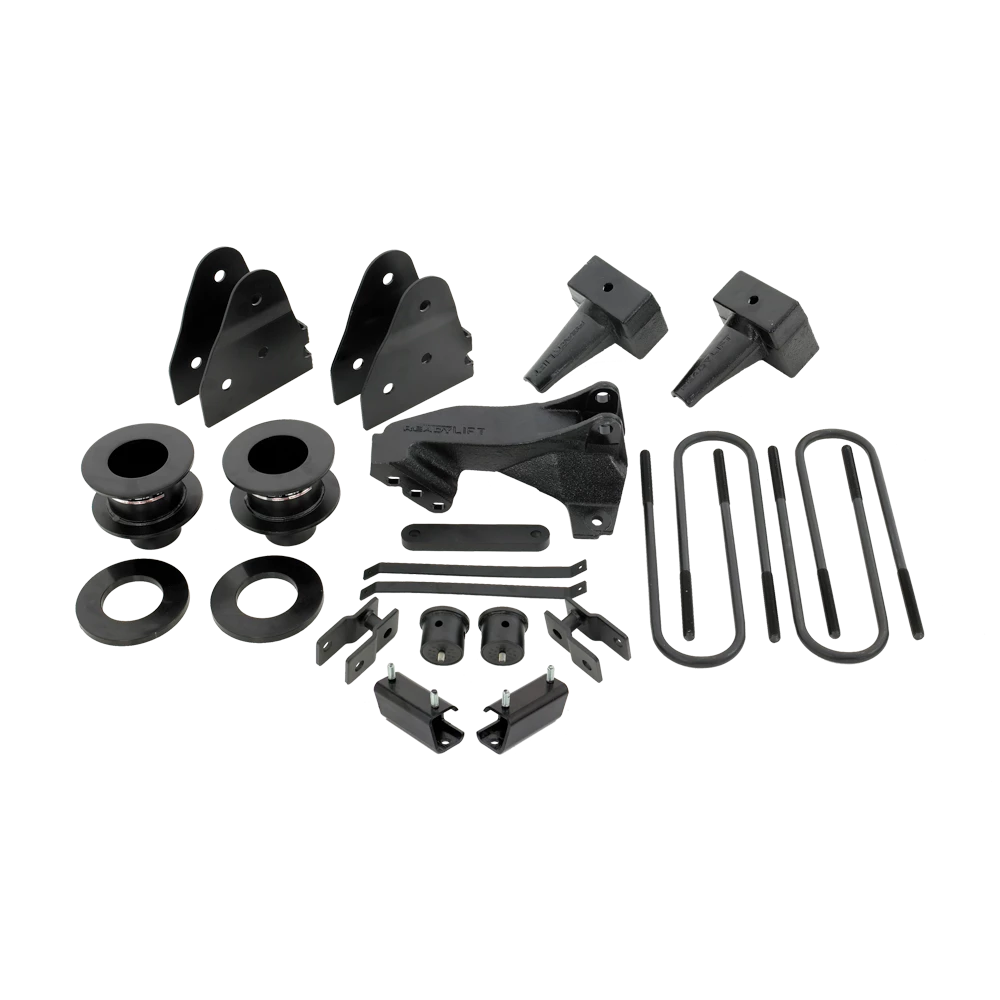

Kit Includes

• Two coil spring spacers with poly sound isolators
• Two front shock extensions
• Radius arm drop brackets
• Two front sway bar mount spacers
• Front track bar relocation bracket
• Two OEM-style rear lift blocks with longer U-bolts and hardware
• Two bump stop extensions
• Extended-length front brake line brackets

Tire Fitment

Up to 37" diameter; 37x12.50 with no rub on a 9" wide wheel with 0 offset. By wheel size: 18" - 37X12.5R18, 20" - 37X12.5R20, 22" - 325/60R22.

Notes

Two-piece driveshaft and diesel engine only. Rear blocks are not designed for air spring / load-leveling kits that attach to the bump stop tangs. Estimated install time approximately 6 hours.
