ReadyLift - 3.5" SST Lift Kit - 2023-2026 Ford Super Duty (4WD) - 69-23350

ReadyLIFT 3.5" SST Lift Kit for the 2023-2026 Ford Super Duty F-250/F-350 4WD (non-Tremor), clearing up to 37" tires while keeping the OEM ride.

ReadyLIFT's 3.5" SST Lift Kit is engineered for the Ford F-250/F-350 Super Duty 4WD and allows wheel/tire combinations up to 37" while keeping the smooth OEM ride, drivability, and off-road performance. It retains the factory springs and adds heavy-duty ReadyLIFT coil spring spacers with isolators, 4" tall OEM-style cast rear blocks with integrated bump stop landings, an OEM-style track bar drop bracket, and a pair of first-to-market radius arm drop brackets. It is a bolt-on install with no frame modifications, cutting, or welding.

Fits: 2023-2026 Ford Super Duty F-250 / F-350 4WD. Does not fit dually applications, Tremor models (use 69-23250 or 69-23251), or trucks with overload springs. Trucks with the Onboard Scale option require Auto-Leveling Headlight Bracket PN 67-23410.

Features

• 3.5" of front lift
• First-to-market radius arm drop brackets maintain proper axle geometry
• Retains factory springs; adds heavy-duty coil spring spacers with isolators
• OEM-style 4" cast rear blocks with integrated bump stop landings
• OE-style track bar relocation bracket, sway bar drop brackets, and bump stop extensions
• No cutting or welding; bolt-on with no frame modifications

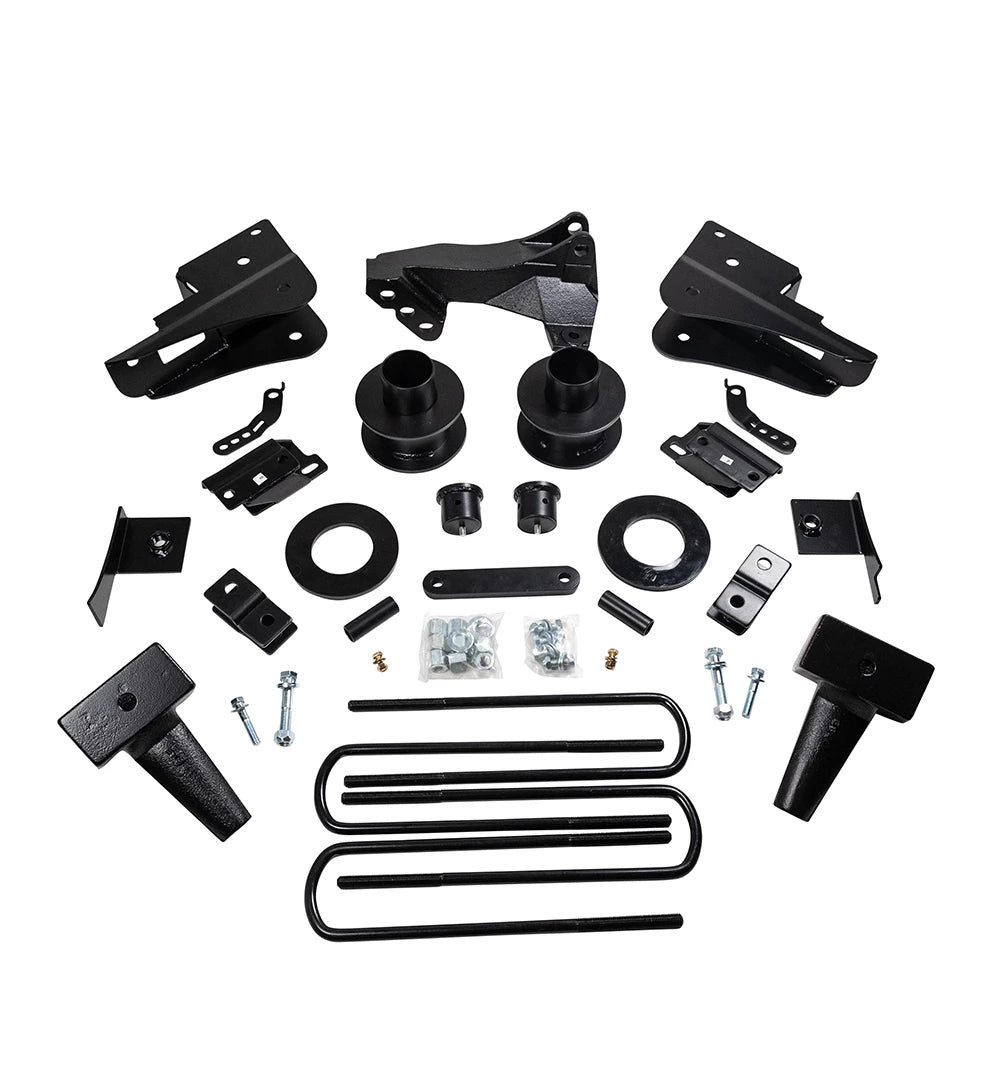

Kit Includes

• Two coil spring spacers with poly sound isolators
• Two front shock extensions
• Radius arm drop brackets
• Two front sway bar mount spacers
• Front track bar relocation bracket
• Two OEM-style cast rear lift blocks with longer U-bolts and hardware
• Two bump stop extensions
• Extended-length front brake line brackets

Tire Fitment

Up to 37"; recommended 37x12.50 on a 17" or larger, 9" wide wheel with +18 offset / 6" backspacing (minor trimming of the front valance may be necessary).

Notes

Estimated install time approximately 6 hours (excluding alignment and wheel/tire). Onboard Scale trucks require PN 67-23410.
