ReadyLift - 3.5" SST Lift Kit - 2015-2020 Ford F-150 - 69-2300

ReadyLIFT 3.5" front / 2" rear SST Lift Kit for the 2015-2020 Ford F-150 2WD/4WD, clearing up to 35" tires while keeping factory ride quality.

The ReadyLIFT 69-2300 3.5" SST Lift Kit delivers a popular lifted stance on the 2015-2020 F-150. It centers on DOM tubular steel upper control arms with a 14-degree ball joint cup for proper geometry and alignment, ReadyLIFT HD ball joints, and TCT self-lubricating pivot bushings. Front lift comes from CNC-machined billet aerospace-grade aluminum offset top-mount spacers plus a billet preload/droop-limiter spacer that protects CV axles on 4WD models; the rear uses OEM-style 3" cast lift blocks, with a carrier bearing spacer for two-piece driveshaft trucks.

Fits: 2015-2020 Ford F-150 2WD and 4WD (1- and 2-piece driveshaft). Not for use on trucks that are factory pre-lifted/leveled or that have the off-road package.

Features

• 3.5" front / 2" rear lift
• DOM tubular steel upper control arms with 14-degree ball joint cup and ReadyLIFT HD ball joints
• TCT one-time-grease self-lubricating pivot bushings
• CNC-machined billet aerospace-grade aluminum offset top-mount lift spacers
• Billet preload spacer doubles as a droop limiter to protect 4WD CV axles
• OEM-style 3" cast rear lift blocks with built-in bump stop landing pads
• No cutting or welding; maintains factory ride; Limited Lifetime Warranty

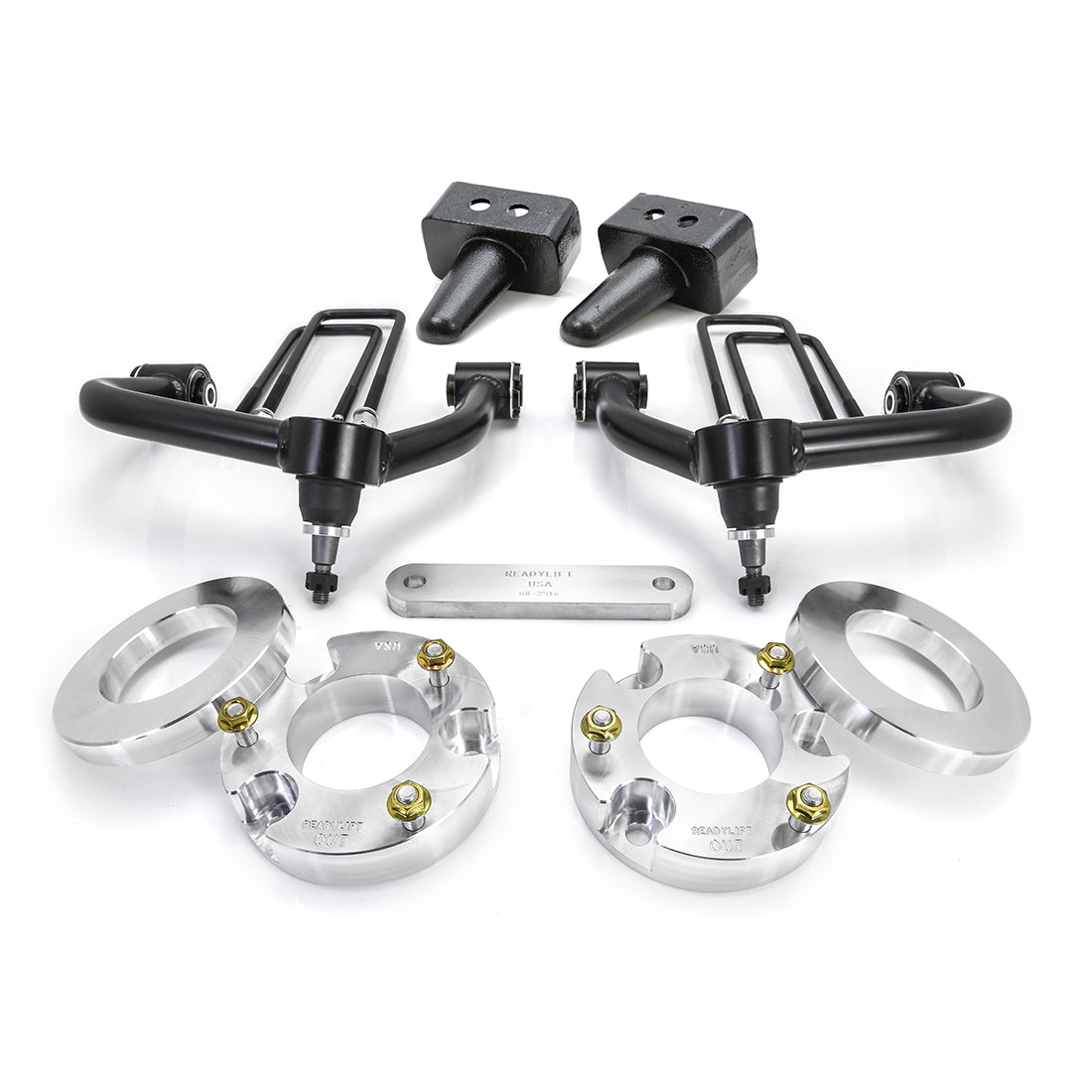

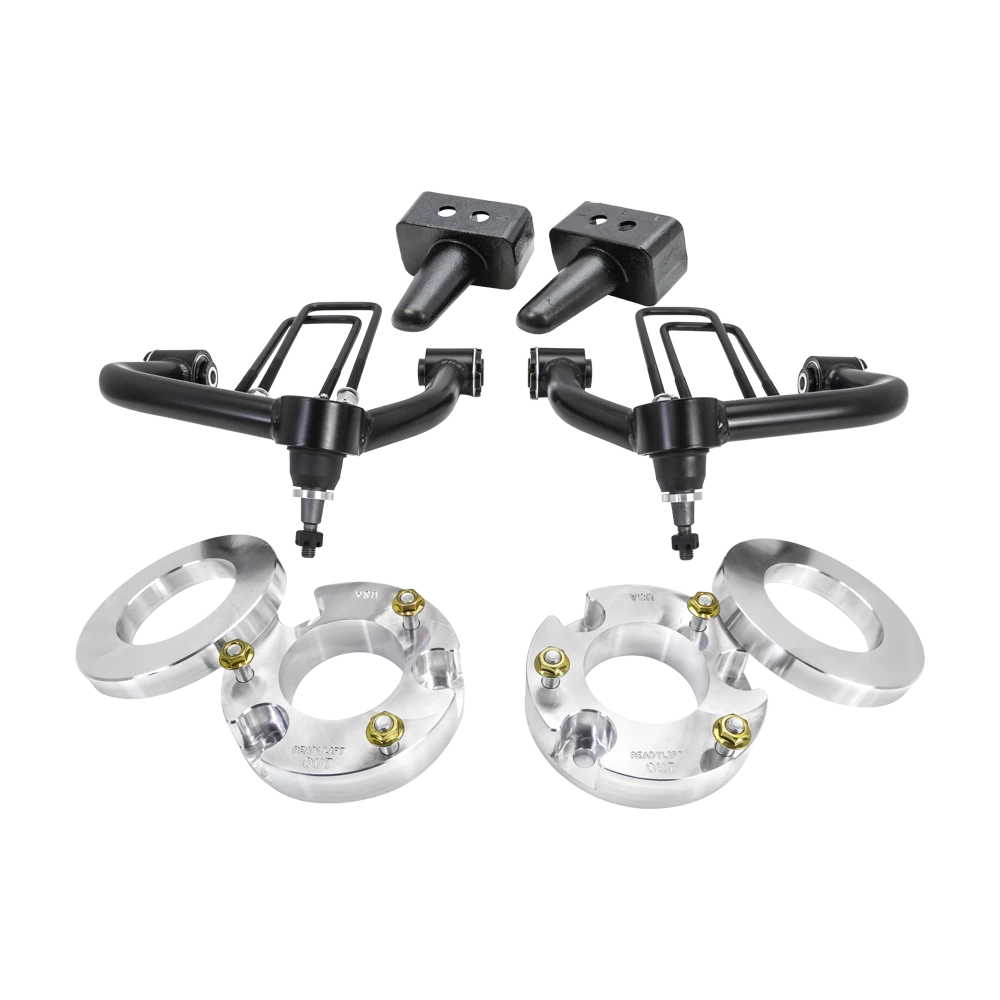

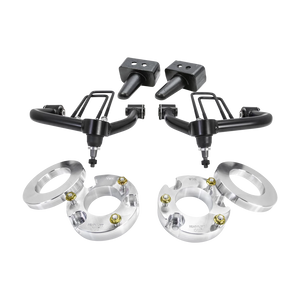

Kit Includes

• Two DOM tubular steel upper control arms with HD ball joints and TCT bushings
• Two CNC billet aluminum offset top-mount strut extensions
• Two billet aluminum strut spring preload spacers
• Two 3" rear lift blocks with longer U-bolts and hardware
• Carrier bearing spacer for two-piece driveshaft trucks

Tire Fitment

Up to 35x12.50 on a 9" wide wheel with +12 offset (minor trimming may be needed). Recommended tires: 285/50-R22, 285/65-R20, 285/75-R18.

Notes

Estimated install time approximately 6 hours. Limited Lifetime Warranty. 2WD trucks may need the 1.5" block kit (PN 66-2051) to reduce rake.
