ReadyLift - 4.5"F/2.5"R SST Lift Kit - 2019-2022 Ram 2500 (4WD) - 69-19450

4.5" front / 2.5" rear SST lift kit for the 2019-2022 Ram 2500 HD 4WD (new body, diesel).

A maximum bolt-on SST lift for the new-body 2500 HD, delivering 4.5" front and 2.5" rear with heavy-duty fabricated steel coil spring spacers. It includes front radius arm drop brackets and both front and rear track bar relocation brackets to preserve suspension geometry and factory ride, with clearance for up to 37" tires and conservative negative-offset wheels. Supersedes the discontinued 69-1945.

Fits: 2019-2022 Ram 2500 HD 4WD (new body) with rear coil springs. Diesel engine only. Not compatible with Auto-Ride, Power Wagon, or snow-prep/ambulance packages.

Features

• 4.5" of front lift and 2.5" of rear lift
• Heavy-duty fabricated steel coil spring spacers
• Front and rear track bar relocation brackets
• Accepts up to 37" tires with little to no trimming

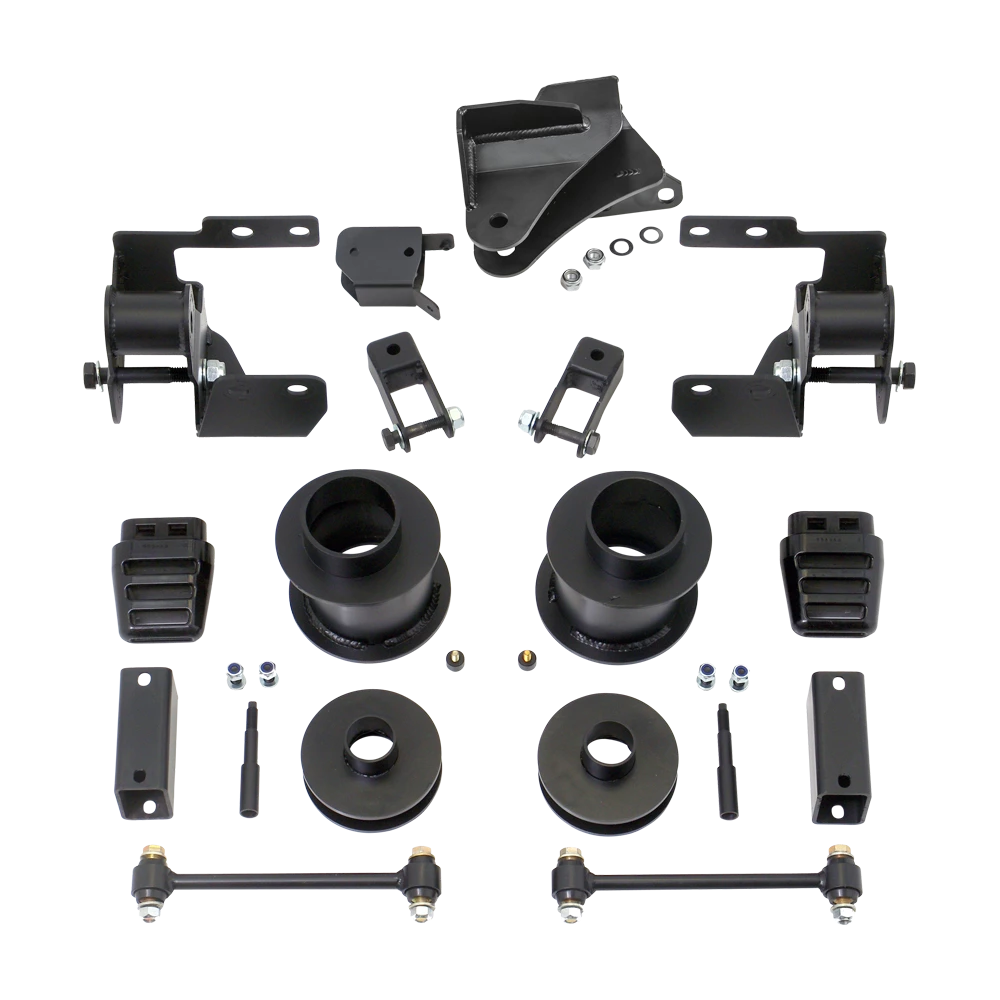

Kit Includes

• Front and rear coil spring spacers
• Front radius arm drop brackets
• Front and rear shock extensions and bump stop extensions
• Longer sway bar end links and front sway bar frame side spacers

Tire Fitment

Fits tires up to 37" in diameter and accepts conservative negative-offset wheels.

Notes

Diesel engine only. Not compatible with gas engines, Auto-Ride, Power Wagon, or snow-prep/ambulance packages. Single-cab configuration has not been validated by ReadyLIFT.
