ReadyLift - 4.5"F/2"R SST Lift Kit - 2013-2018 Ram 3500 (4WD) - 69-1342

4.5" front / 2" rear SST lift kit for the 2013-2018 Ram 3500 4WD (diesel).

Designed for the new-style radius-arm suspension with a leaf-spring rear, this SST kit lifts the 3500 4.5" up front with clearance for up to 37" tires. Durable black e-coated steel front coil spacers retain the factory front coil spring, and 2" OEM-style rear lift blocks add rake.

Fits: 2013-2018 Ram 3500 4WD with new radius-arm suspension and leaf-spring rear (excludes New Body Rams). Diesel engine (gas engines will sit slightly nose-high). Not compatible with Auto-Ride or Power Wagon.

Features

• 4.5" of front lift and 2.0" of rear lift
• Heavy-duty fabricated steel coil spring spacers
• Radius arm drop and front track bar brackets preserve geometry

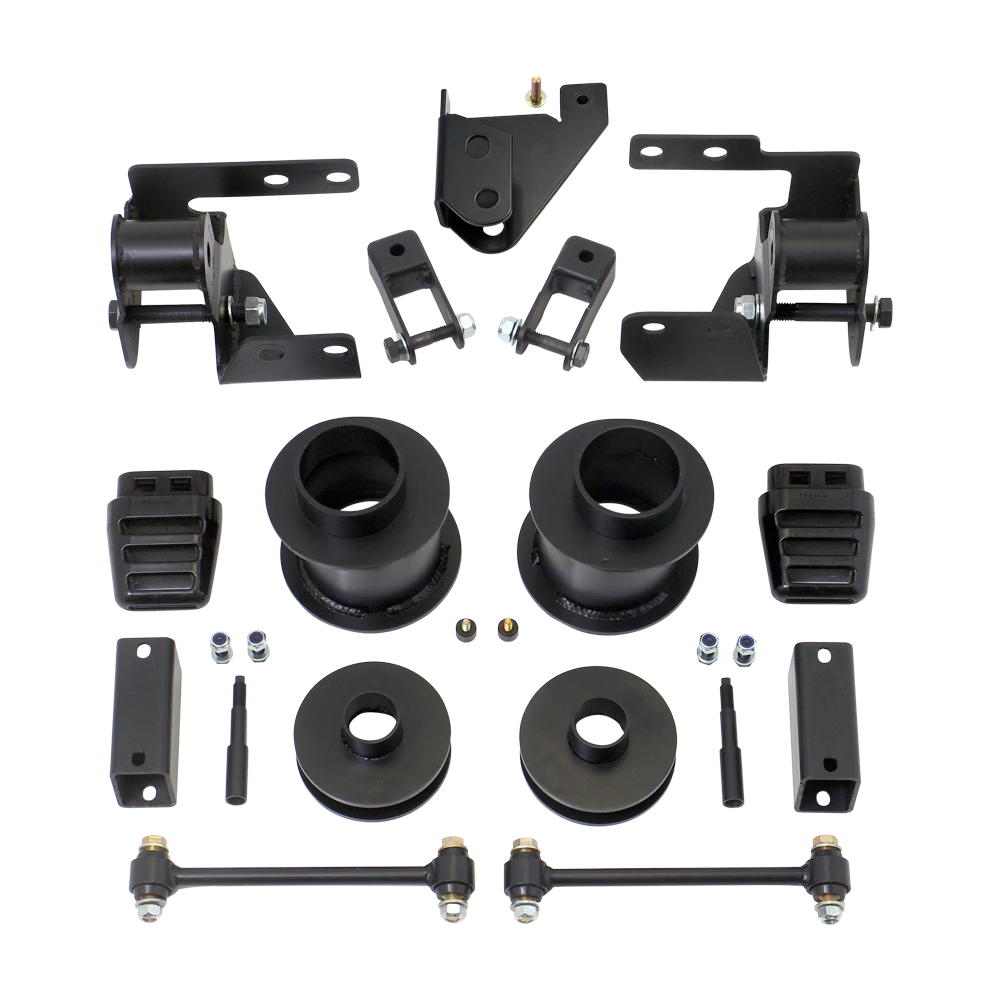

Kit Includes

• Two front coil spring spacers
• Two 2" OEM-style rear lift blocks
• Two radius arm drop brackets and one front track bar bracket
• Two front shock extensions and two extended front bump stops
• All necessary hardware

Tire Fitment

Fits tires up to 37" in diameter (37x12.50 with no rub on a 9" wide wheel at 0 offset).

Notes

Diesel engine trucks (gas engines will sit slightly nose-high). Excludes New Body Rams. Not compatible with Auto-Ride or Power Wagon. Single-cab configuration has not been validated by ReadyLIFT. Estimated install time is about 4.8 hours (excluding alignment).
