ReadyLift - 4.5"F/2.5"R SST Lift Kit - 2014-2018 Ram 2500 (4WD) - 69-1242

4.5" front / 2.5" rear SST lift kit for the 2014-2018 Ram 2500 4WD (diesel).

A maximum bolt-on SST lift for the new radius-arm 2500, delivering 4.5" front and 2.5" rear with heavy-duty fabricated steel coil spring spacers. It includes front radius arm drop brackets and a front track bar relocation bracket to preserve suspension geometry and factory ride. Suitable for negative-offset wheels and up to 37" tires.

Fits: 2014-2018 Ram 2500 4WD with new radius-arm suspension and rear coil springs. Diesel engine only. Not compatible with Auto-Ride, Power Wagon, or snow-prep/ambulance packages.

Features

• 4.5" of front lift and 2.5" of rear lift
• Heavy-duty fabricated steel coil spring spacers
• Corrected suspension geometry with radius arm drop and track bar brackets
• No permanent modifications required

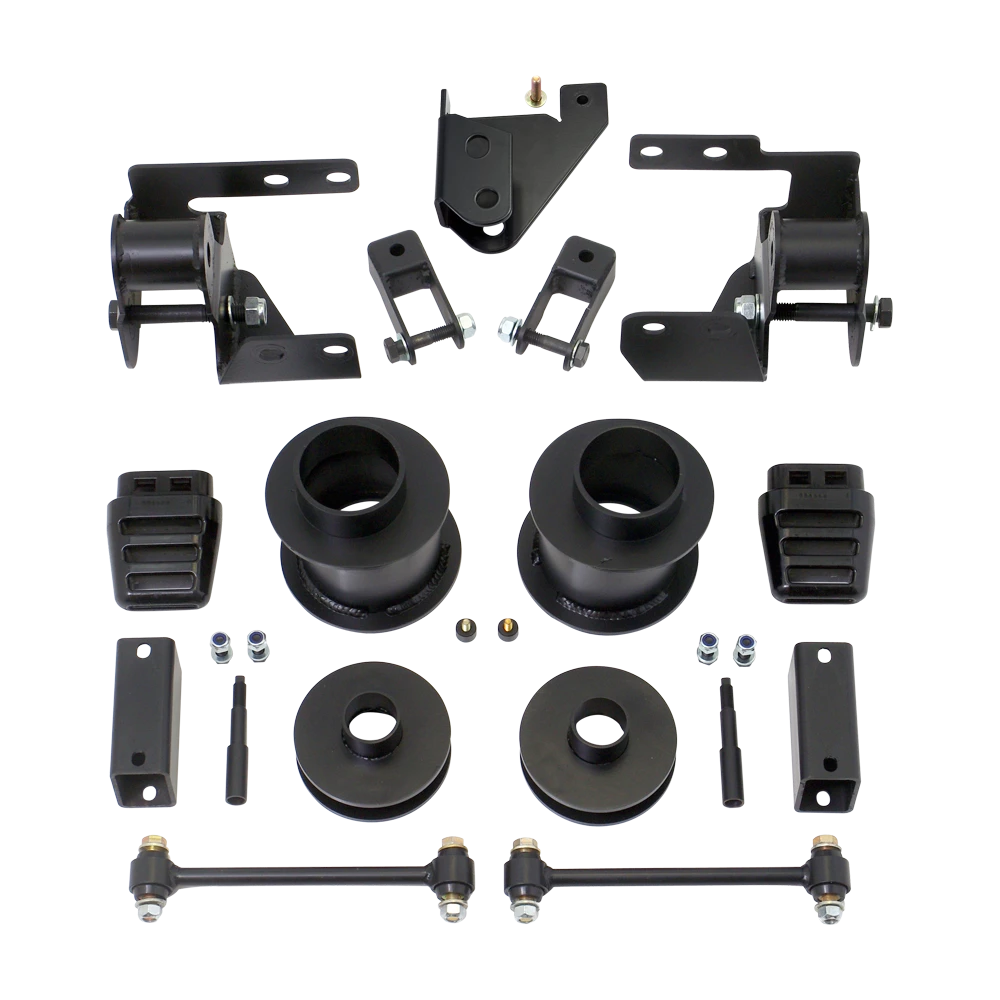

Kit Includes

• Two front and two rear coil spring spacers
• Two radius arm drop brackets and one front track bar bracket
• Two front shock extensions and two rear shock stem extensions
• Two extended front bump stops and two front sway bar mount spacers
• All necessary hardware

Tire Fitment

Fits tires up to 37" in diameter (37x12.50 with no rub on a 9" wide wheel at 0 offset).

Notes

Diesel engine trucks only. Not compatible with Auto-Ride, Power Wagon, or snow-prep/ambulance packages. Single-cab configuration has not been validated by ReadyLIFT. Estimated install time is about 5.5 hours (excluding alignment).
