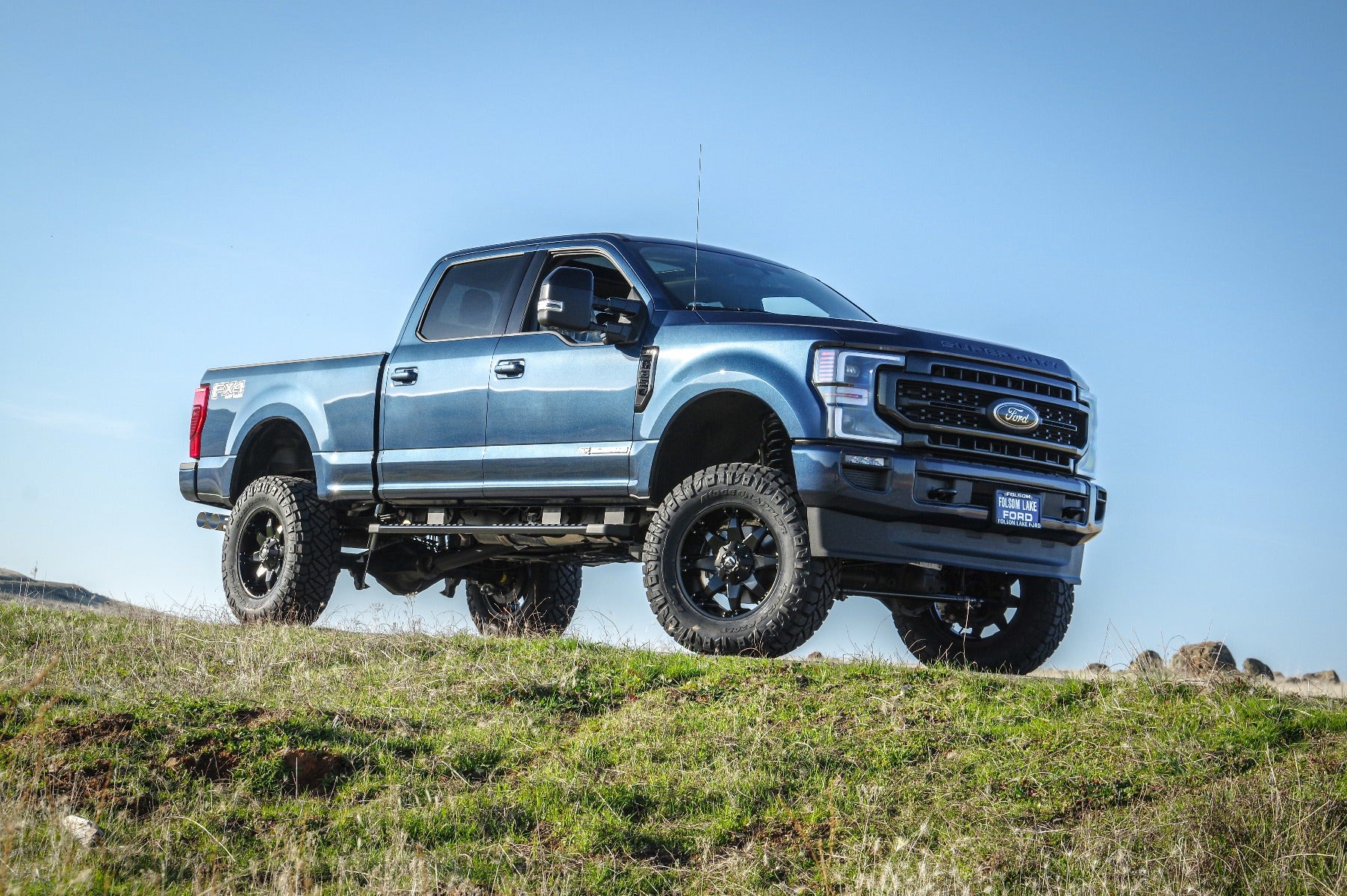

7" coil spring lift kit with Falcon 1.1 shocks for the 2017-2022 Ford Super Duty.
A big-lift coil spring system with four Falcon 1.1 Monotube shocks, a cast front track bar relocation bracket, heavy-duty radius arm drop brackets, and rear fabricated blocks with integrated bump stop tangs. Clears up to 38" tires.
Fits: 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke diesel, single rear wheel. Not recommended for 2WD or gas trucks.
Features
- 7" of front lift on 2020-2022 (6.5" on 2017-2019)
- (4) Falcon 1.1 Monotube shocks
- Cast front track bar relocation bracket
- Heavy-duty radius arm drop brackets
- Clears up to 38" tall tires

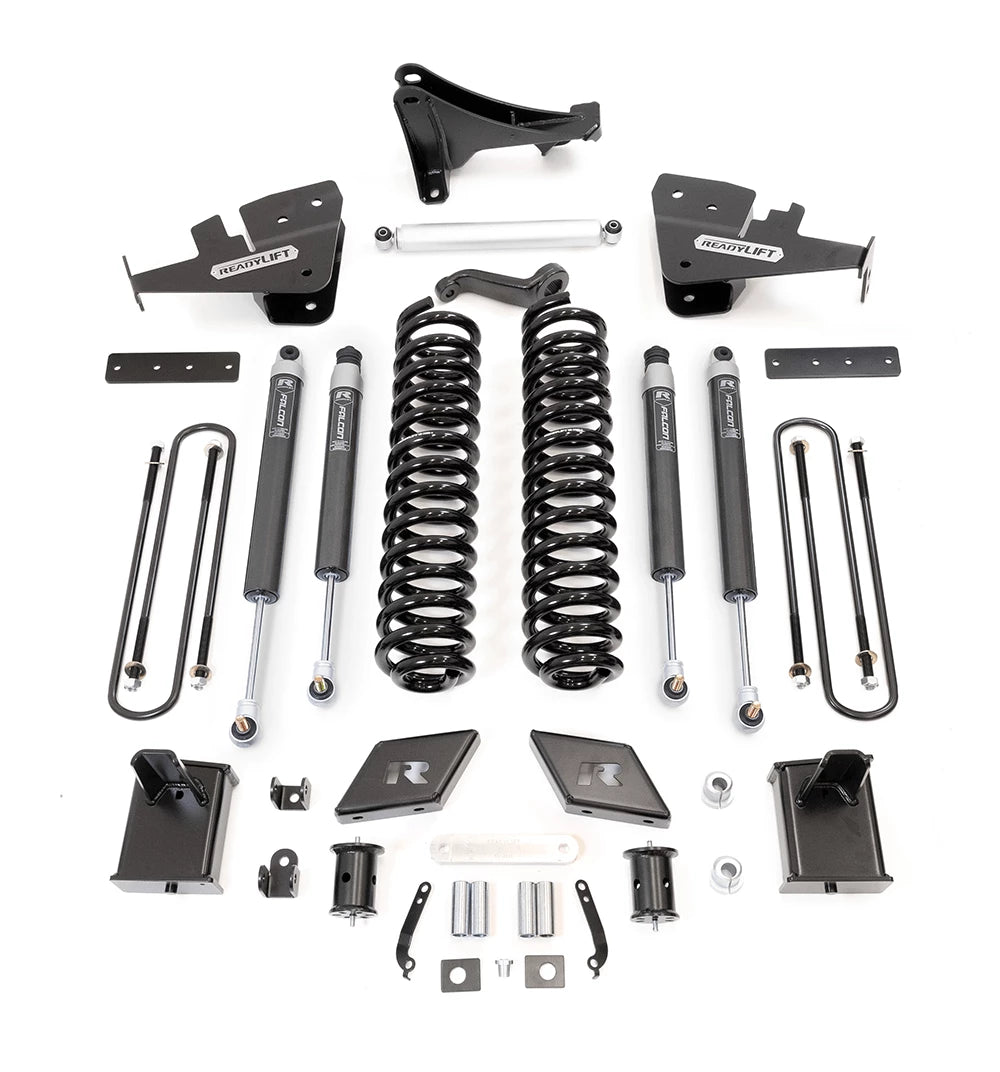

Kit Includes
- Front lift coil springs
- (4) Falcon 1.1 Monotube shocks
- Cast front track bar relocation bracket
- Radius arm drop brackets
- Rear fabricated blocks with bump stop tangs
- Brake line, bump stop, and sway bar extension brackets
Tire Fitment
Up to 38" tall tires on 9" wide wheels with 0 offset.
Notes
2020-2022 trucks gain 7"; 2017-2019 trucks gain 6.5". Diesel single-rear-wheel trucks only; not for 2WD or gas. F250 without Camper Spring Package (F350 or F250 with camper springs: see instructions). Tremor versions will not gain the full 7".
