4" coil spring lift kit with Falcon 1.1 shocks and radius arm drops for the 2017-2022 Ford Super Duty.
A 4" coil spring lift with four Falcon 1.1 Monotube shocks, a front track bar relocation bracket, radius arm drop brackets, and rear fabricated blocks. Considered the sweet spot for Super Duty lift height and tire size.
Fits: 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke diesel, single rear wheel. Not recommended for 2WD or gas trucks.
Features

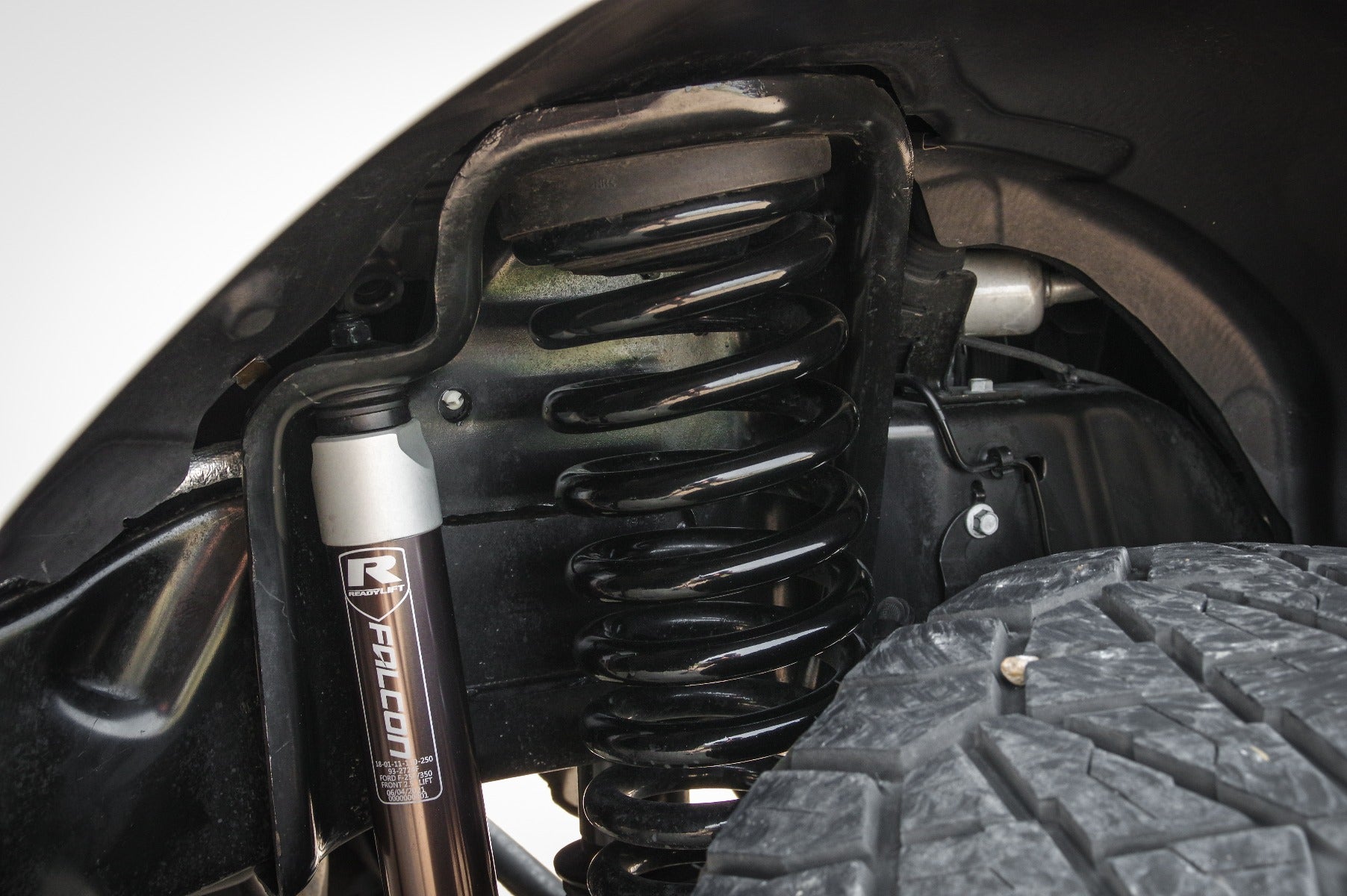

- 4" coil spring lift
- (4) Falcon 1.1 Monotube shocks
- Radius arm drop brackets
- Front track bar relocation bracket
- Bolt-on; no structural modifications required

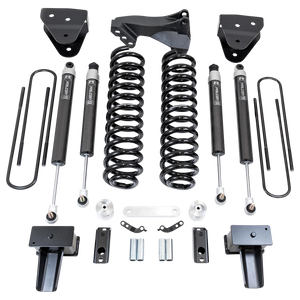

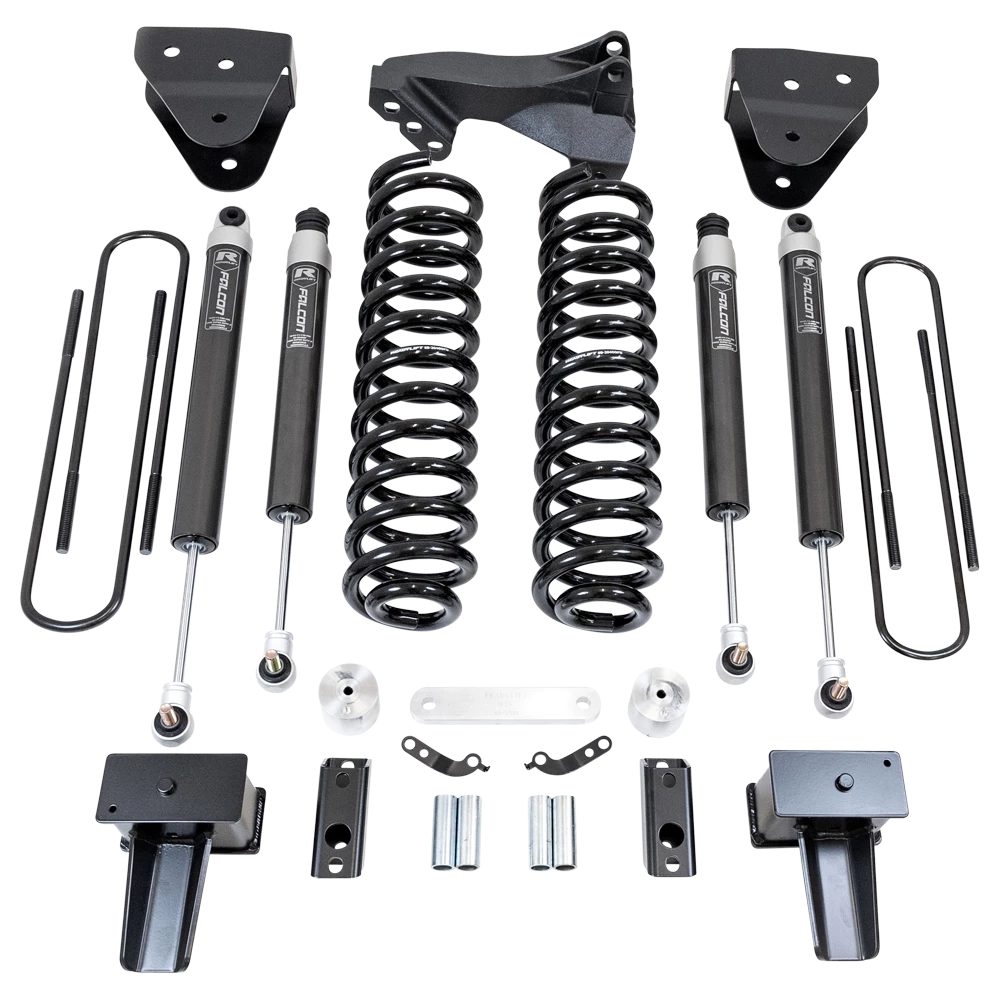

Kit Includes
- 4" front lift coil springs
- (4) Falcon 1.1 Monotube shocks
- Front track bar relocation bracket
- Radius arm drop brackets
- Rear fabricated blocks
- Brake line, bump stop, and sway bar extension brackets
Tire Fitment

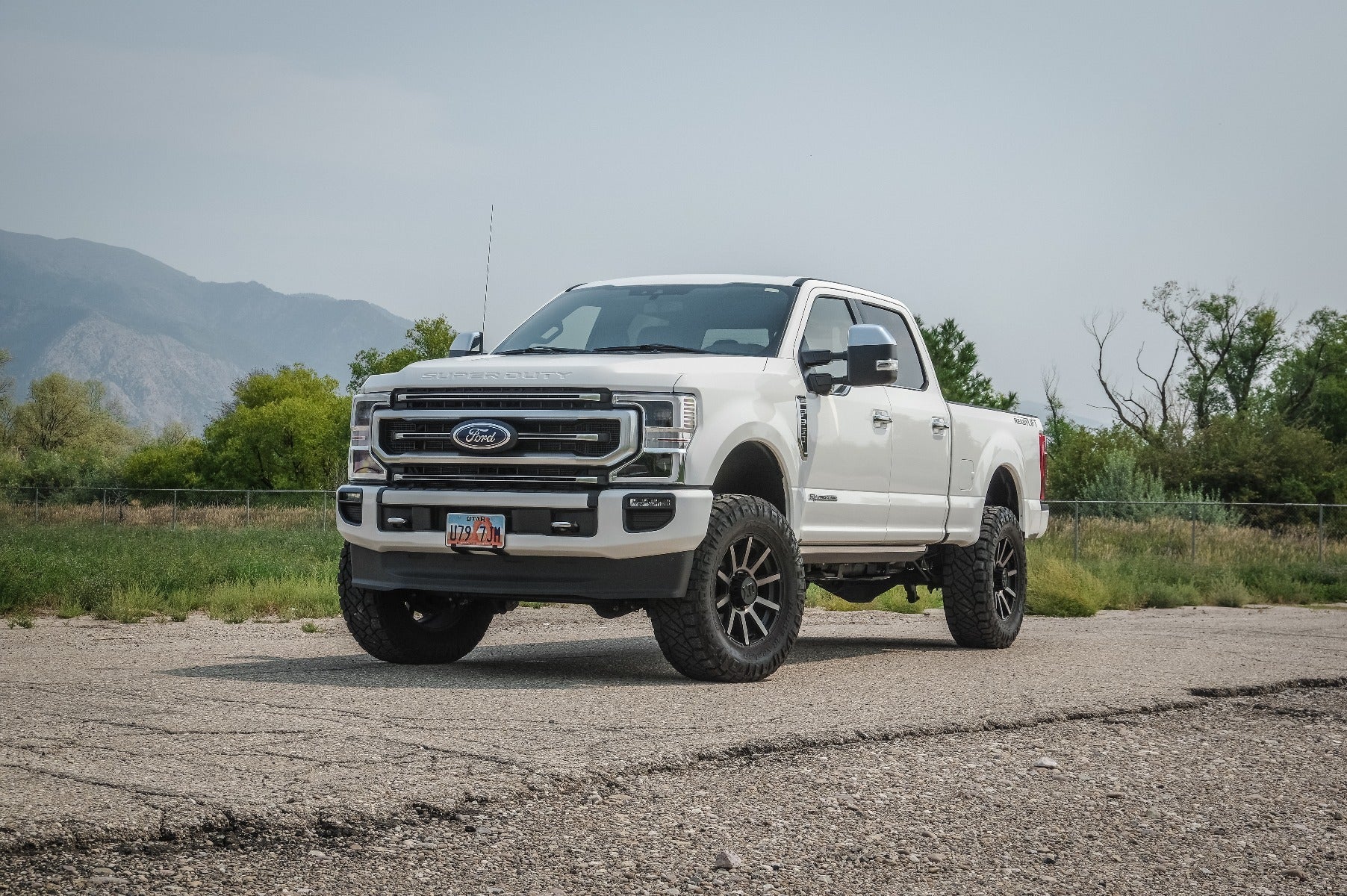

Up to 37" tall tires on 9" wide wheels with 0 offset.
Notes
Diesel single-rear-wheel trucks only; not recommended for 2WD or gas. 2017-2019 models may sit slightly lower. Compatible with F350 and F250 Camper Spring package. A U-bolt identification guide is available on readylift.com.
