ReadyLift - 6" Lift Kit w/ Bilstein Shocks & Driveline Indexing - 2019-2024 Ram 3500 (4WD Diesel) - 49-19620

6" lift kit with Bilstein 5100 shocks and the Driveline Indexing System for the 2019-2024 Ram 3500 HD High Output.

A 6" front lift with heavy-duty coil springs, 5" rear taper blocks, and four Bilstein 5100 shocks. Includes the Driveline Indexing System (DIS) with a CNC-machined billet aluminum transfer case clocking ring and new transmission crossmember to correct driveline angle and reduce vibration for the 3500 HD High Output driveline.

Fits: 2019-2024 Ram 3500 4WD HD diesel, High Output motor with Aisin transmission only.

Features

• 6" front lift springs with 5" rear taper blocks
• (4) Bilstein 5100 series shocks
• Driveline Indexing System (transfer case clocking ring + transmission crossmember)
• Clears up to 37x13.50 on 9" wheels with -18 offset
• High Output diesel only

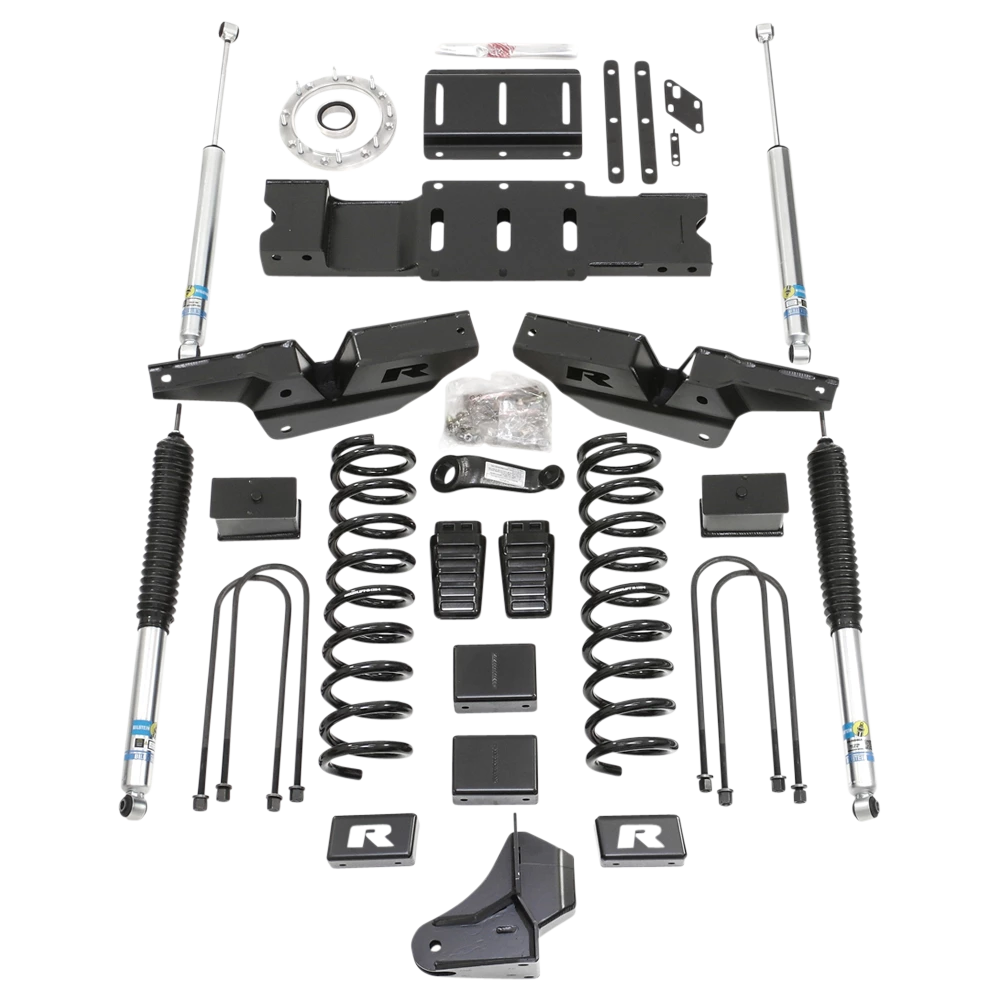

Kit Includes

• 6" front lift coil springs
• 5" rear taper blocks
• (4) Bilstein 5100 shocks
• Transfer case clocking ring
• Transmission crossmember
• Heavy-duty radius arm drop brackets
• Front and rear track bar brackets
• Dropped pitman arm
• Front/rear sway bar relocation brackets
• Bump stop extensions

Tire Fitment

Up to 37x13.50 on 9" wide wheels with -18 offset.

Notes

Only available for the Ram 3500 HD High Output motor. Not compatible with standard output diesel, HEMI gas, dually, Classic, or automatic-leveling rear air suspension models. Single cab configuration has not been validated by ReadyLIFT.
