ReadyLift - 6" Lift Kit w/ Falcon Shocks & Driveline Indexing - 2019-2024 Ram 2500 (4WD Diesel) - 49-19610

6" four-corner coil spring lift kit with Falcon 1.1 shocks and the Driveline Indexing System for the 2019-2024 Ram 2500 HD Standard Output.

A 6" lift with proprietary front and rear coil springs and four Falcon 1.1 Monotube shocks. Includes the Driveline Indexing System (DIS) with a CNC-machined billet aluminum transfer case clocking ring and new transmission crossmember to correct driveline angle and reduce vibration. Provides clearance for an aggressive 37x12.5 tire with no rubbing.

Fits: 2019-2024 Ram 2500 HD 4WD diesel, Standard Output Cummins with 68RFE transmission only.

Features

• 6" four-corner coil spring lift
• (4) Falcon 1.1 Monotube shocks
• Driveline Indexing System (transfer case clocking ring + transmission crossmember)
• Clears an aggressive 37x12.5 tire up to -18 offset
• Standard Output diesel only

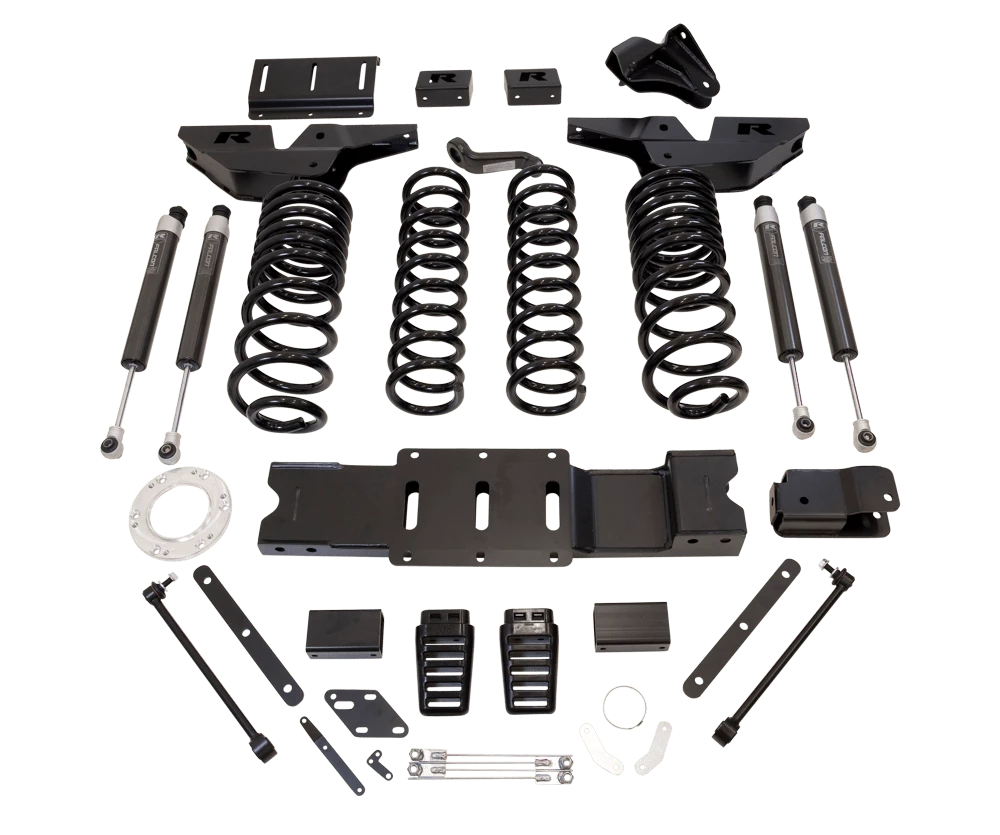

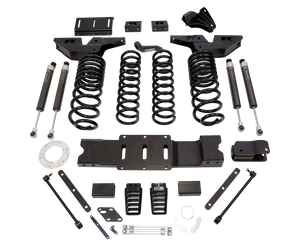

Kit Includes

• Proprietary front and rear coil springs
• (4) Falcon 1.1 Monotube shocks
• Transfer case clocking ring
• Transmission crossmember
• Heavy-duty radius arm drop brackets
• Front and rear track bar brackets
• Forged dropped pitman arm
• Front/rear sway bar relocation brackets
• Bump stop extensions

Tire Fitment

Up to 37x12.5 tires, up to -18 offset wheels.

Notes

Only available for the Ram 2500 HD Standard Output motor and 68RFE transmission. Single cab configuration has not been validated by ReadyLIFT.
