ReadyLift - 6" Lift Kit w/ Bilstein Shocks & Driveline Indexing - 2019-2024 Ram 2500 (4WD Diesel) - 49-1961

6" lift kit with Bilstein 5100 shocks and the Driveline Indexing System for the 2019-2024 Ram 2500 HD.

A 6" front / 3.5" rear lift built around heavy-duty coil springs and four Bilstein 5100 shocks. Includes the Driveline Indexing System (DIS) with a CNC-machined billet aluminum transfer case clocking ring and new transmission crossmember to correct driveline angle and reduce vibration for a smooth driving experience on or off road.

Fits: 2019-2024 Ram 2500 4WD HD diesel. Not for trucks with factory air / auto-level suspension.

Features

• 6" front / 3.5" rear lift
• (4) Bilstein 5100 series shocks
• Driveline Indexing System (transfer case clocking ring + transmission crossmember)
• Clears up to 37x13.50 on 9.5" wheels with -18 offset
• Diesel 2500 applications only

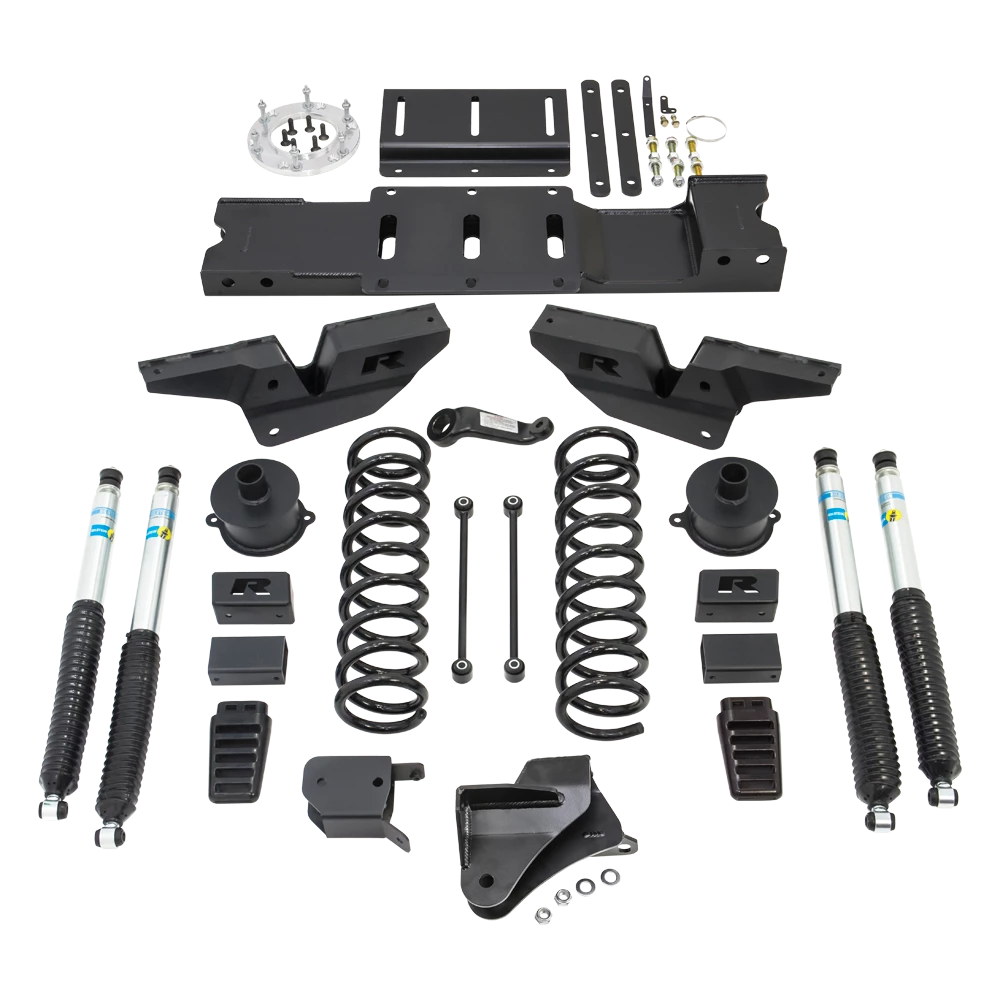

Kit Includes

• 6" front lift coil springs
• 3.5" rear coil spring spacers
• (4) Bilstein 5100 shocks
• Transfer case clocking ring
• Transmission crossmember
• Heavy-duty radius arm drop brackets
• Front and rear track bar brackets
• Dropped pitman arm
• Front/rear sway bar relocation brackets
• Bump stop extensions

Tire Fitment

Up to 37x13.50 on 9.5" wide wheels with -18 offset.

Notes

Diesel Ram 2500 only. Does not work with factory air suspension or auto-level system. Single cab configuration has not been validated by ReadyLIFT.
