ReadyLift - 2.5" Coil Spring Leveling Kit w/ Falcon 2.1 Shocks - 2017-2026 Ford Super Duty (4WD Diesel) - 46-20254

2.5" front coil spring leveling system with Falcon 2.1 Monotube shocks for the 2017-2026 Ford Super Duty.

A premium 2.5" leveling system built around precision-tuned Falcon 2.1 Monotube shocks, heavy-duty coil springs, and a full suite of supporting brackets. Falcon 2.1 fronts are paired with adjustable Tow Haul Falcon 2.1 rear shocks for controlled ride quality loaded or unloaded.

Fits: 2017-2026 Ford Super Duty F250/F350/F450 4WD diesel. 2017-2019 models achieve approximately a 2" front lift. Not recommended for Tremor editions (will not net full height).

Features

• 2.5" front lift via coil springs
• Front Falcon 2.1 Monotube shocks

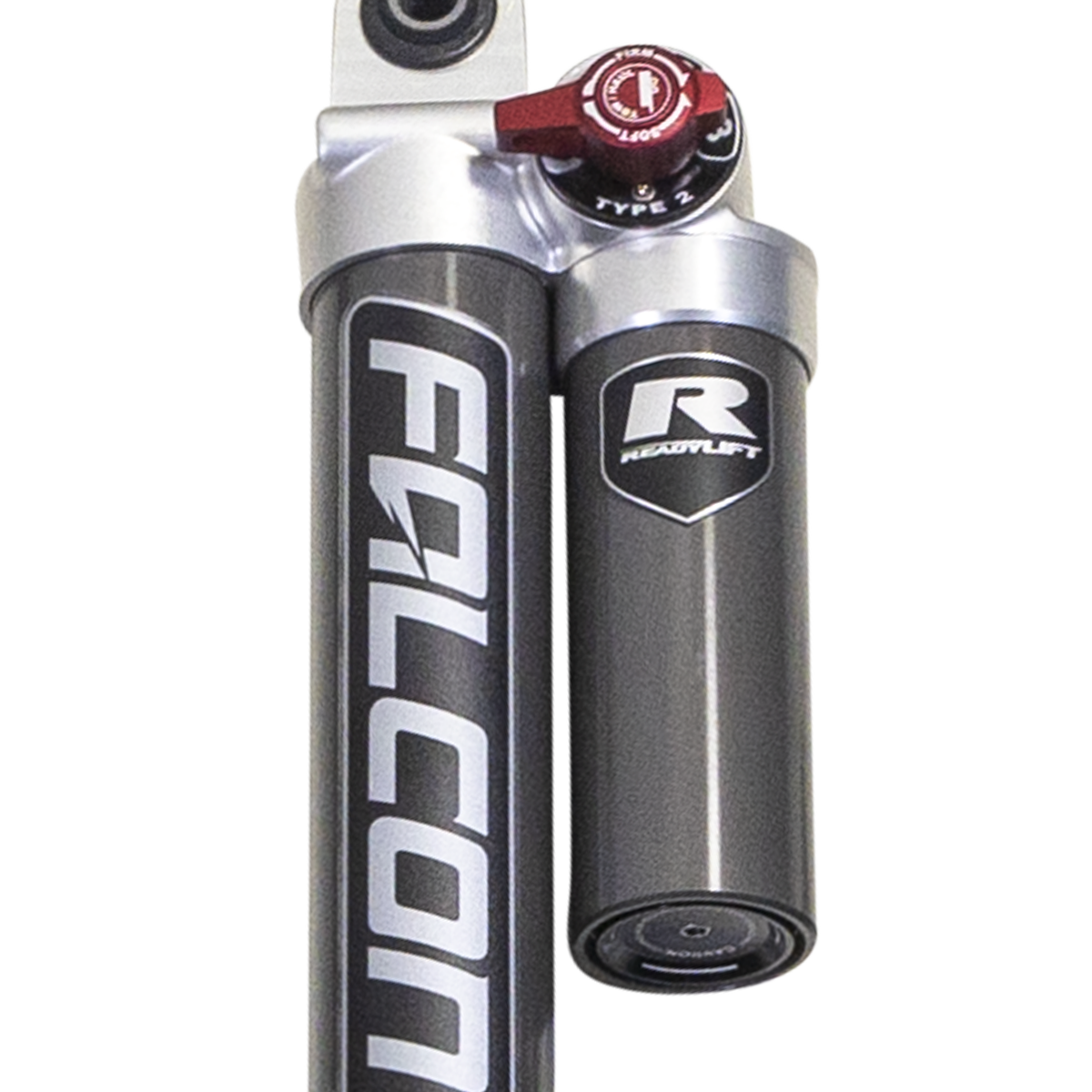

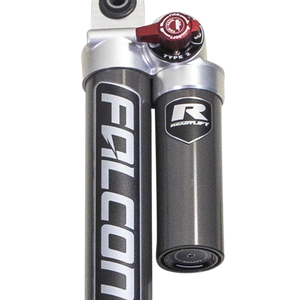

• Rear adjustable Tow Haul Falcon 2.1 Monotube shocks
• Front track bar relocation bracket
• Made in the USA; diesel 4WD only

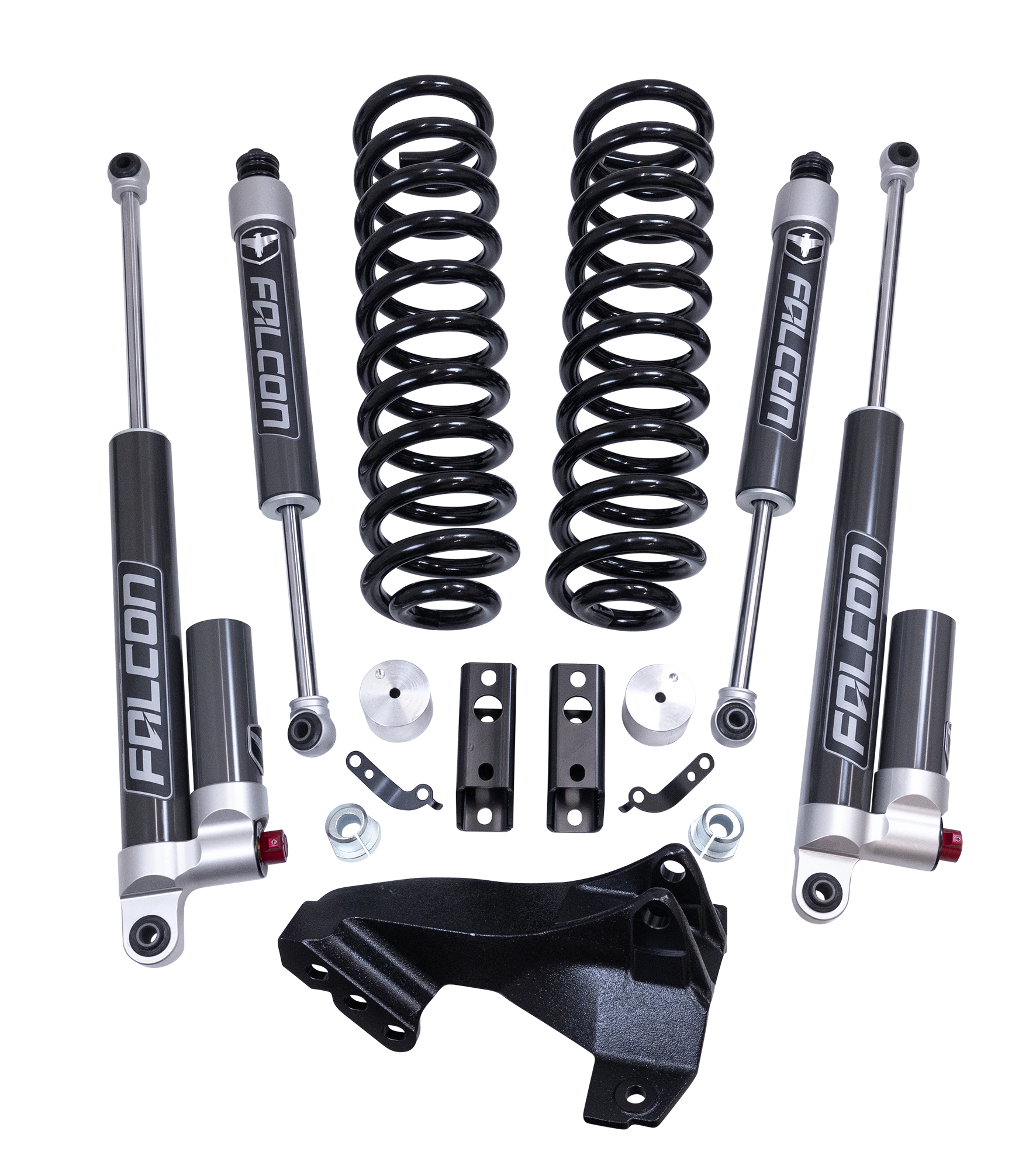

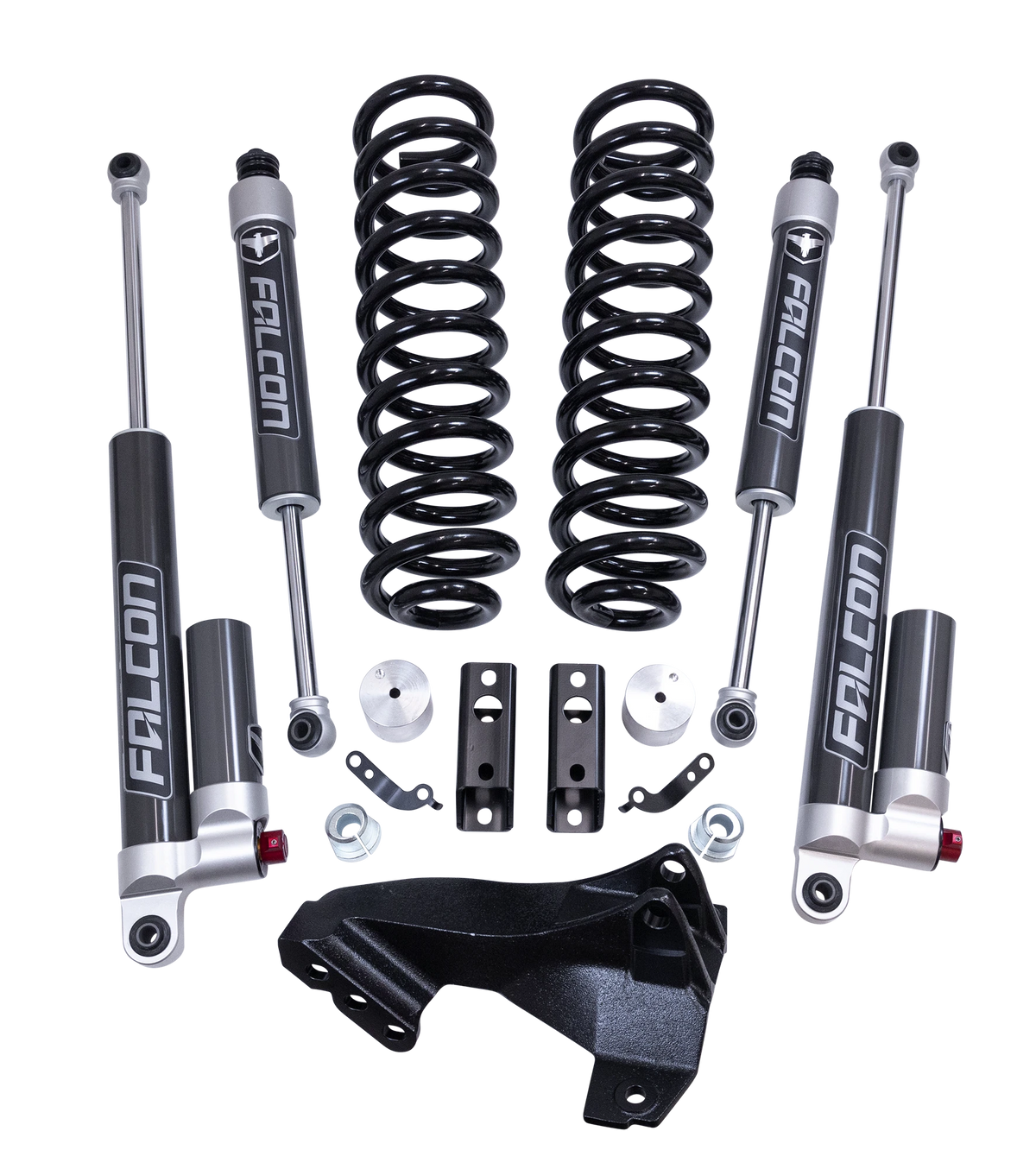

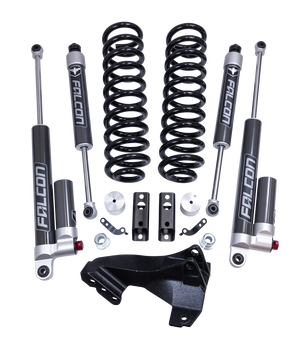

Kit Includes

• 2.5" lift front coil springs
• Front Falcon 2.1 Monotube shocks
• Front track bar relocation bracket
• Sway bar spacers
• Brake line extensions

Tire Fitment

Ideal fitment 35x12.50 on a 9" or 10" wide wheel with +25 to 0 offset; up to 37" possible with minor trimming.

Notes

Does not include shocks unless listed under Kit Includes. 2017-2019 models achieve about a 2" front lift. Trucks equipped with the Onboard Scale option require the Auto-Leveling Headlight Bracket (PN 67-23210). Caster bushings will not work on 10-lug (F450) trucks. Diesel 4WD only. Estimated install about 5 hours.
