ReadyLift - 6" Coil Spring Lift Kit w/ Falcon 3.3 Shocks & Radius Arms - 2023-2026 Ford Super Duty (4WD Diesel) - 43-23660

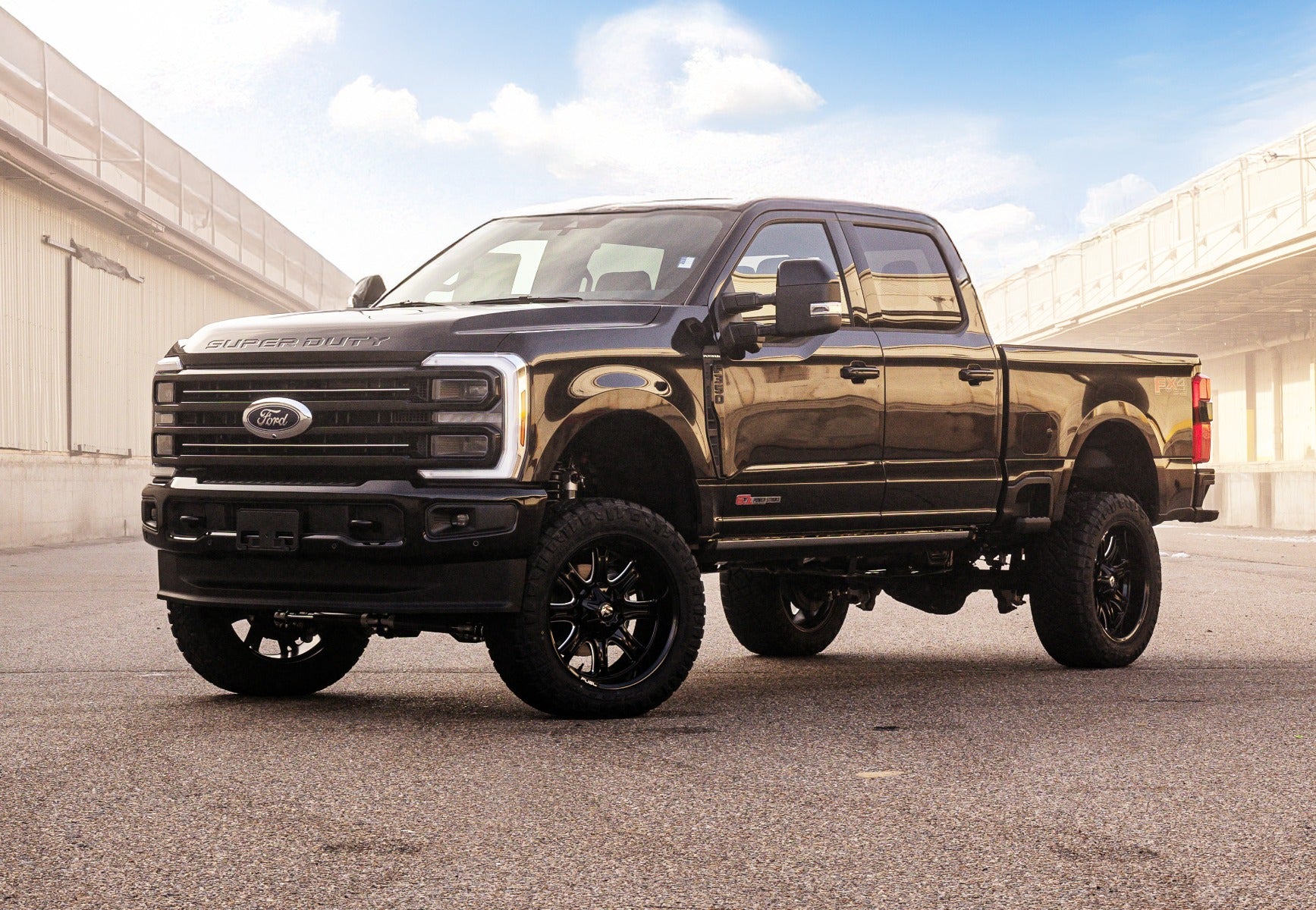

6" MAX3.3 coil spring suspension system with four Falcon 3.3 monotube shocks, tubular radius arms, and a Falcon dual steering stabilizer for the 2023-2026 Ford Super Duty F-250/F-350 Power Stroke diesel 4WD.

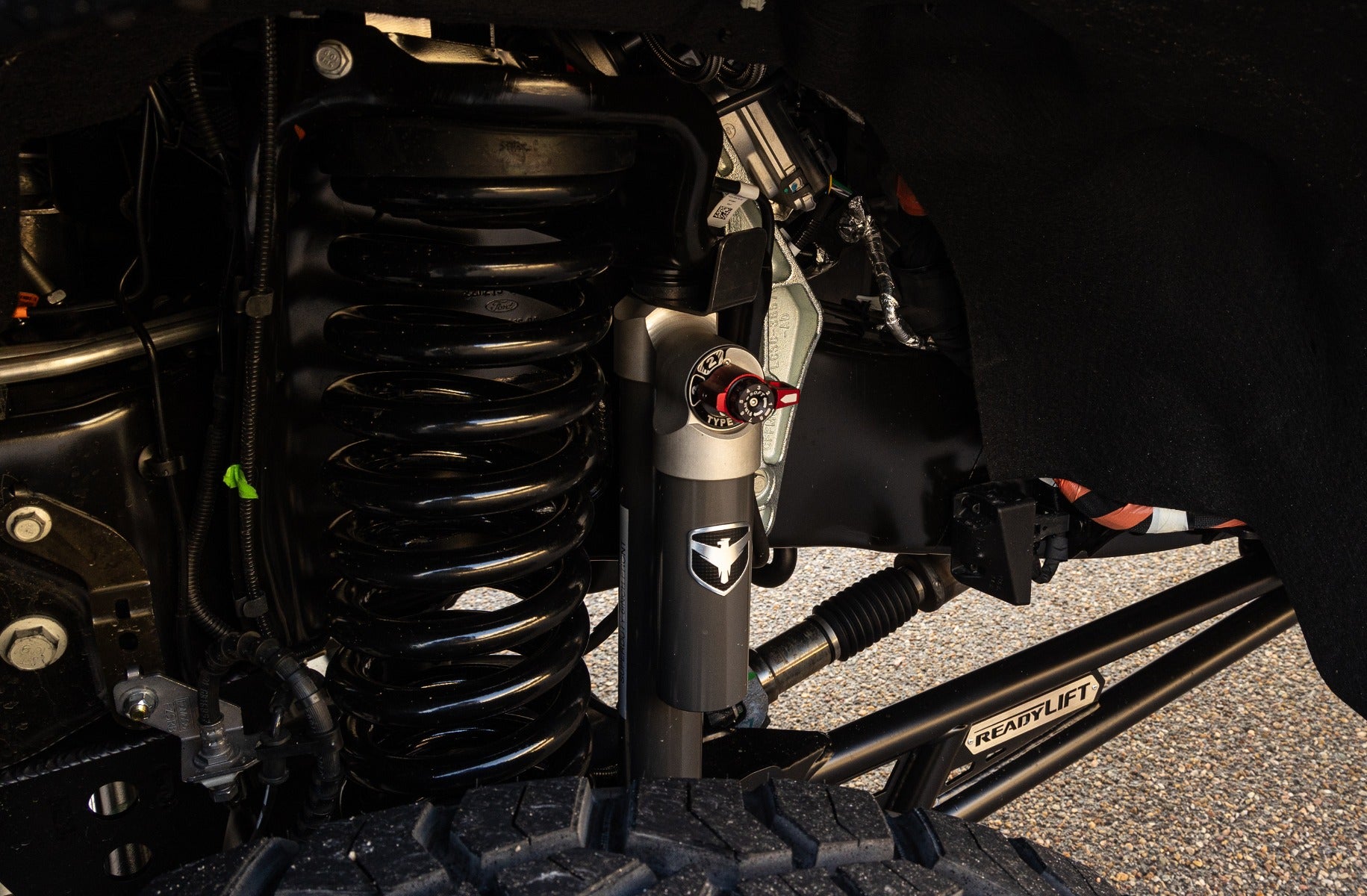

ReadyLIFT expands its industry-leading Super Duty lineup with the 6" MAX3.3 Coil Spring Suspension System, engineered for customers demanding premium ride quality, larger tire fitment, and daily drivability. Specially engineered coil springs pair with Falcon 3.3 Fast Adjust piggyback shocks for terrain-tuned, on-the-fly compression adjustability. Heavy-duty tubular radius arms correct suspension geometry and withstand Super Duty abuse, and the Falcon dual steering stabilizer adds control and confidence with oversized tires on the solid front axle. Installation is bolt-on with no cutting, welding, or fabrication required.

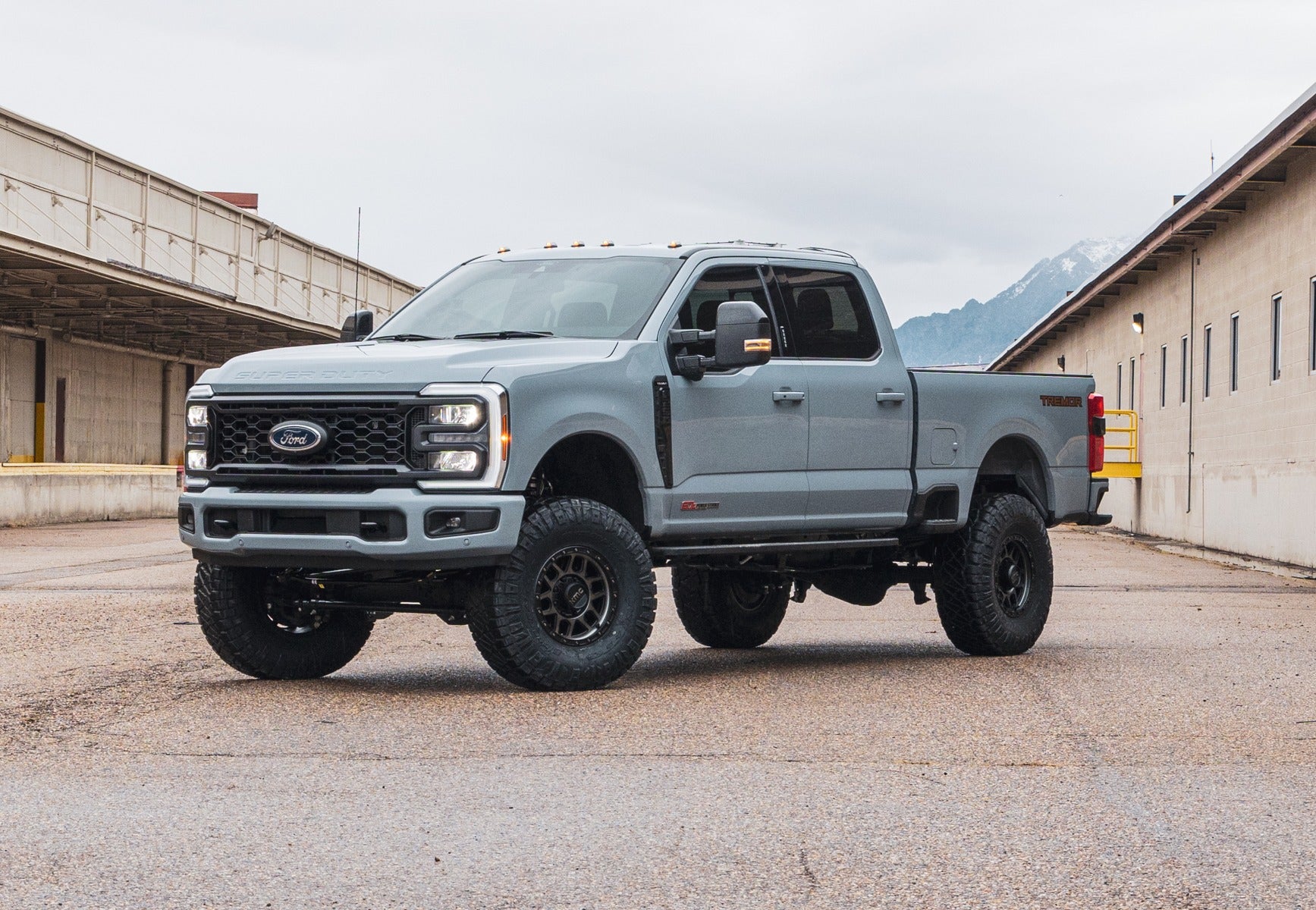

Fits: 2023-2026 Ford Super Duty F-250/F-350 Power Stroke diesel 4WD (rear single-wheel only). Not recommended for 2WD or gas trucks. Tremor versions will not gain the full 6" over stock ride height. Single Cab configuration has not been validated by ReadyLIFT.

Features

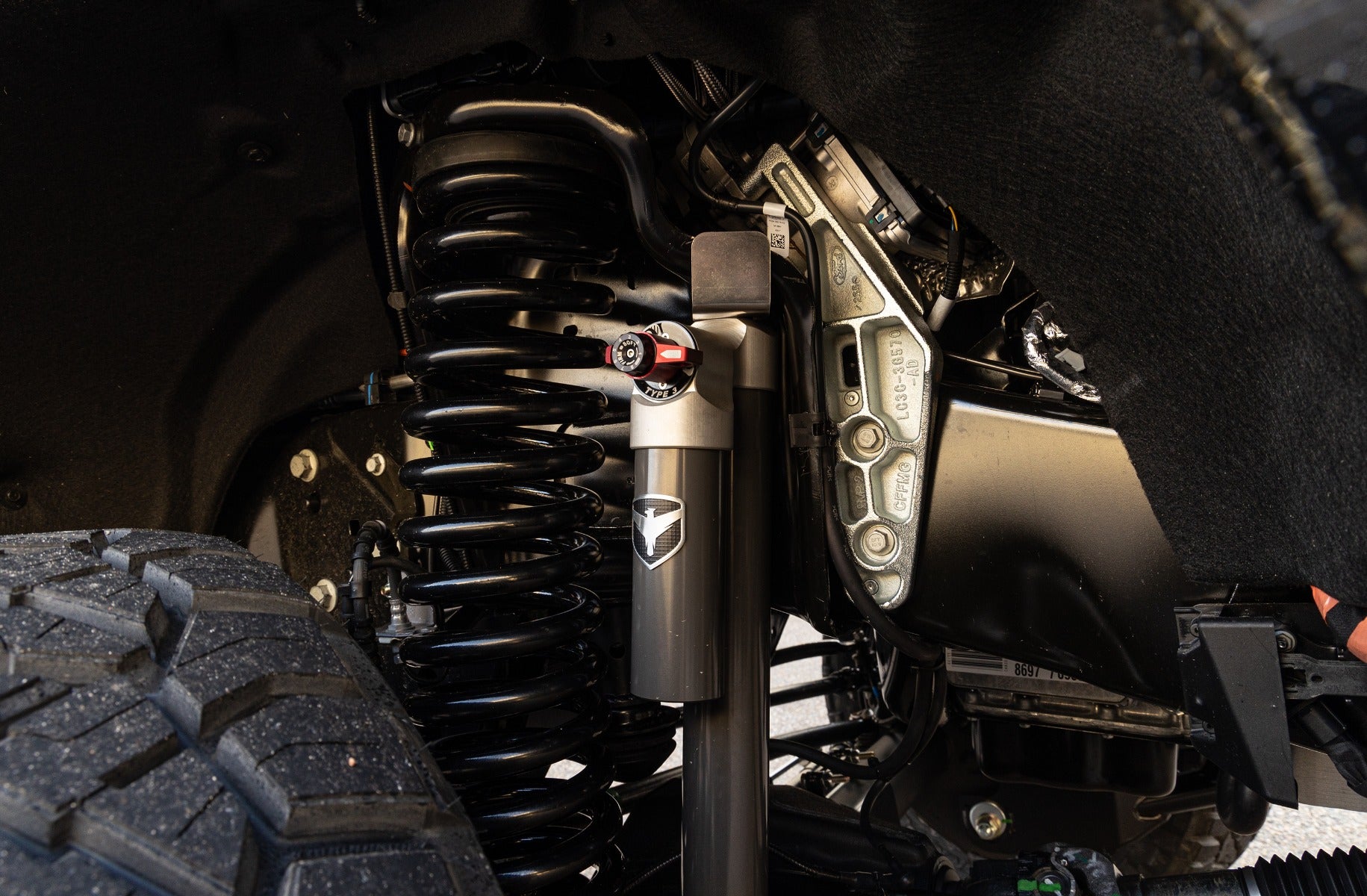

• 6" coil spring lift with four Falcon 3.3 monotube dampers

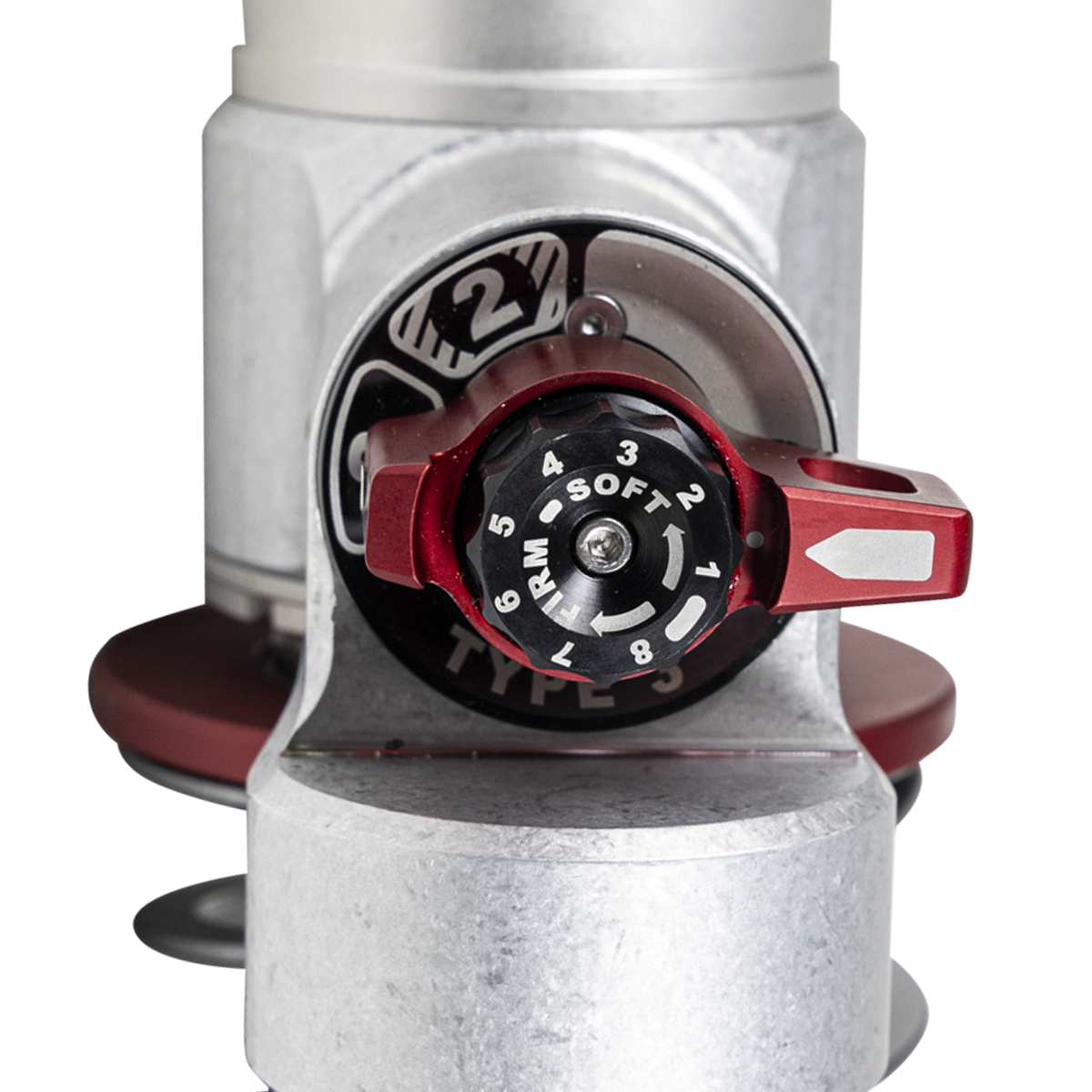

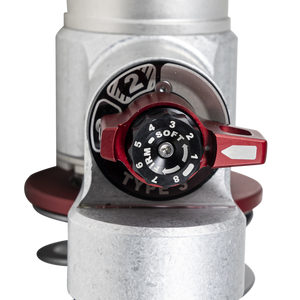

• Falcon 3.3 Fast Adjust piggyback shocks with 3-position compression (Soft, Custom, Firm) and 8-position micro dial
• Heavy-duty tubular radius arms correct the caster angle

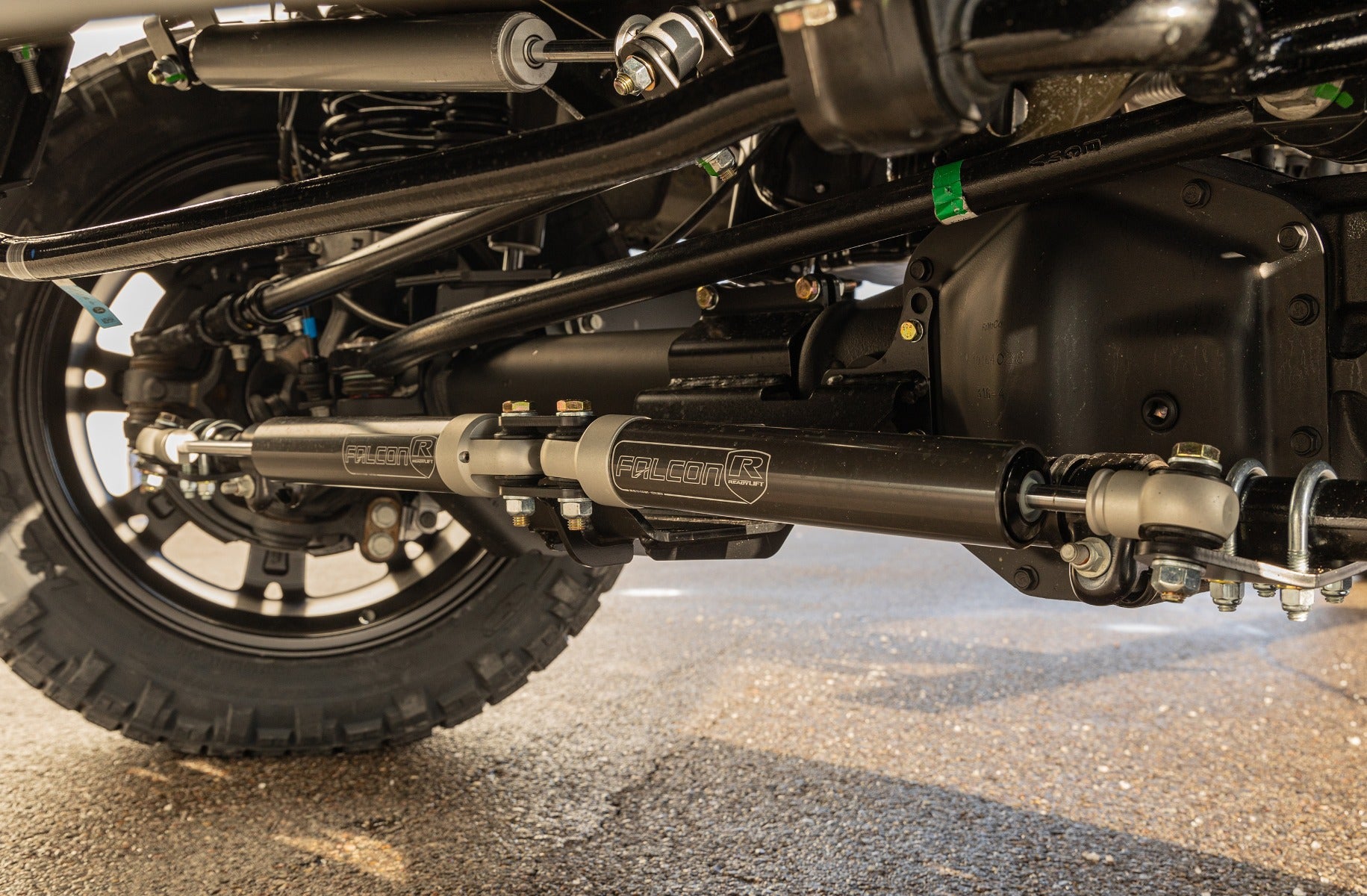

• Falcon dual steering stabilizer included
• Reservoir design for consistent damping across temperatures
• Bolt-on installation - no cutting, welding, or fabrication required

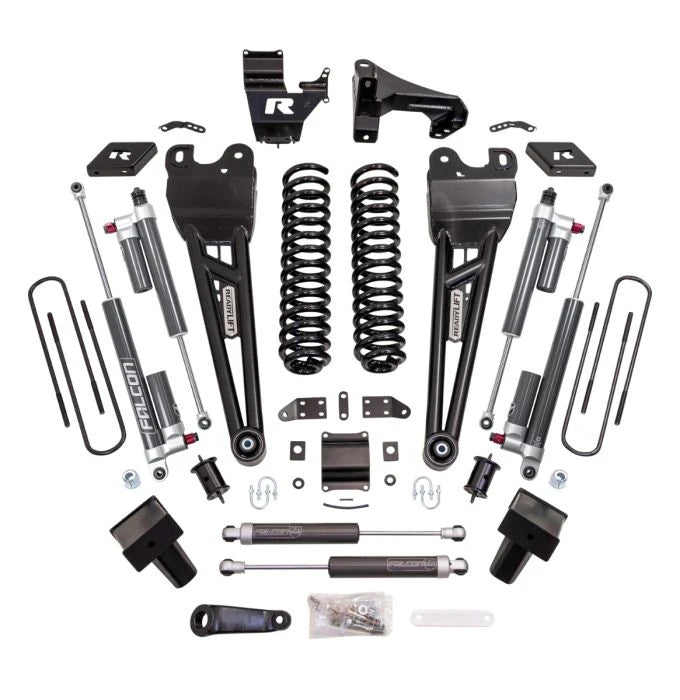

Kit Includes

• 6" lift coil springs

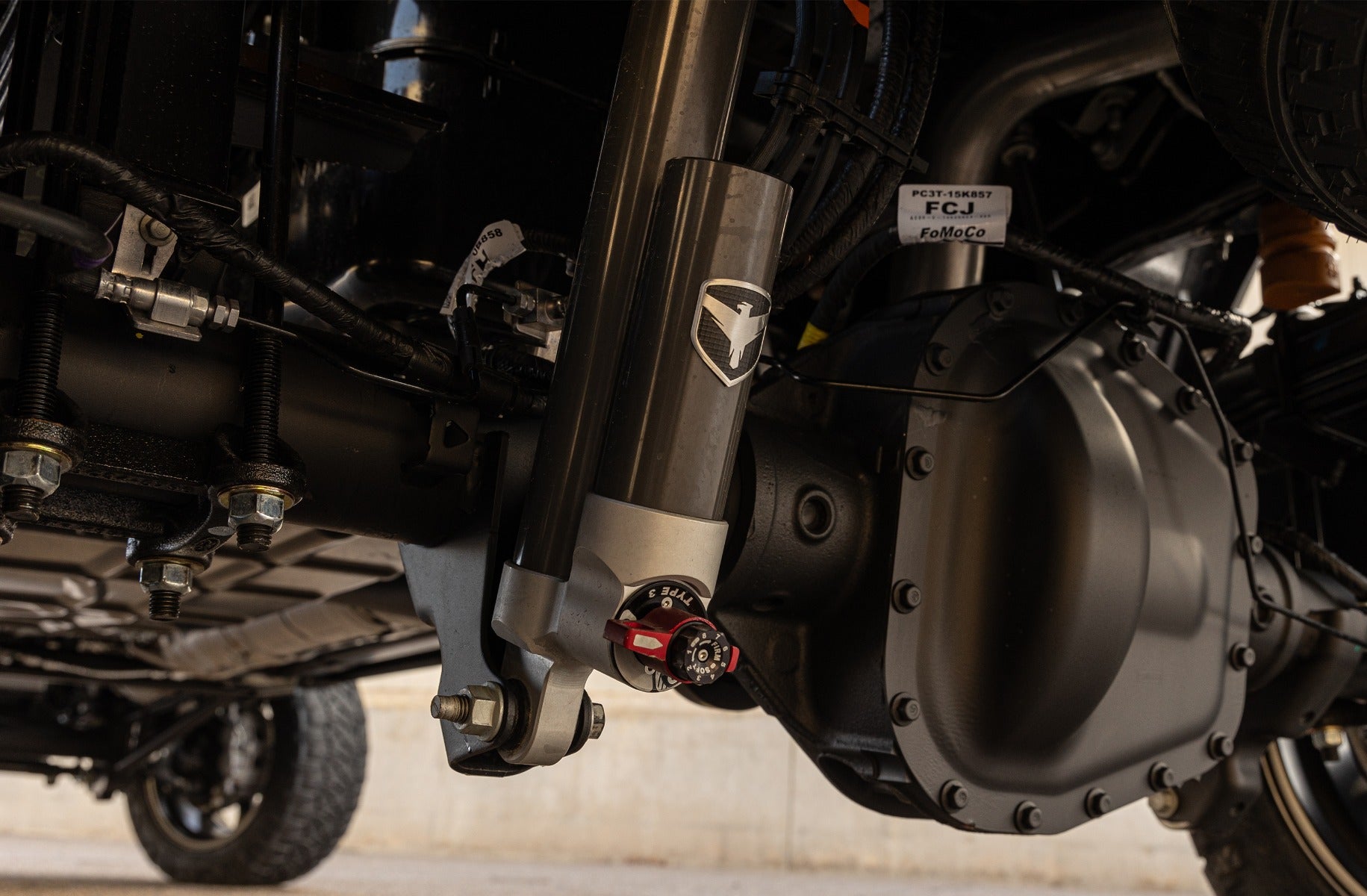

• Falcon 3.3 monotube front and rear shocks
• Track bar relocation bracket
• Tubular radius arms
• Falcon dual steering stabilizer
• Sway bar drops
• Bump stop extensions
• Carrier bearing drop
• Front brake line brackets
• Fabricated rear lift blocks
• Hardware pack

Tire Fitment

Up to 37" tall tires on 9" wide wheels with +18 offset.

Notes

Trucks equipped with the "Onboard Scale" option require the Auto-Leveling Headlight Bracket (PN 67-23610). Vehicle alignment required after installation.
