ReadyLift - 6" MAX3.3 Lift Kit w/ Falcon 3.3 Shocks & Fabricated UCA - 2020-2026 Chevy/GMC 2500/3500 HD - 42-30660

6" MAX3.3 premium suspension system with Falcon 3.3 Fast Adjust piggyback shocks and Xtreme-Duty 4130 chromoly upper control arms, built for the 2020-2026 Chevy Silverado and GMC Sierra 2500/3500 HD.

ReadyLIFT's 6" MAX3.3 system is a complete suspension upgrade engineered with precision geometry and heavy-duty construction. It pairs vehicle-specific Falcon 3.3 Fast Adjust piggyback shocks - offering independent compression and rebound tuning - with laser-cut, CNC-formed crossmembers, a full-coverage differential skid plate, OE-style cast iron knuckles with corrected geometry, Xtreme-Duty 4130 chromoly steel upper control arms with corrected ball joint angles, cast rear lift blocks, and taller fabricated torsion arm brackets. The result is an aggressive HD stance and serious capability without sacrificing drivability.

Fits: 2020-2026 Chevy Silverado / GMC Sierra 2500HD/3500HD. Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.

Features

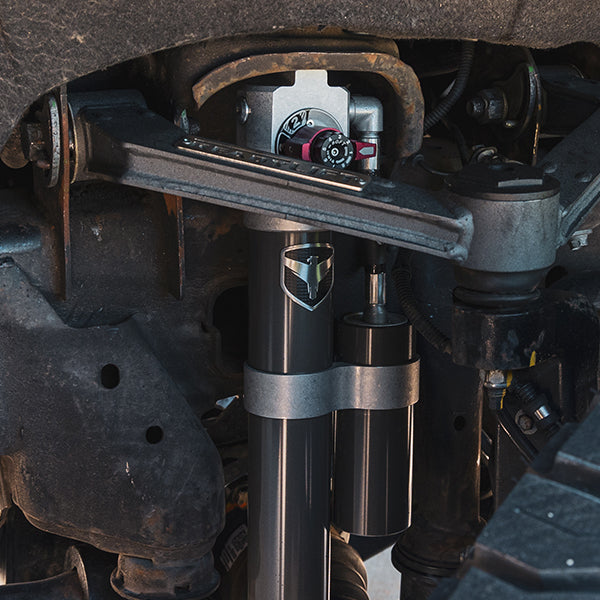

• Vehicle-specific Falcon 3.3 Fast Adjust piggyback shocks

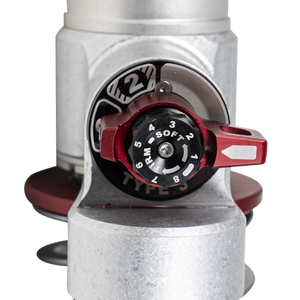

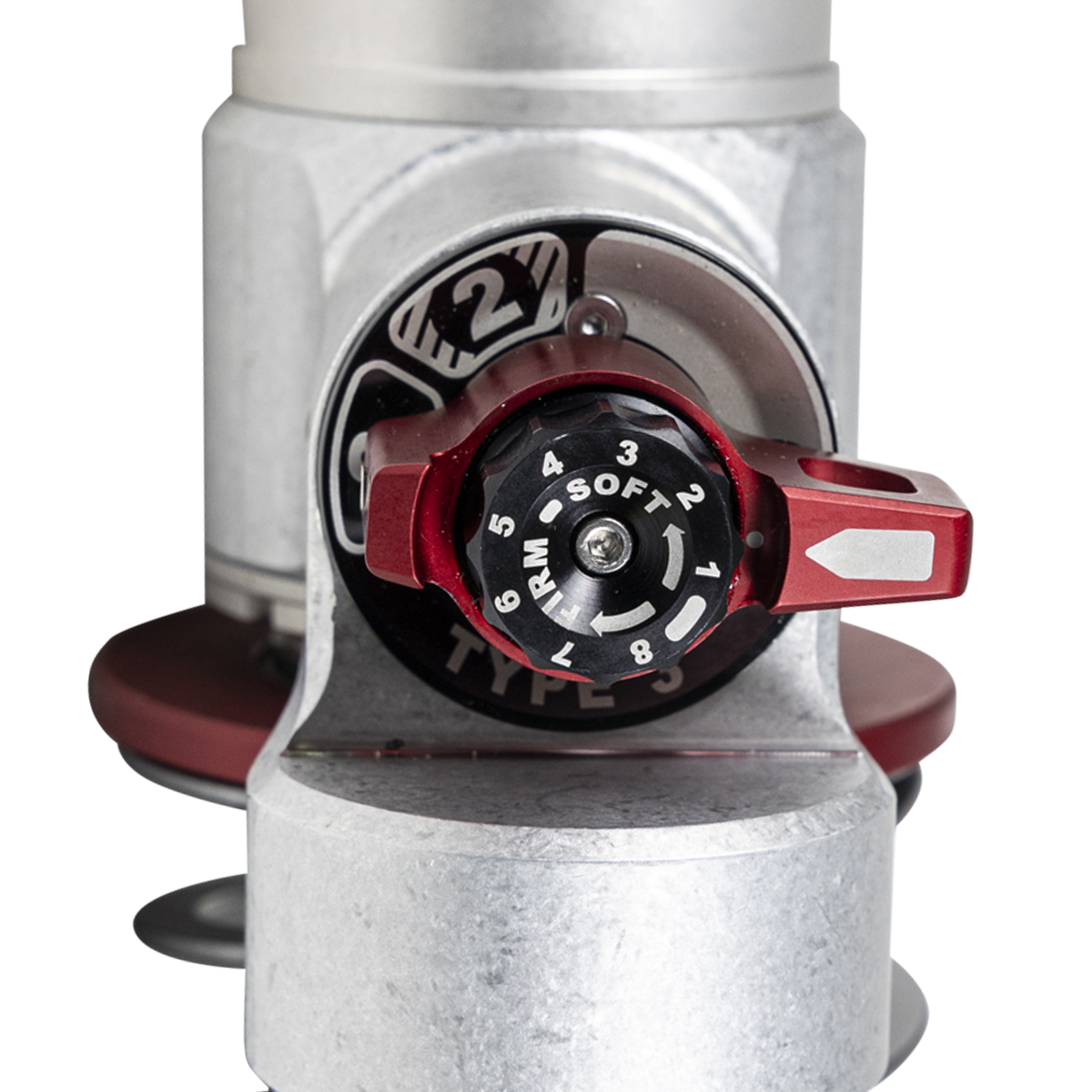

• 3-Position compression knob (Soft, Custom, Firm)
• 8-Position Micro Adjust dial for precise rebound tuning
• Reservoir design maintains consistent damping across temperatures
• Hard-anodized 6061-T6 aluminum shock bodies resist impact and corrosion
• VOD (Volume Optimized Damping) piston reduces body roll and bottom-out
• Red Line high-VI shock oil (-50F to 450F)

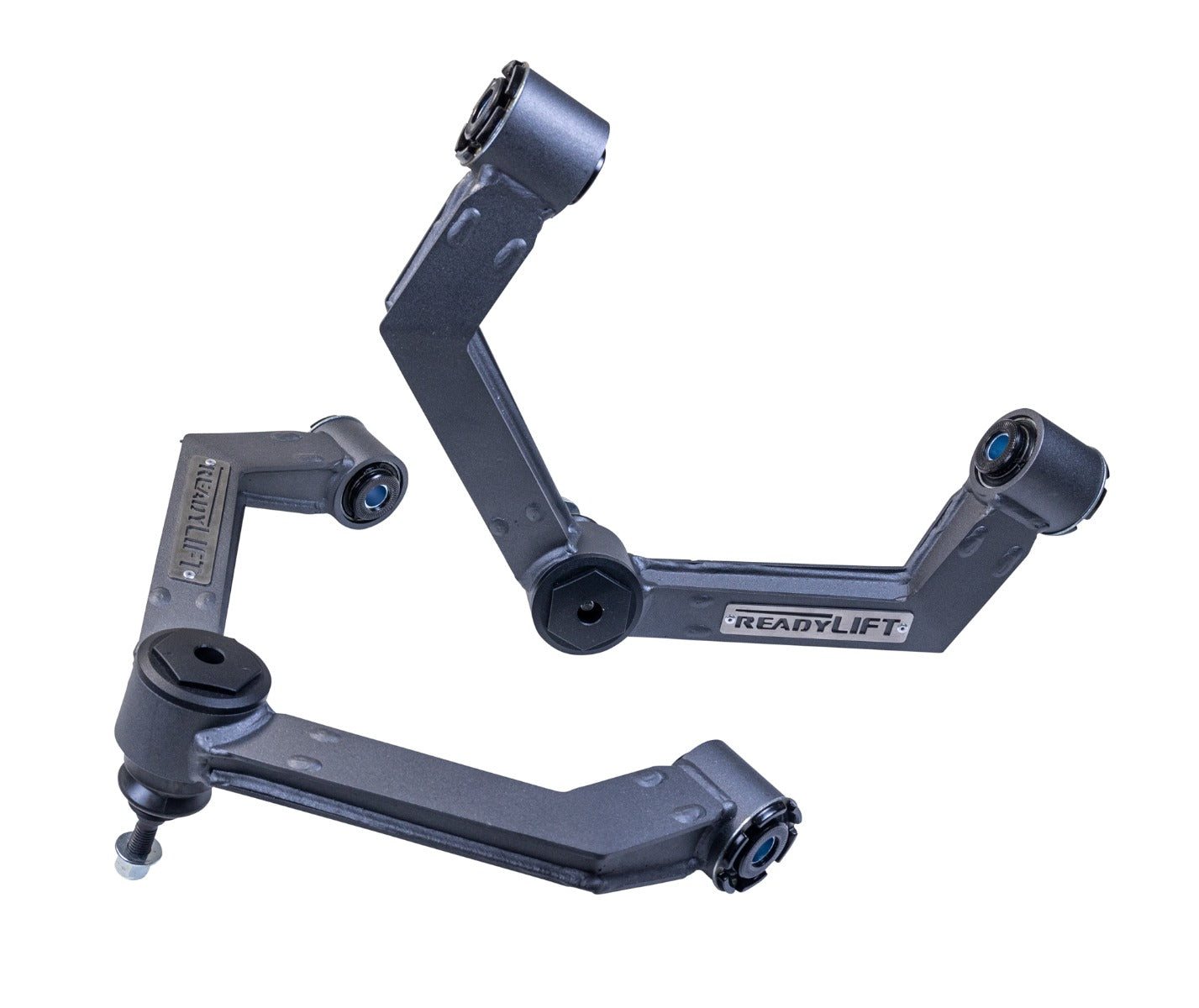

• Xtreme-Duty fabricated 4130 chromoly steel upper control arms
• Laser-cut, CNC-formed heavy-duty crossmembers and full-coverage 3/16" differential skid plate

Kit Includes

• Driver and passenger knuckles
• Torsion bar brackets, spacers, collars, and torsion key kit
• Fabricated 4130 chromoly upper control arm kit
• Front and rear crossmembers and skid plate
• Differential drop brackets, CV axle spacers, and cradle spacers
• Rear sway bar end links and bump stop extensions
• Front and rear brake line brackets
• Rear lift block kit and hardware pack

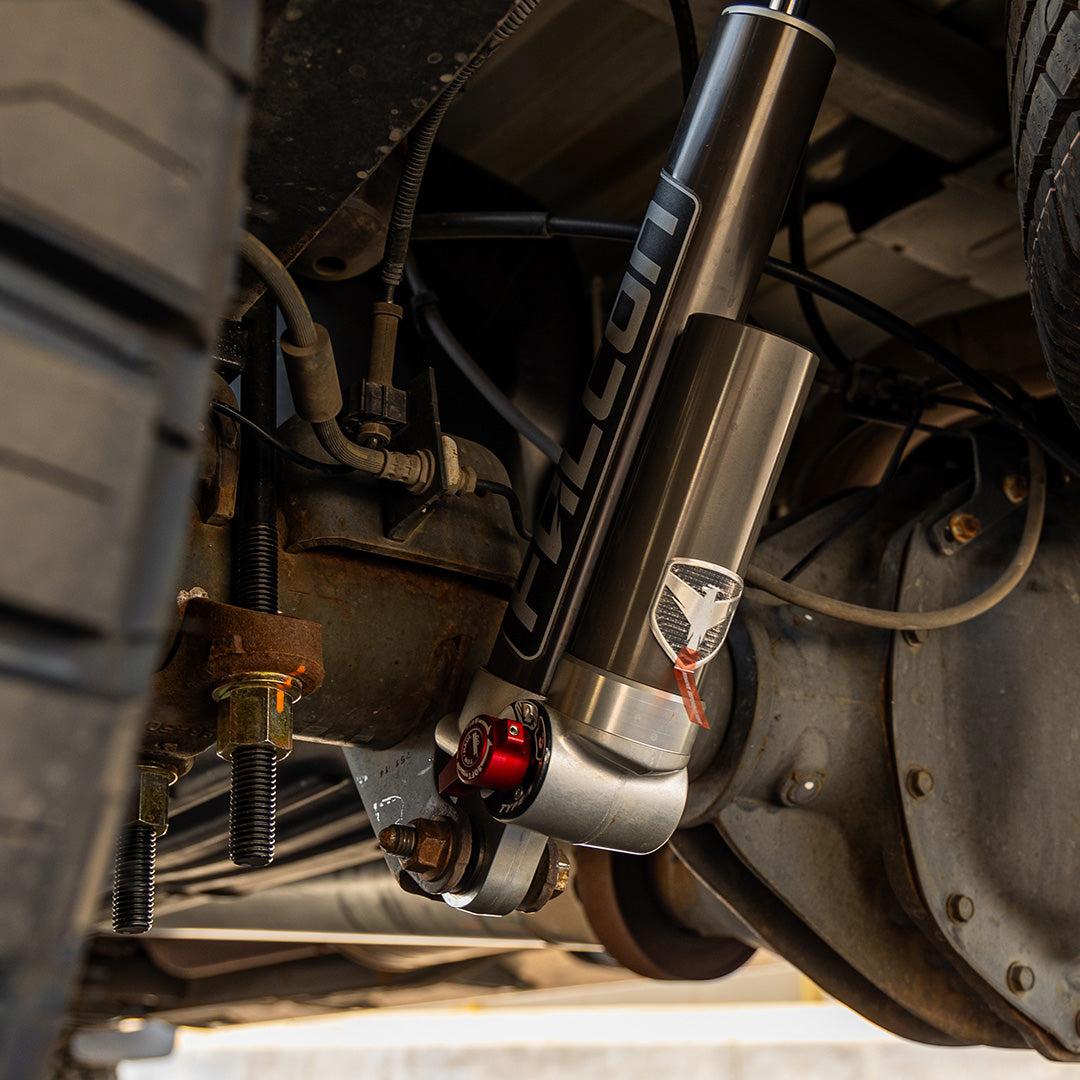

• Front Falcon 3.3 coilovers and rear Falcon 3.3 shocks

Tire Fitment

Up to 37x12.50 (37" maximum diameter) for no rub on a 20x9 wheel with 0 offset.

Notes

Some GM HD trucks equipped with the Tow Package may require custom-length U-bolts (purchased separately). Vehicle alignment required after installation. Estimated install time approximately 12 hours (excluding alignment).
