ReadyLift - 6" MAX2.1 Lift Kit w/ Falcon 2.1 Shocks - 2020-2024 Chevy/GMC 2500/3500 HD - 42-30640

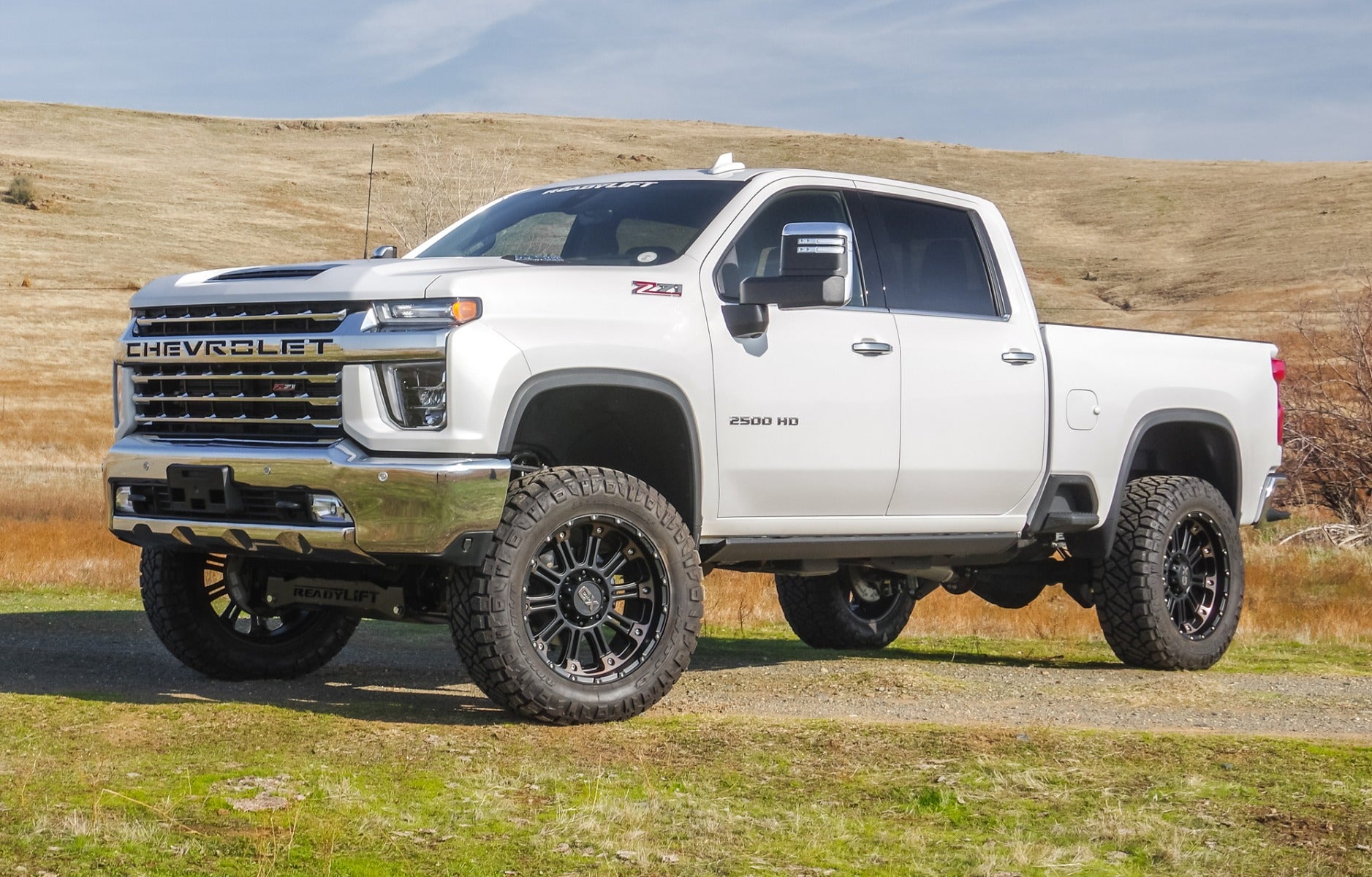

6" MAX2.1 suspension system with vehicle-specific Falcon 2.1 monotube shocks on all four corners, delivering a better-than-factory ride and up to 37" tire clearance for the 2020-2024 Chevy Silverado and GMC Sierra 2500/3500 HD.

ReadyLIFT's 6" MAX2.1 Suspension System is designed to improve stance, performance, and capability on GM HD trucks. It includes laser-cut fabricated heavy-duty steel crossmembers, cast iron OE-style knuckles with built-in corrected geometry, torsion arm relocation brackets, forged torsion keys with proper indexing, taller cast rear lift blocks, differential drop brackets, CV axle spacers, sway bar end links, bump stop extensions, a heavy-duty steel skid plate, and four Falcon 2.1 shocks. The torsion bar relocation brackets eliminate traditional torsion bar lowering to preserve ground clearance. Easy 3-position Fast-Adjust settings cover Sport/daily, Moderate Tow/Haul, and Heavy Tow/Haul.

Fits: 2020-2024 Chevy Silverado / GMC Sierra 2500HD/3500HD. Does NOT work with AT4X or ZR2 models. Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.

Features

• Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners

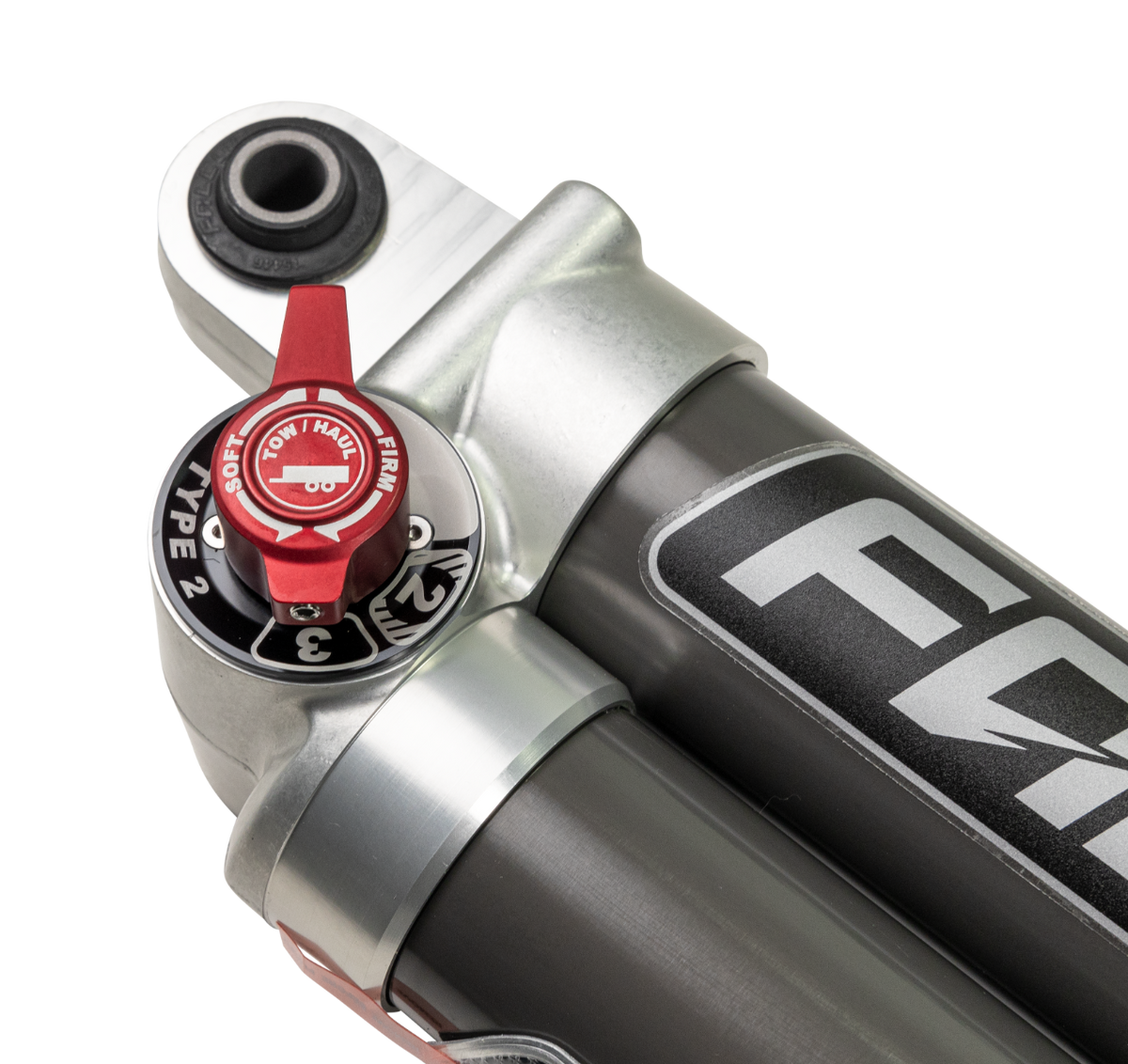

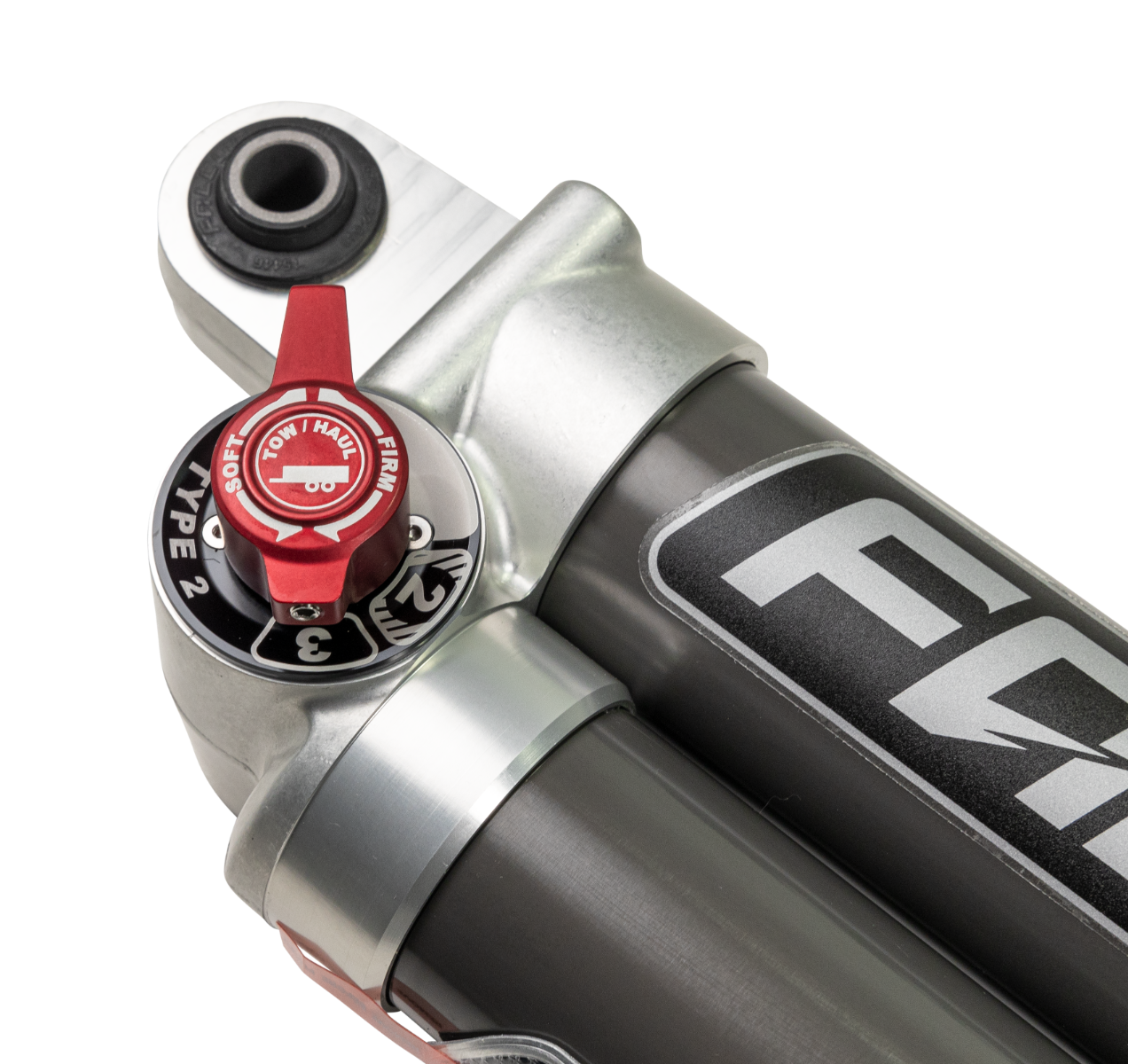

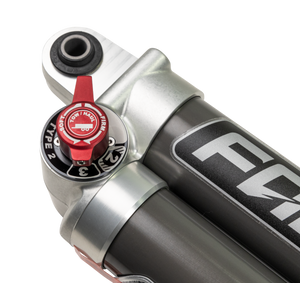

• 3-position Fast-Adjust settings: Sport/daily, Moderate Tow/Haul, Heavy Tow/Haul
• Improved dynamic roll control and low-speed damping
• 6061-T6 aluminum alloy shock bodies with smooth-honed internal surface
• 3/4" induction-hardened chrome-plated shafts resist rock damage and corrosion
• Hard-anodized 6061-T6 billet piston with 1-piece Teflon bronze wear band and O-ring
• Heavy-duty fabricated 3/16" and 1/4" steel components with full-coverage 3/16" differential skid plate
• Laser-cut, CNC-formed heavy-duty front/rear drop crossmembers

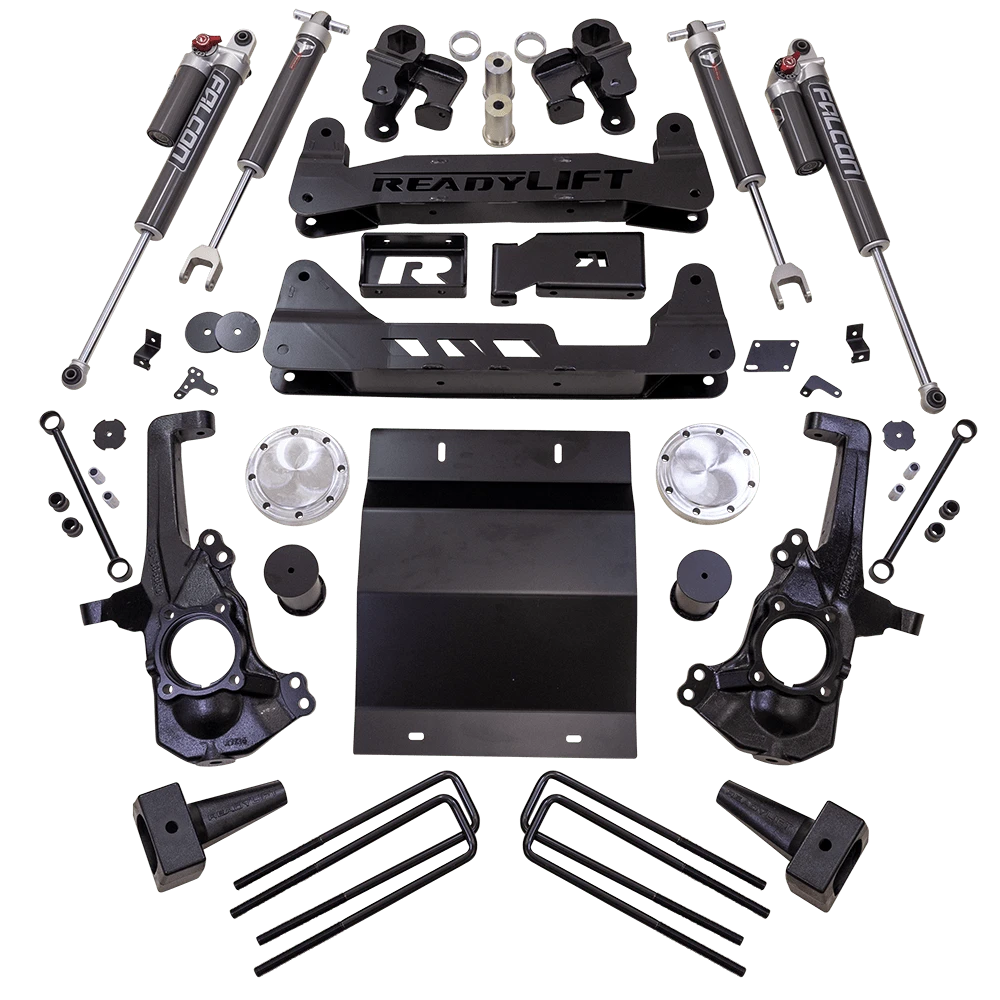

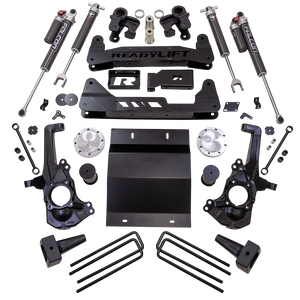

Kit Includes

• Heavy-duty welded steel crossmembers
• Heavy-duty iron knuckles
• Cast iron rear lift blocks with integrated bump stop landing pads
• Heavy-duty skid plate
• Assorted hardware and accessories
• Four (4) Falcon 2.1 monotube shocks

Tire Fitment

Up to 37x12.50 (37" maximum diameter) for no rub on a 20x9 wheel with 0 offset.

Notes

Some GM HD trucks equipped with the Tow Package may require custom-length U-bolts (purchased separately). Vehicle alignment required after installation. Estimated install time approximately 12 hours (excluding alignment).
