ReadyLift - 6" MAX3.3 Lift Kit w/ Falcon 3.3 Shocks - 2021-2024 Ford F-150 (4WD) - 42-21640

6" MAX3.3 suspension system with Falcon 3.3 Fast Adjust shocks that delivers first-class ride, big tire clearance, and an aggressive lifted stance for the 2021-2024 Ford F-150 4WD.

ReadyLIFT's 6" MAX3.3 Suspension System for the Ford F-150 combines Falcon 3.3 Fast Adjust dampers with heavy-duty 1/4" steel plate front and rear crossmembers, durable lifted cast knuckles, and machined strut spacers. The system corrects suspension, steering, and driveline geometry to maintain on-road handling while improving strength and off-road capability. A fabricated 4" tall rear block with factory-style U-bolts sets the rear lift, and ReadyLIFT's upgraded upper control arms add strength, travel, and corrected alignment.

Fits: 2021-2024 Ford F-150 4WD. Does NOT fit vehicles equipped with CCD (Continuously Controlled Damping), 2WD models, Raptor, or F-150 diesel.

Features

• Falcon 3.3 Fast Adjust dampers with dual-knob tuning

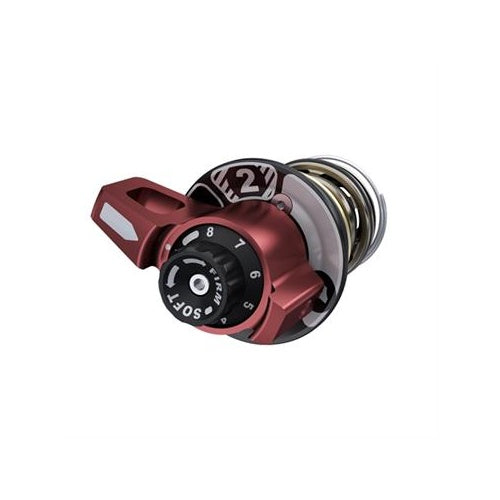

• 3-Position Fast Adjust knob (Soft, Custom, Firm compression)
• 8-Position Micro Adjust dial for refined damping
• Reservoir design for consistent damping across temperatures
• Hard-anodized large-bore 6061-T6 aluminum shock bodies
• VOD (Volume Optimized Damping) digressive piston reduces body roll and bottom-out
• Red Line high-VI shock oil (-50F to 450F)
• DOM tube steel upper control arms with proprietary heavy-duty high-angle ball joints
• Heavy-duty fabricated 3/16" and 1/4" steel components with full-coverage 3/16" differential skid plate
• Includes HD alignment cam bolts for proper front-end alignment

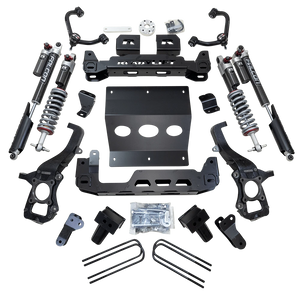

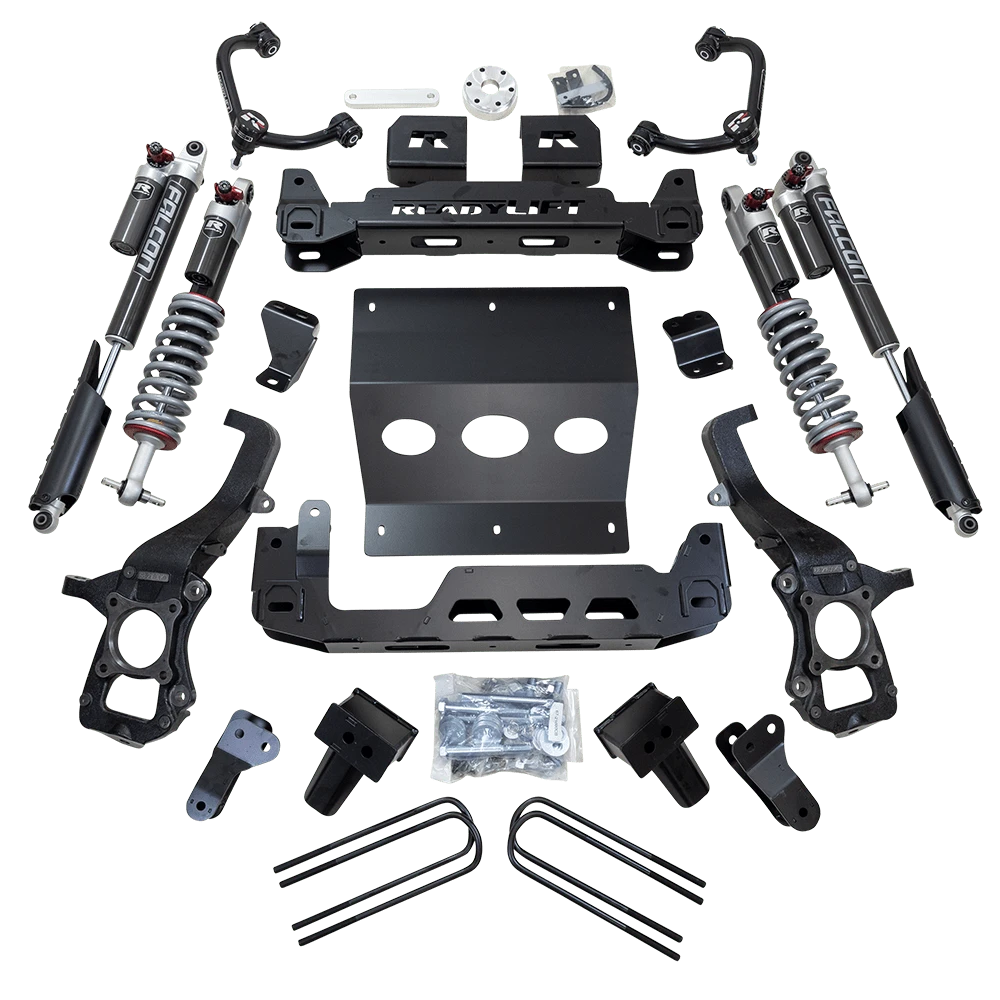

Kit Includes

• Front and rear crossmembers
• Differential skid plate
• Front and rear differential drop brackets and supports
• Sway bar drop brackets
• Machined front driveline spacer and 16mm carrier bearing spacer
• Cast lifted knuckles (driver/passenger)
• Rear lift blocks and U-bolt kit
• Alignment cam bolt kit

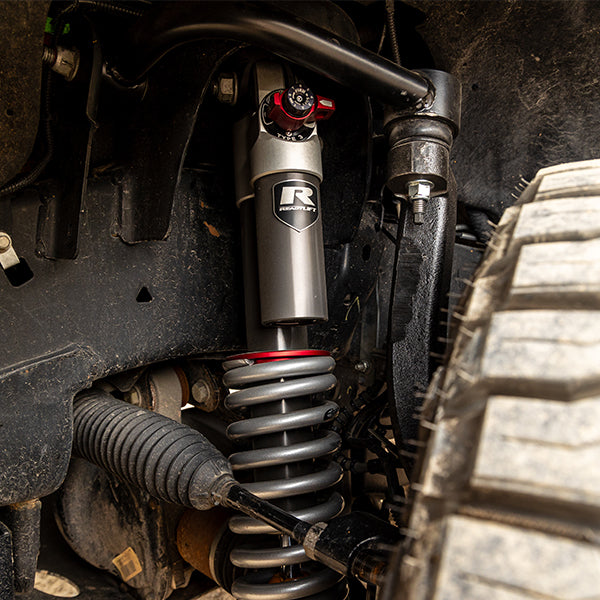

• Front Falcon 3.3 coilovers and rear Falcon shocks
• Brake line and e-brake drop brackets, diff breather vent
• Upper control arm kit and hardware

Tire Fitment

295/60-20 for no rub on a 9" wide wheel with 0 offset. Up to 37" maximum tire diameter with possible trimming.

Notes

The driver-side rear control arm pocket will need trimming to clear the rear crossmember. Vehicle alignment required after installation. Estimated install time approximately 10 hours (excluding alignment).
