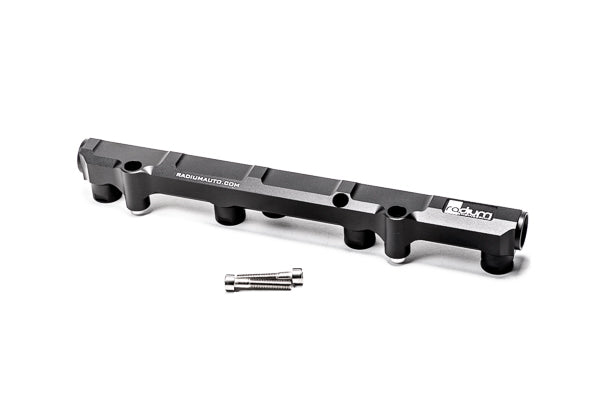

Radium Engineering VW/Audi EA888 Fuel Rail / Port Injection - 20-0889

Manufactured with A 0.7" large internal bore, the Radium Engineering fuel rail can support all necessary engine power requirements. The optional plumbing kit includes all parts for a simple installation with the OEM fuel line.

• The fuel rail end ports are tapped for 8AN ORB. 8AN ORB adapter fittings can be found HERE
• The fuel rail upper center port is tapped for 1/8' NPT. 1/8' NPT adapter fittings can be found HERE
• The fuel rail lower center port is tapped for 6AN ORB, as shown below. 6AN ORB adapter fittings can be found HERE

FEATURES

• Lightweight aluminum construction
• Inner bore diameter: 0.7 inch
• Anodized surface finish for wear and corrosion resistance
• Can be converted to a pressure regulated return system
• No special tools required for installation
• Fits under the factory engine cover

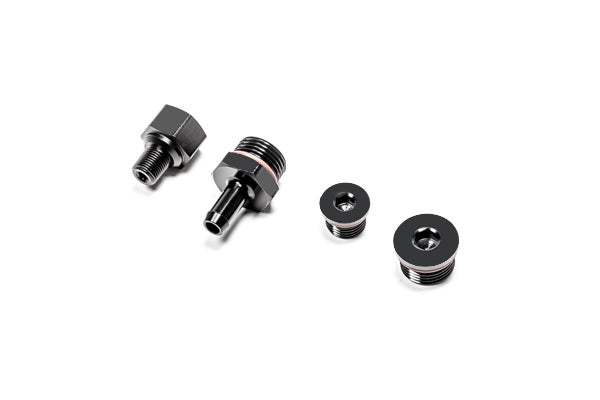

The plumbing kit includes adapter fittings and plugs permitting a bolt-on affair with the OEM fuel line.
