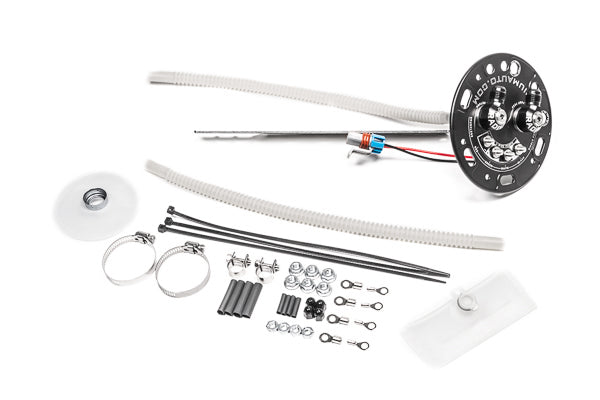

Radium Engineering 90-05 Acura NSX Fuel Hanger (F90000267/274/285 OR BRUSHLESS Pumps) - 20-2792

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled -6AN male fitting permits an aftermarket feed line and/or connects to the plumbing kit listed below.

The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. The preinstalled -6AN male fitting permits an aftermarket return line and/or connects to the plumbing kit listed below.

All fittings are machined low enough to clear the factory sheet metal.

This hanger is compatible with one fuel pump. Choose the best fuel pump based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. To add a second pump, add the 20-2797 Dual Pump Add-On to your purchase.

If installing a brushless pump you will be limited to one pump, and the dual pump add-on can NOT be used due to the extra brushless controller wires.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
