Radium Engineering 08-14 Cadillac CTS/CTS-V Fuel Hanger AEM 50-1220 DW440 (Pumps Not Included) - 20-1320

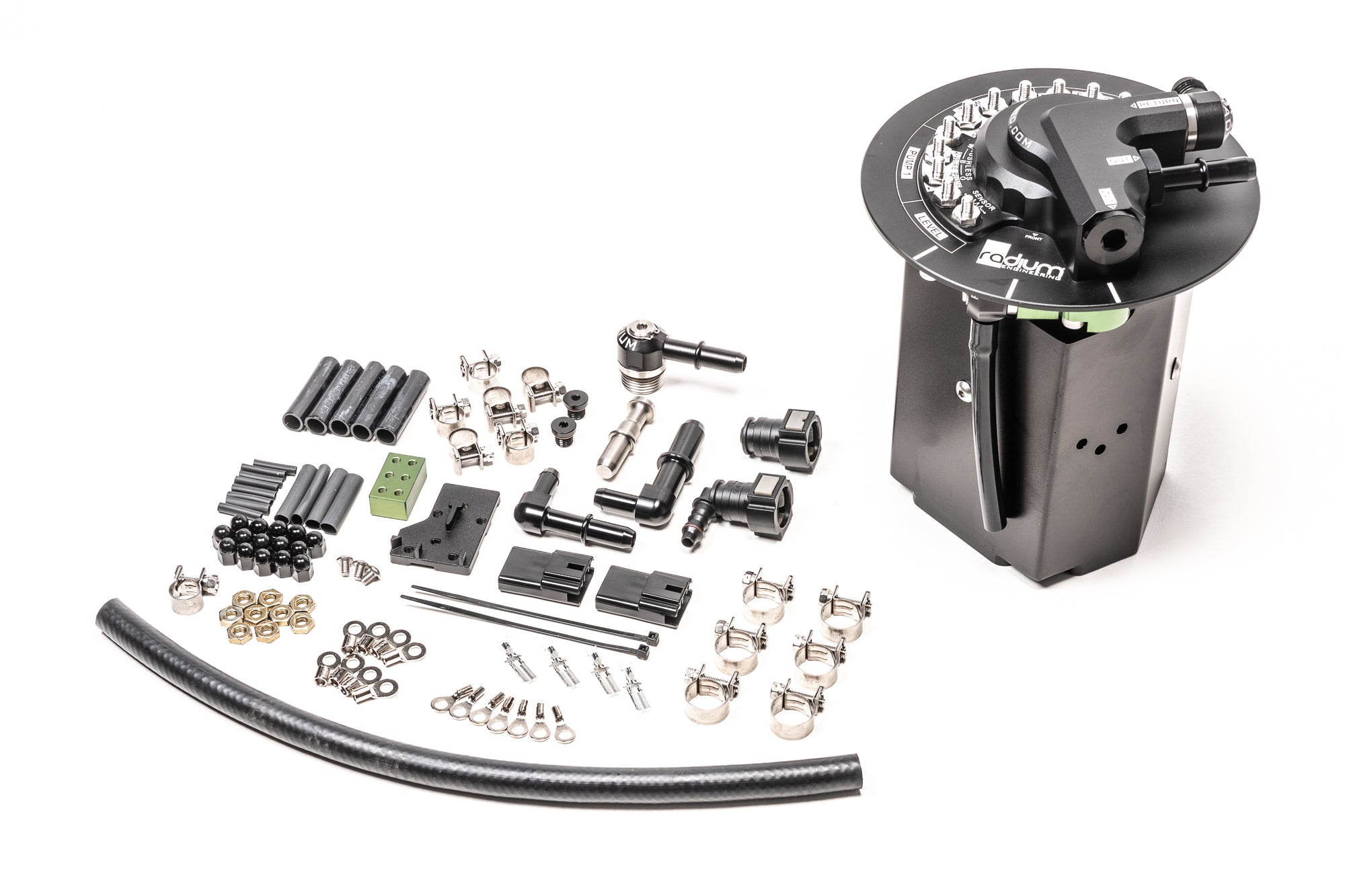

This fuel hanger completely replaces the factory in-tank fuel pump module and allows 1, 2, or 3 aftermarket pumps to be used. All OEM sensors can be reused.

FUEL STARVATION

• The 1-piece anodized aluminum collector box keeps fuel trapped around the pump inlet(s)
• There are three 1-way fill valves incorporated in the bottom of the collector box that allows fuel in, but not out. Each 1-way fill valve flows 355 LPH
• The collector box is constantly replenished with fuel returning from the pressure regulator
• The collector box is constantly replenished with fuel coming from the jet pump crossover line

PORTS AND FITTINGS

There are 2 pump outlet ports that are both tapped with 3/4"-16 (8AN ORB) threads. The first port can be used to reconnect the factory fuel feed line. Because the OEM fuel feed line has an integrated fuel pressure sensor, this feature is critical for many applications. There are 2 different SAE quick connect fittings provided to adapt to the specific vehicle. The second port can be used to route another feed line for increased flow. This port comes preinstalled with an 8AN ORB plug but a spare 8AN ORB to 6AN Male fitting is provided. The return port is tapped with 3/4"-16 (8AN ORB) threads. Provided is an 8AN ORB to 6AN Male banjo fitting.

VENTURI JET PUMP

The OEM venturi jet pump in the return line creates a restriction that can impact fuel pressure reliability. The siphon system has been replaced and redesigned to eliminate this return line restriction but still effectively scavenges fuel. This means higher flowing pumps can safely be used without fuel pressure issues. Depending on fuel pressure, the venturi jet pump will consume 15-45 LPH. Take this fuel loss into consideration when sizing the fuel pumps. To reconnect the internal OEM fuel crossover transfer line, 2 different SAE quick connect fittings are provided to cover all compatible vehicles. The fuel pump hanger plumbing kits (listed below) include fuel filters with a built-in check valve. If not purchasing one of these plumbing kits and it is important for fuel pressure to hold steady after the engine is shut down, install one of these check valves in your fuel system.

FUEL PRESSURE

• This system eliminates the OEM fuel pressure regulator inside the stock unit.
• This system requires the use of an aftermarket fuel pressure regulator.
• A fuel pressure regulator is included in the plumbing kit.

FILTRATION

This system includes pre-pump filtration for all 3 pumps. as shown, fuel cannot pass between the 3 independent filtration chambers (A, B, C). If less than 3 pumps are installed, the empty port does NOT need to blocked off.

This system eliminates the OEM "post" pump filter. A low-micron aftermarket fuel filter should be installed downstream to protect the injectors from debris. A post-pump fuel filter is included in the plumbing kit. Select one for each aftermarket fuel pump used
