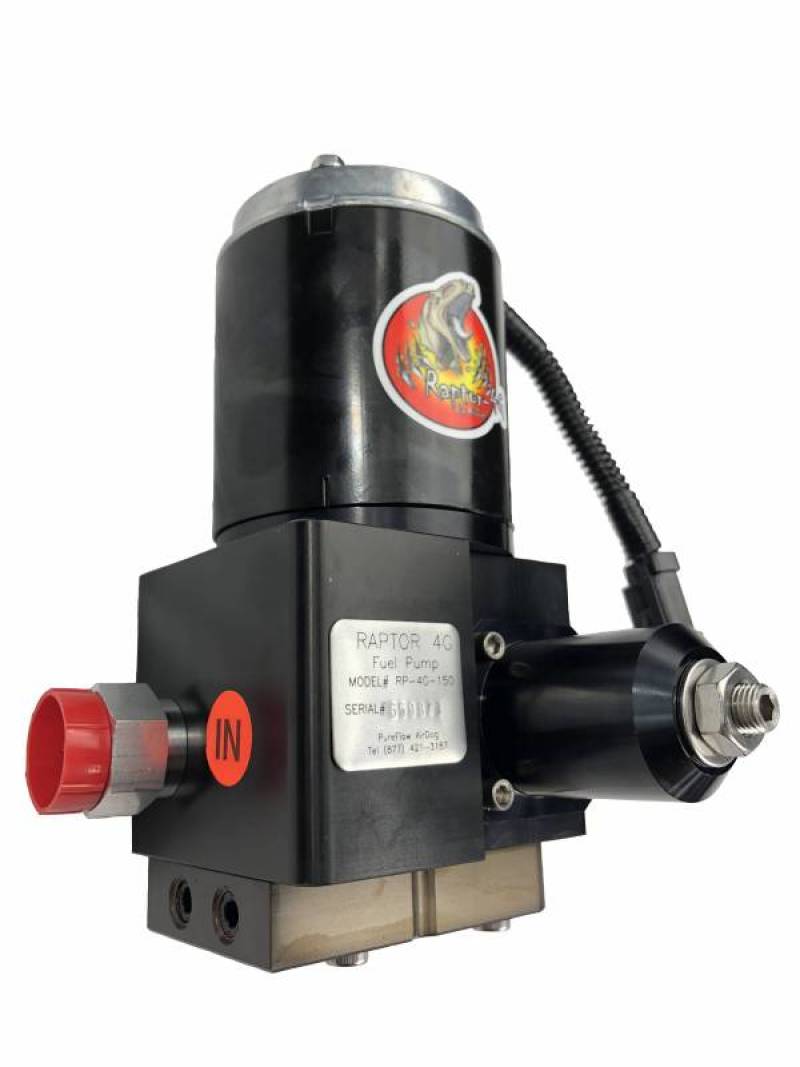

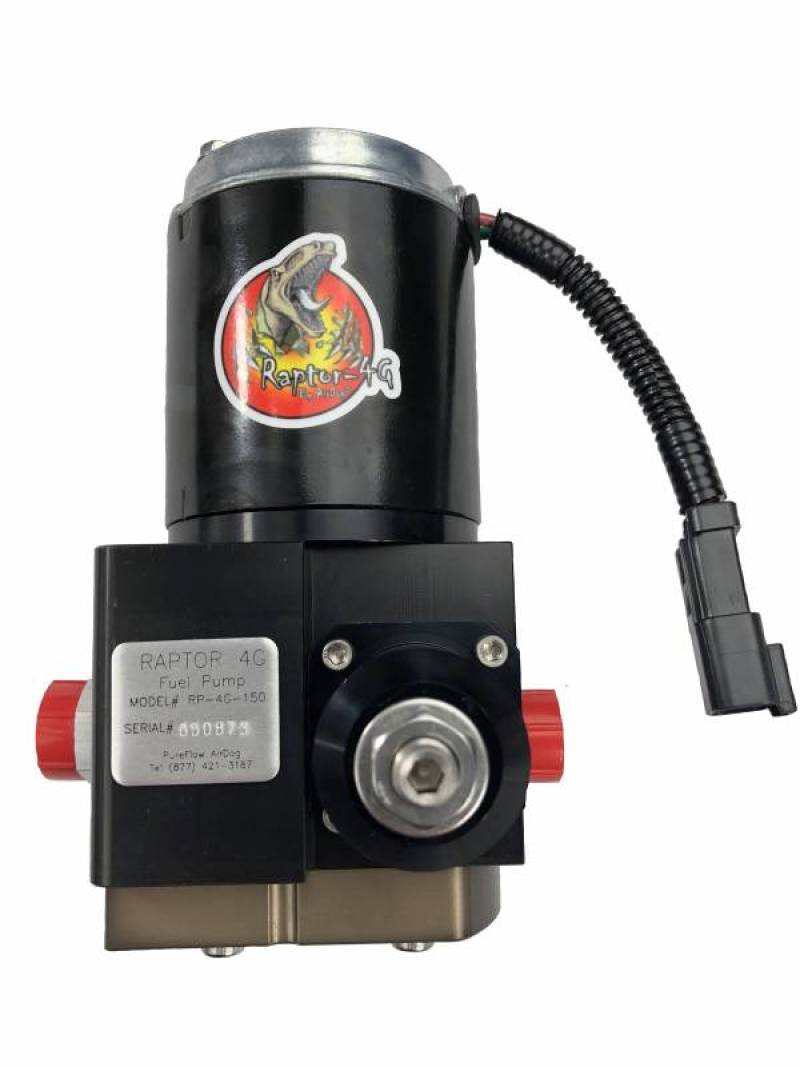

This is the Raptor-4G RP-150 fuel system for the 2019 and 2020 Common Rail Cummins. This system mounts to the frame rail using the supplied sandwich plate mounting system.
A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.
The pressure side connects directly into the side of the fuel filter housing on the engine block. These pumps are internally regulated and do not require a return line.
This is a 150GPH (Gallon Per Hour) fuel system for stock fuel trucks.
Details:
- Gallons per hour: 150GPH
- Manufacturer: Cummins
- Make: Dodge
- Liter: 6.7L
- Valve: 24V
- Engine Years: 2019-2023
- Fuel Type: Diesel
