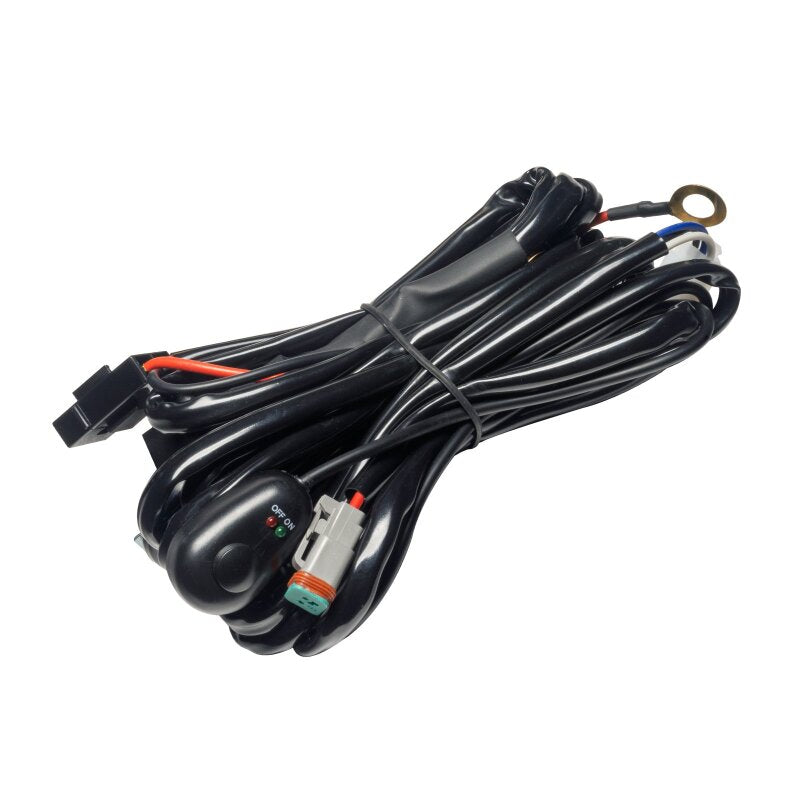

Make your off-road LED light bar installation simple and reliable. The ORACLE Switched LED Light Bar Wiring Harness features a 40A relay, 30A in-line fuse, pre-wired on/off switch, and 2-pin Deutsch connector - all connections soldered, heat-shrunk, and weather-packed for maximum durability in the toughest conditions. 288W max output. Works with all ORACLE LED off-road lighting products.
Product Overview
When adding auxiliary LED lighting to your off-road vehicle, a proper wiring harness is essential - and the ORACLE Switched LED Light Bar Wiring Harness is built to handle it right. The harness includes a 40A relay with connectors and a 30A in-line fuse for circuit protection, with a 288W maximum wattage output per harness.
Every connection is soldered and heat-shrunk for long-term reliability, and all connectors are weather-packed and cut to length for a clean, fast installation. The included pre-wired on/off switch gives you immediate control without additional wiring work. The 2-pin Deutsch connector is the industry-standard connection used across ORACLE's off-road LED light bar and auxiliary lighting lineup.
288W maximum per harness. Do not exceed 288W on a single harness. For dual-light setups exceeding 288W, use the ORACLE Dual Deutsch DTM 40A Relay Harness instead.
Key Features
-
40A relay with connectors - handles high-current auxiliary lighting loads
-
30A in-line fuse - circuit protection included
-
288W maximum output - per single harness
-
2-pin Deutsch connector - industry-standard, compatible with all ORACLE off-road LED lighting
-
Pre-wired on/off switch - ready to mount, no additional wiring needed
-
All connections soldered and heat-shrunk - long-term durability in harsh conditions
-
Weather-packed connectors - sealed against moisture, dust, and vibration
-
Cut-to-length wiring - clean, fast installation
-
Universal fit - works with all ORACLE LED off-road lighting products
- 1-Year Limited Warranty
Performance & Technical Specifications
-
Part Number: 2088-504
-
Relay Rating: 40A
-
Fuse Rating: 30A In-Line
-
Max Wattage: 288W (single harness)
-
Connector Type: 2-Pin Deutsch
-
Switch: Pre-Wired On/Off (included)
-
Connections: Soldered & Heat-Shrunk
-
Weatherproofing: Weather-Packed Connectors
-
Wiring: Cut-to-Length
-
Fitment: Universal - all ORACLE LED off-road lighting
-
Warranty: 1-Year Limited
Vehicle Fitment
Universal Application: Designed for ORACLE off-road LED lighting products using a compatible 2-pin Deutsch connector.
Verify a 12V electrical system, connector type, circuit load, wire length, and the 288W maximum output before installation.
What's Included
- (1) ORACLE Switched LED Light Bar Wiring Harness - 2-Pin Deutsch
- 40A Relay with connectors
- 30A In-Line Fuse
- Pre-Wired On/Off Switch
