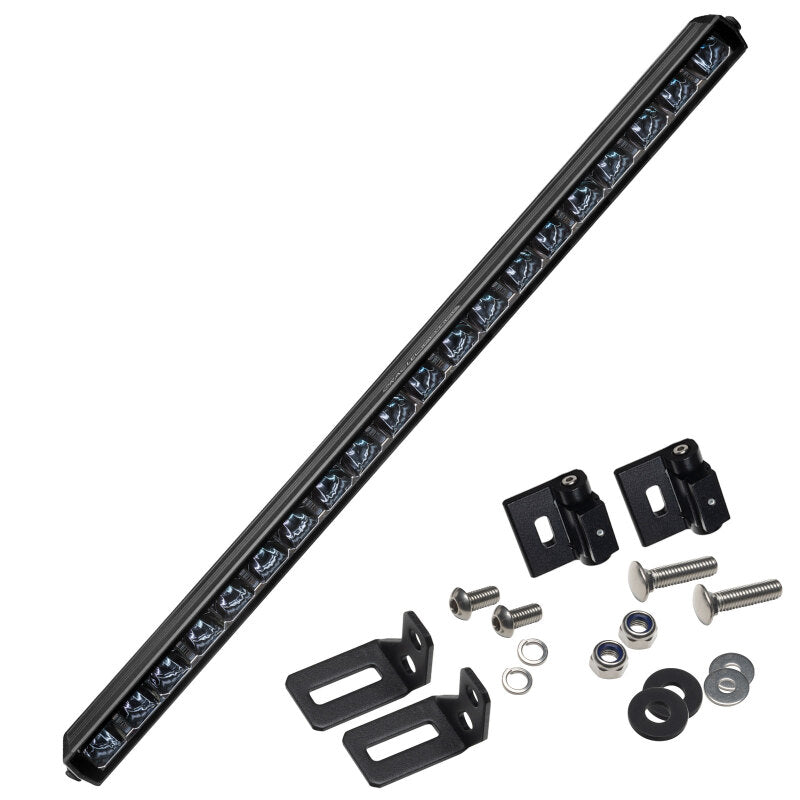

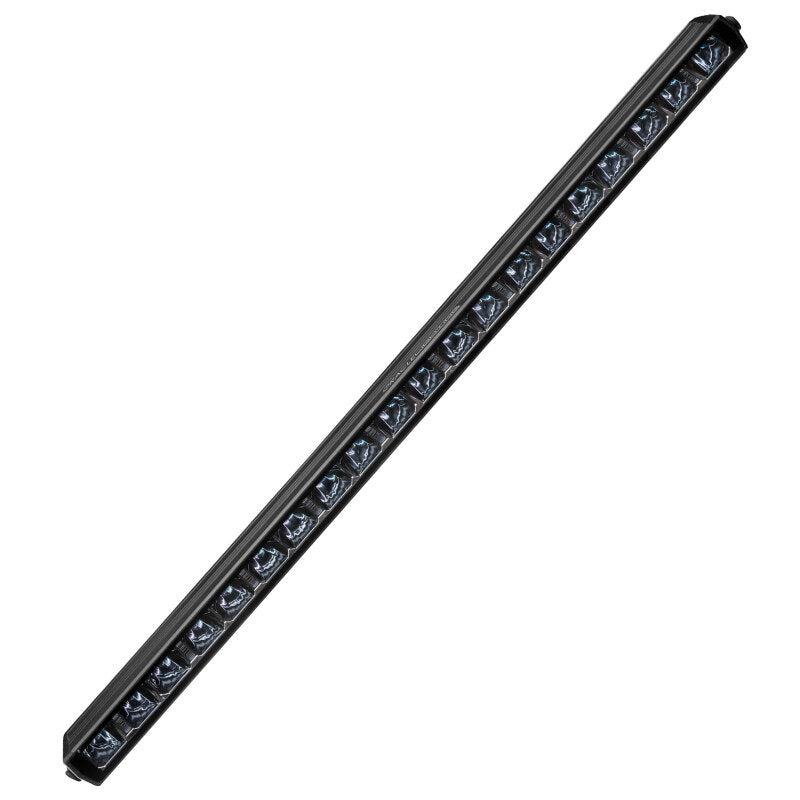

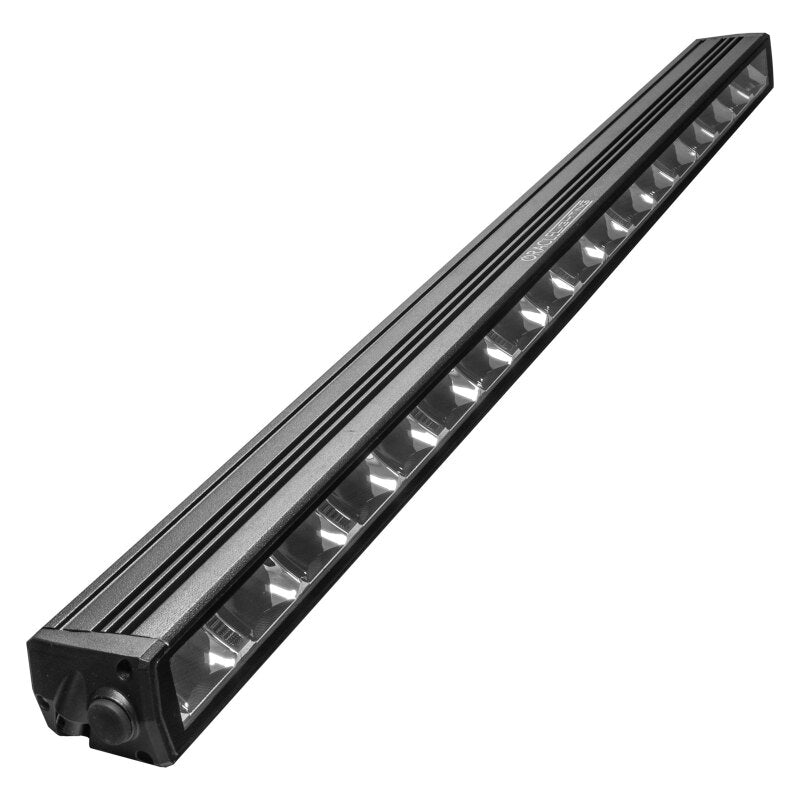

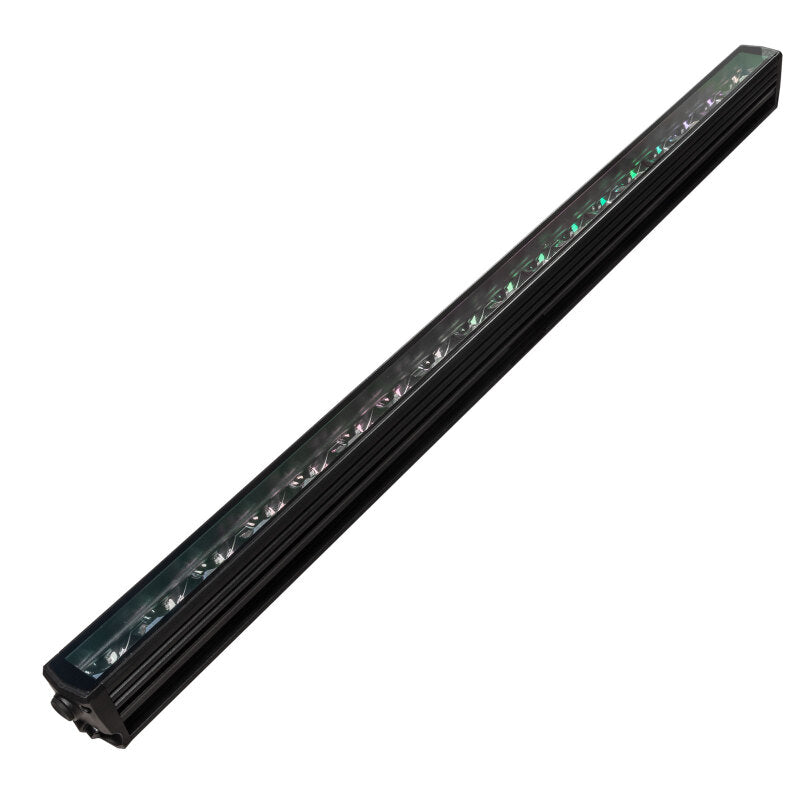

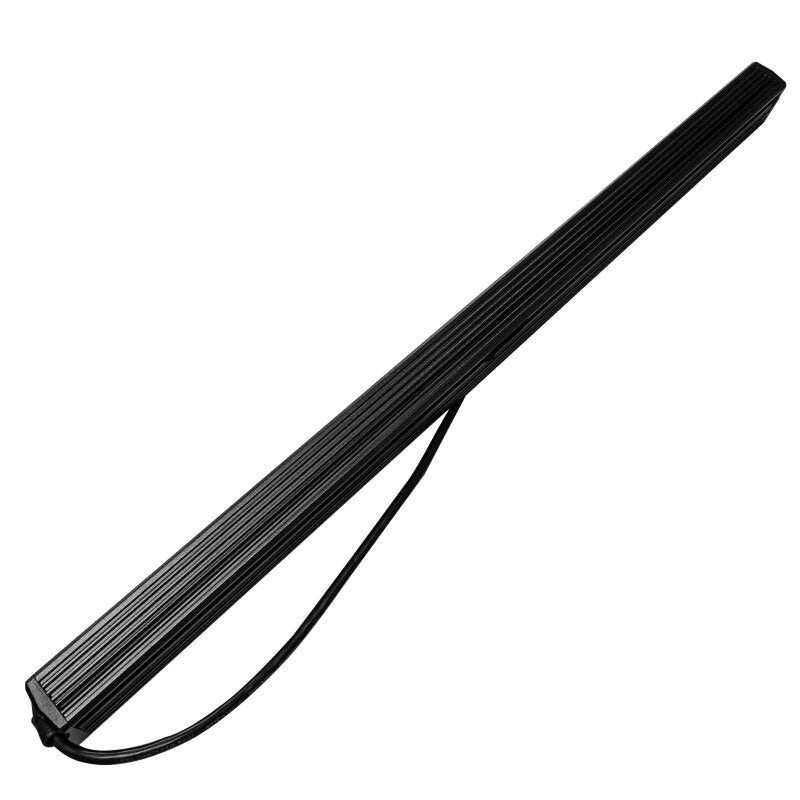

Oracle Lighting Multifunction Reflector-Facing Technology LED Light Bar - 30in- 5900-30-023

5900 Series RFT LED Light Bars

Ultra-slim, patent-pending RFT (Reflector Facing Technology) LED light bars engineered for long-range driving beam performance with integrated amber/white clearance lighting, versatile mounting, and efficient thermal management.

Overview

Using the latest RFT (Reflector Facing Technology) optics to optimize LED efficacy, the ORACLE 5900 Series LED Light Bars stand apart from traditional light bars with a patent-pending design focused on performance, fitment flexibility, and modern styling.

The ultra-slim housing makes mounting easier in a wider range of applications, while the included heavy-duty brackets provide versatile installation options where bulkier bars may not fit.

Integrated amber and white LED clearance lights add marker/running light functionality for enhanced visibility, while the RFT optic system delivers an effective range of up to 2000 feet at 1 lux.

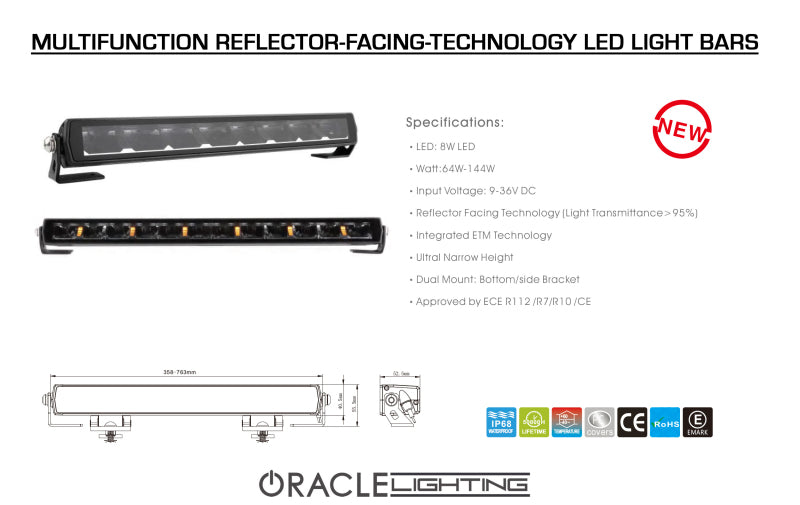

Product Features

• Patent-pending Reflector Facing Technology (RFT) optic system for optimized LED efficacy
• Ultra-slim housing for easier mounting and fitment in tight spaces

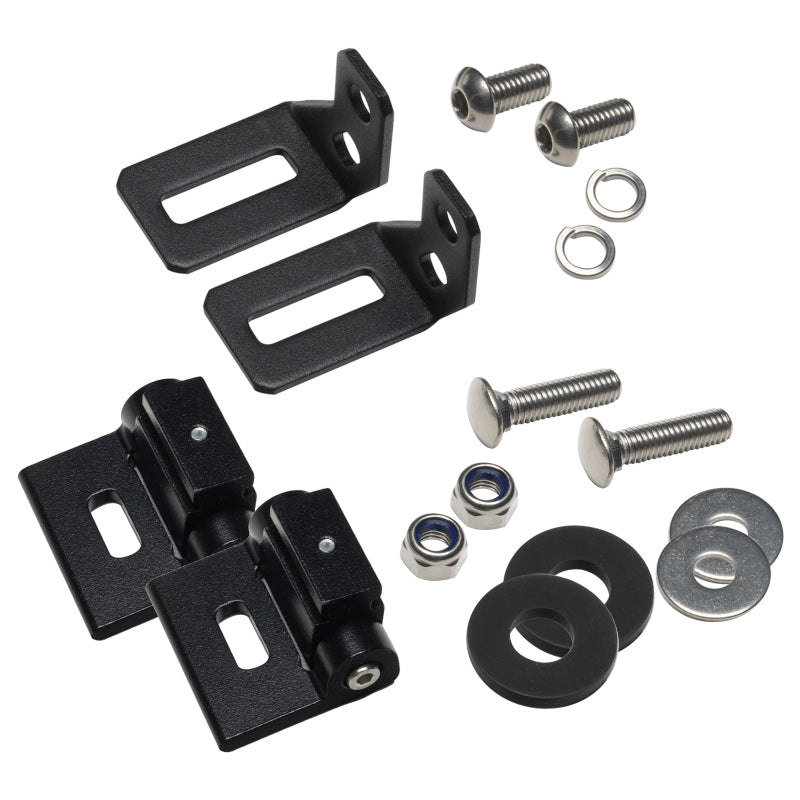

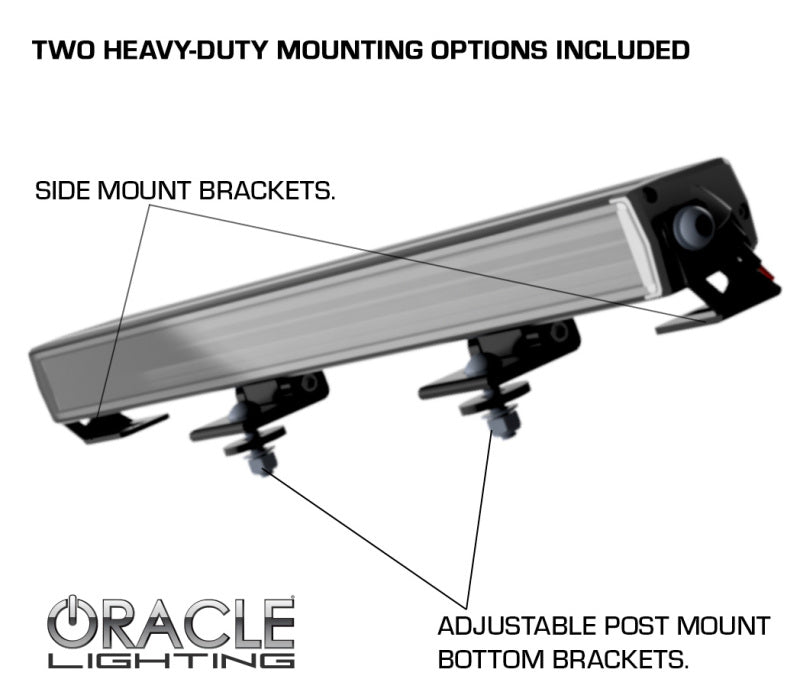

• Dual heavy-duty mounting brackets for versatile installation options
• Electronic Thermal Management (EMT) for improved reliability and performance
• Amber + White clearance lights for integrated DRL/marker light functionality

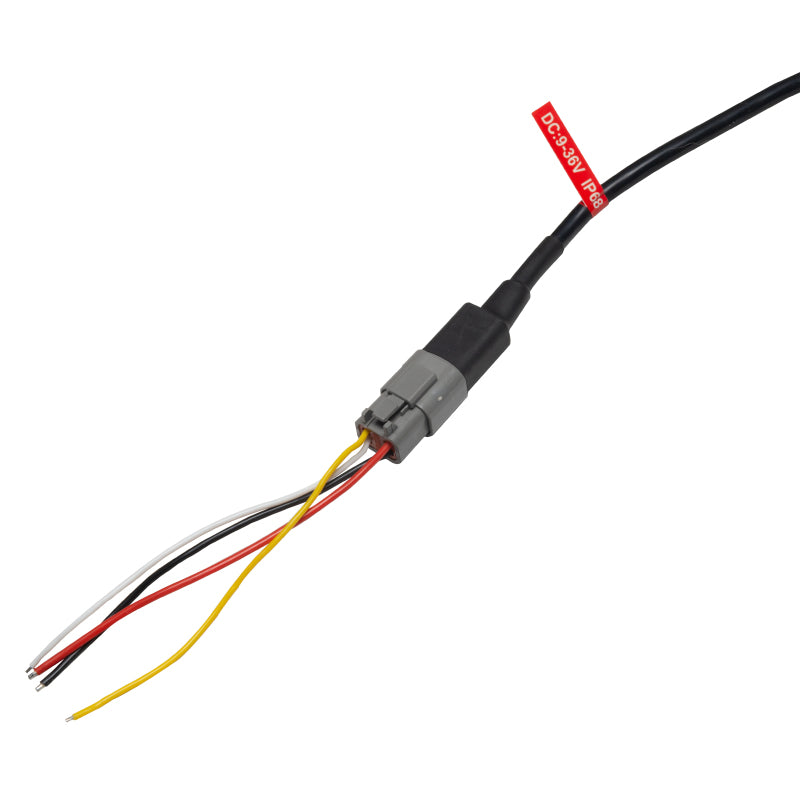

• 4-pin Deutsch waterproof connector
• Beam Angle: 40° Driving Beam
• Color Temperature: 5500K-6000K
• Certifications: ECE R10, CE, RoHS

Performance by Size

All 5900 Series bars feature a 40° driving beam and integrated amber/white clearance lighting. Compare output and performance by size below.

5900-14-023

14"

• Raw / Effective Lumens: 6,400 / 5,400
• Peak Intensity: 159,000 cd
• Total Power: 64W
• Amp Draw: 4A @ 12V DC
• Max Projection: 1 Lux @ 399m

5900-20-023

20"

• Raw / Effective Lumens: 12,000 / 9,600
• Peak Intensity: 273,000 cd
• Total Power: 120W
• Amp Draw: 7.6A @ 12V DC
• Max Projection: 1 Lux @ 522m

5900-30-023

30"

• Raw / Effective Lumens: 14,400 / 11,500
• Peak Intensity: 342,000 cd
• Total Power: 144W
• Amp Draw: 9.2A @ 12V DC
• Max Projection: 1 Lux @ 585m

5900-50-023

50"

• Raw / Effective Lumens: 18,000 / 14,200
• Peak Intensity: 420,000 cd
• Total Power: 240W
• Amp Draw: 14.5A @ 12V DC
• Max Projection: 1 Lux @ 648m
