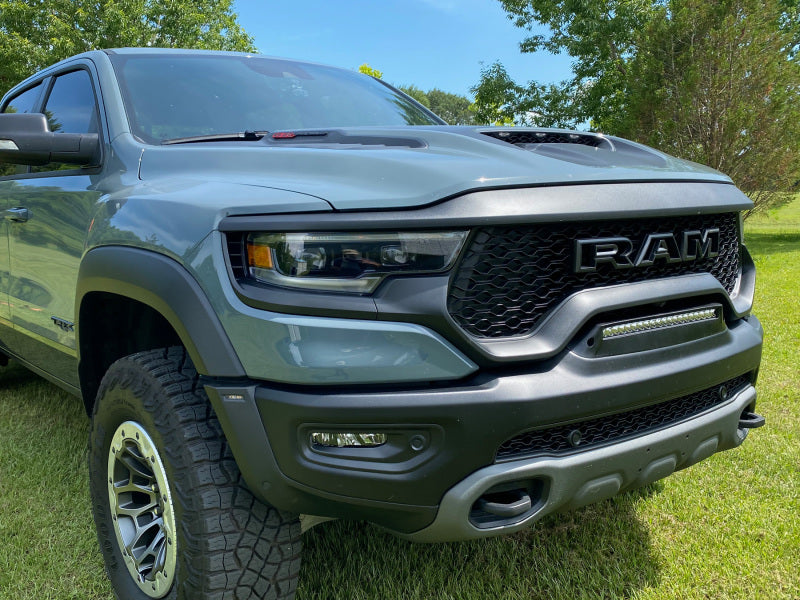

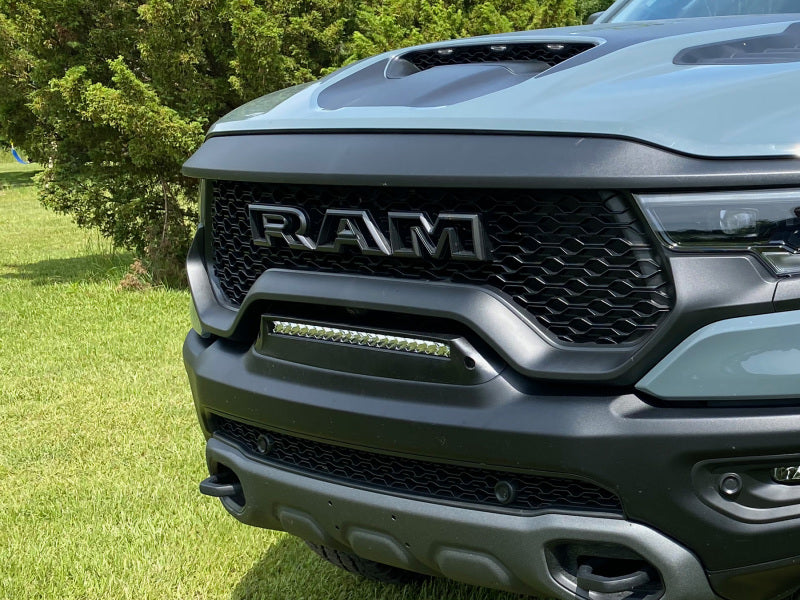

Want serious forward lighting without compromising your RAM's aggressive factory styling? ORACLE's flush-mount LED light bar delivers 12,000 lumens of high-performance illumination while seamlessly integrating into your front bumper for a clean OEM+ appearance.
Product Overview
This is not your typical bolt-on light bar. The innovative flush-mount design integrates directly into the bumper opening for a seamless, factory-installed look while delivering professional-grade lighting performance.
Whether you are conquering trails at night, navigating rural roads, or simply want the best visibility possible, this 100W LED system combines serious output with show-quality OEM+ styling.

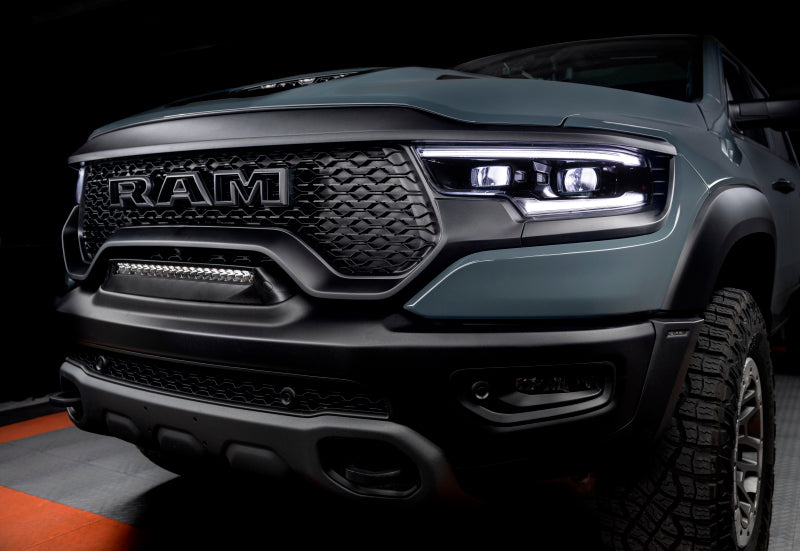

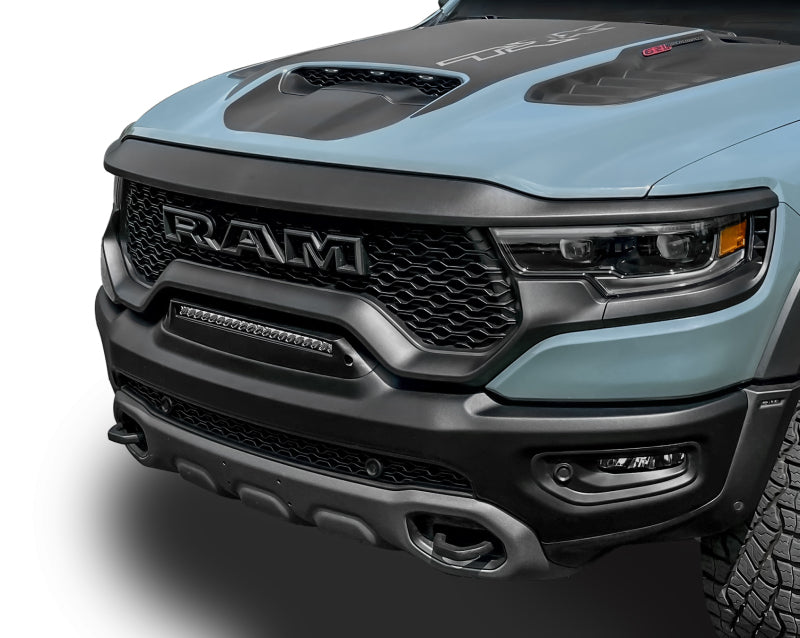

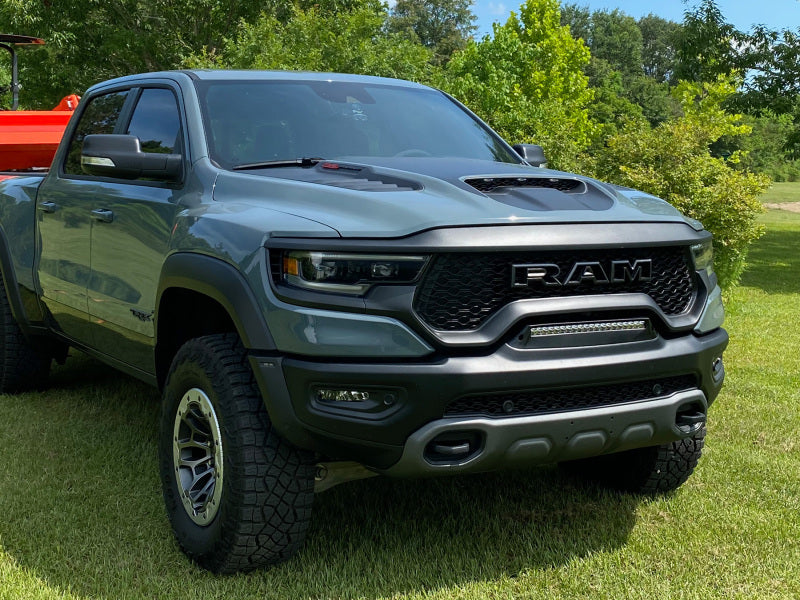

Designed specifically for RAM Rebel, TRX, and RHO applications, this system delivers high-output forward lighting without disrupting the aggressive factory appearance of the truck.
Why Choose ORACLE's Flush Mount Light Bar?
-

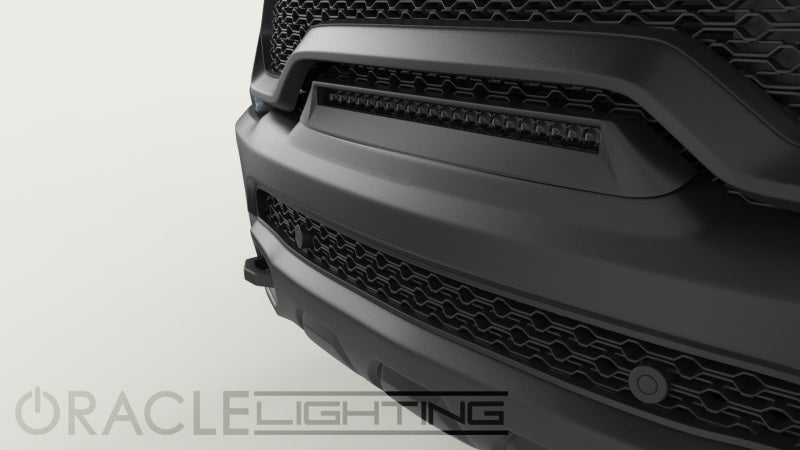

Factory Appearance, Aftermarket Performance: Flush-mount design integrates directly into the bumper opening for a seamless OEM+ look
-
Optimized Mixed Beam Pattern: 8 LEDs with 45° flood optics and 12 LEDs with 25° spot optics for balanced width and distance
-
Built for Extreme Conditions: IP69K ingress protection helps withstand mud, water, dust, and high-pressure washouts
-
Massive 12,000 Lumen Output: 100W of power from 20 premium Osram LEDs delivers professional-grade illumination
-
Multiple Color Options: Available in White, Amber, or Yellow for different weather and driving conditions
-
Clean Integration: Mounts using included rivet nuts and wires directly to factory AUX switches for a professional install
-
12,000 Raw Lumens for maximum visibility
-
100W Power Output from 20 × 5W Osram CRDP LEDs
-
Mixed Beam Pattern with 8 × 45° flood and 12 × 25° spot optics
-
54,107 Candela Output for distance and peripheral coverage
-

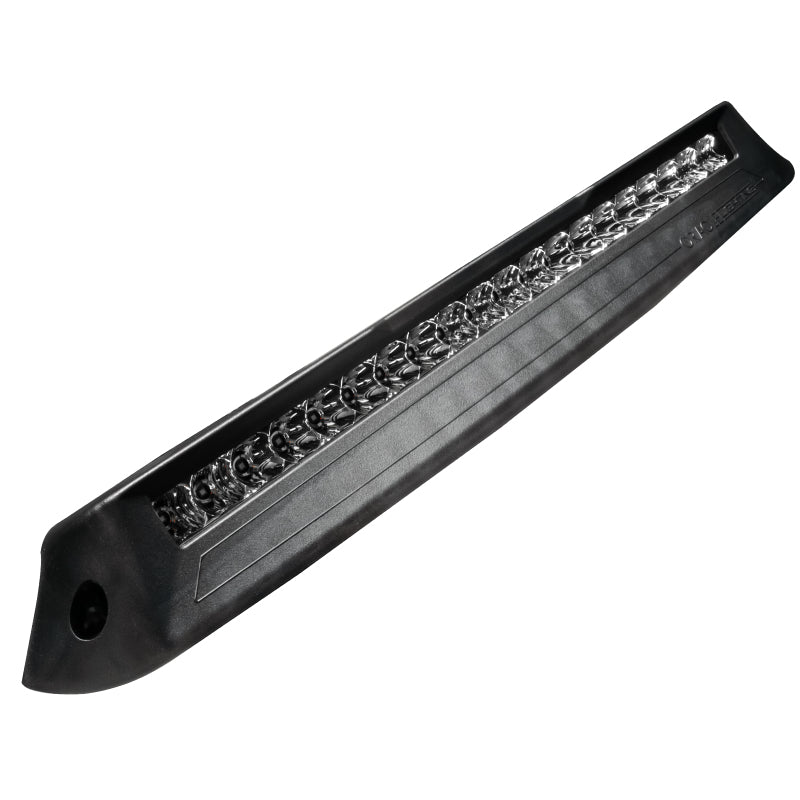

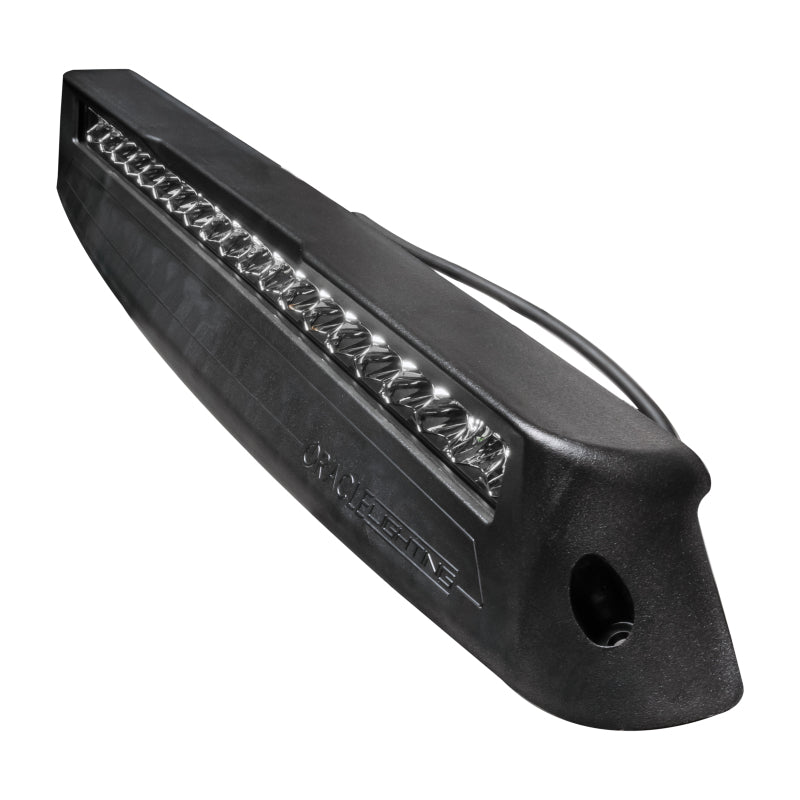

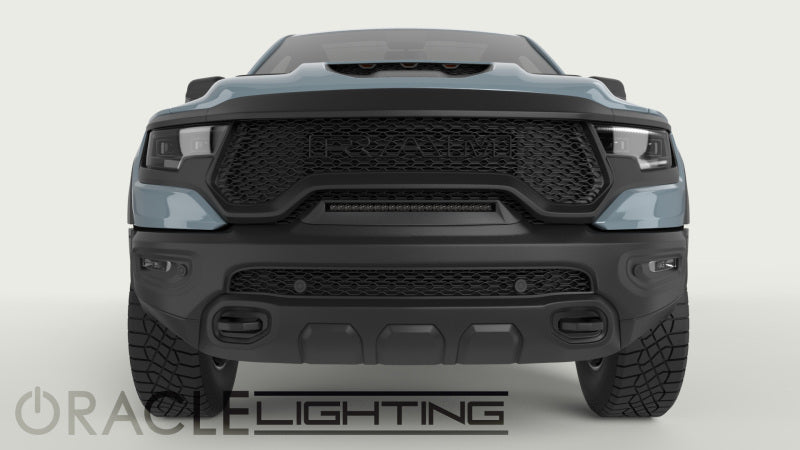

Flush-Mount Design for a clean OEM+ appearance
-
IP69K Waterproof Rating for harsh environments
-
Durable Construction with polycarbonate housing and clear Lexan lens
-
Wide Voltage Range of 9-36V DC
- 50,000+ Hour LED Lifespan
-
Multiple Color Options for different conditions
-
Factory AUX Integration for clean control
-
1-Year Warranty backed by ORACLE Lighting
Performance & Technical Specifications
-
Power Output: 100W (20 × 5W Osram CRDP LEDs)
-
Lumen Output: 12,000 Raw Lumens
-
Beam Pattern: Mixed Spot / Flood
-
Flood Optics: 8 LEDs @ 45° Flood
-
Spot Optics: 12 LEDs @ 25° Spot
-
Candela: 54,107 cd Total Output
-
Amperage: 7.5A @ 12V DC
-
LED Lifespan: 50,000+ Hours
-
Color Temperature: 5500K (White), Amber, or Yellow
-
Waterproof Rating: IP69K
-
Input Voltage: 9-36V DC
-
Housing Material: Durable Polycarbonate
-
Lens Material: Optically Clear Lexan
-
Warranty: 1-Year Limited
Vehicle Fitment
Vehicle Year Range: 2019-2026
Color Options & Applications
-
5885-001 - White (5500K): Maximum visibility for all conditions and the best all-around choice for general use, trail riding, and nighttime driving
-
5885-005 - Amber: Excellent for dust, fog, and inclement weather with reduced glare and improved visibility
-
5885-006 - Yellow: Ideal for fog and dust penetration in harsh off-road environments
-
RAM 1500 Rebel: 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
-
RAM 1500 TRX: 2021, 2022, 2023, 2024, 2025, 2026
-
RAM 1500 RHO: 2025, 2026
Confirmed Fitment: Designed specifically for RAM Rebel, TRX, and RHO front bumper integration.
What's Included

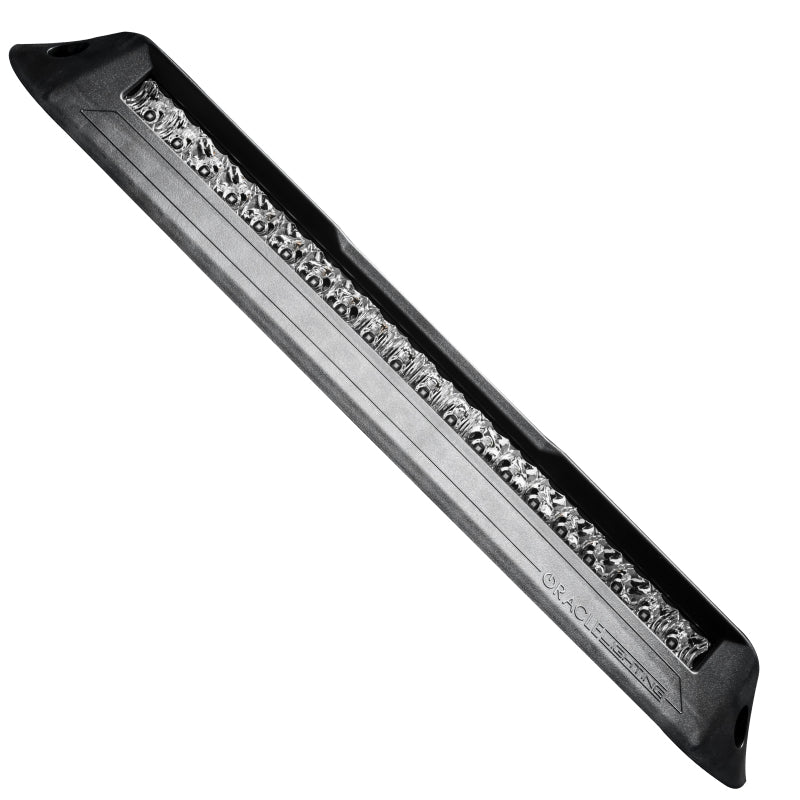

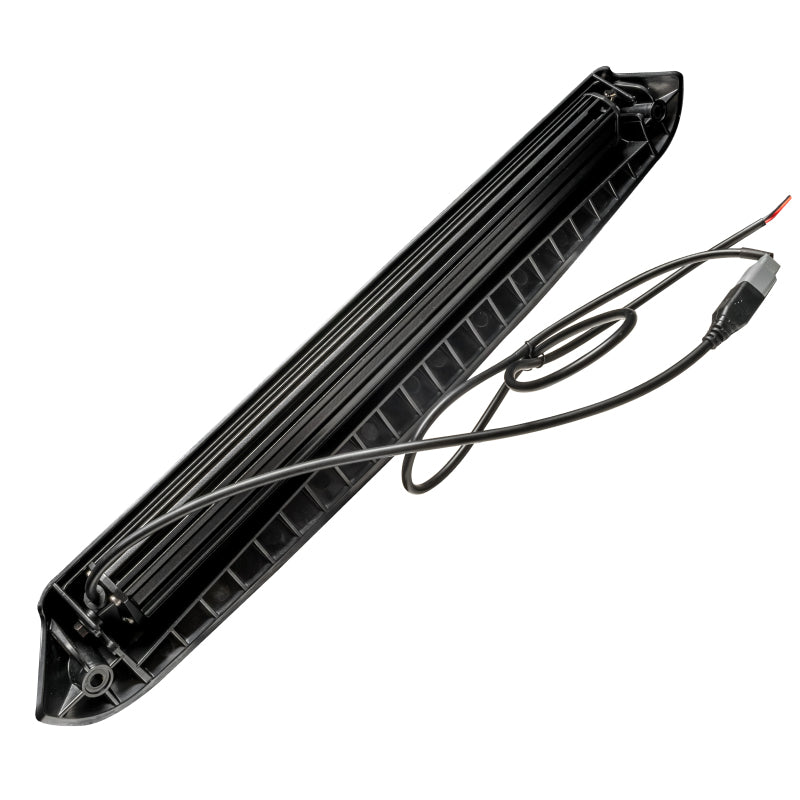

- (1) Front Bumper Flush LED Light Bar System
- Complete Mounting Hardware (Rivet Nuts Included)
- Detailed Installation Instructions
- 1-Year Manufacturer Warranty
This new auxiliary light design from ORACLE Lighting incorporates both TIR (Total Internal Reflection) and LED Reflector Facing Technology to create a high-quality light output with a precision beam pattern. By combining both optic technologies this light provides an average 30 degree beam pattern and projects up to nearly 500M overall distance. The integrated LED marker lights feature both White and Amber LEDs which can be utilized for parking lights, DRL, and/or Turn Signals.
