8,000 raw lumens of rear-facing power - dual-module VEGA pod reverse lights engineered specifically for the 2014-2023 Lexus GX460 with OE-fit factory mounting, IP69K durability, and OSRAM LED chips. Designed & engineered in the USA.
Product Overview

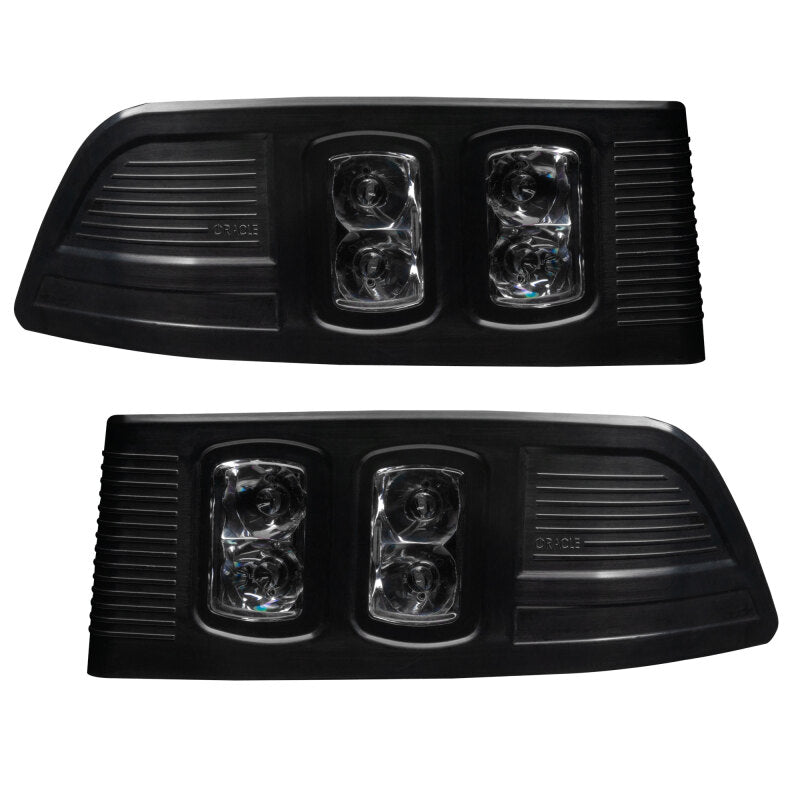

The factory GX460 contains no reverse lights in the tail light housing whatsoever - the only factory reverse illumination comes from a single backup lamp in the bumper area. The ORACLE Dual VEGA LED Reverse Light Modules fix that definitively, adding 8,000 raw lumens of precisely angled, wide-distribution LED output from four VEGA pods mounted in the rear bumper using factory hardware.
Each module features two VEGA pods set at slightly different angles, creating a wide, even flood of illumination behind the vehicle rather than a narrow hotspot. Whether navigating dark trails, backing trailers into unlit spaces, or parking in the dark, these modules transform the GX460's reverse lighting from zero to best-in-class.
Perfect companion: These modules pair seamlessly with the ORACLE Flush Lensless LED Tail Lights for 2010-2023 Lexus GX460 for the most complete rear lighting system available on the platform.
Key Features
-
8,000 raw lumens - four VEGA pods delivering wide, even rear illumination
-
Dual-angle pod positioning - two pods per module at slightly different angles for maximum coverage, minimum blind spots
-
OSRAM LED chips - premium output, no color shift, no thermal degradation over time
-
IP69K waterproof rating - highest available standard; sealed against dust, high-pressure water, and extreme weather
-
Deutsch DT connectors - OE-level, military-grade electrical reliability and vibration resistance
-
Factory mount integration - uses existing GX460 bumper hardware, no drilling or fabrication
-
Plug-and-play installation - wires directly into factory reverse light circuit, activates automatically in reverse
- Designed & engineered in the USA
-
5-Year replacement warranty - ORACLE's strongest warranty commitment
Performance & Technical Specifications
-
Raw Lumen Output: 8,000 lm
-
Pod Count: 4x VEGA Series Pods
-
Pods Per Module: 2 (dual-angle positioning)
-
LED Chips: OSRAM
-
Waterproof Rating: IP69K
-
Connectors: Deutsch DT (OE-Level)
-
Mounting: Factory GX460 Hardware
-
Activation: Auto - Factory Reverse Circuit
-
Installation: Plug-and-Play
-
Install Time: ~1 Hour
-
Warranty: 5 Years (Replacement)
-
Origin: Designed & Engineered in USA
-
Part Number: 5932-001
Vehicle Fitment
- 2014-2023 Lexus GX460 - all North American trim levels
Not compatible with 2010-2013 GX460. Earlier models use a different rear bumper architecture. For 2010-2013 GX owners, the ORACLE Flush Lensless Tail Lights (which include 40 reverse LEDs) are the appropriate reverse lighting upgrade.
What's Included
- (1) Pair - Lexus GX460 Dual VEGA LED Reverse Light Modules
- Plug-and-play wiring adapters
- Installation Instructions
Frequently Asked Questions
What years does this fit?
2014-2023 Lexus GX460, all North American trim levels. Not compatible with 2010-2013 GX460 - those models use a different rear bumper architecture.
Do I need to drill or fabricate anything?
No. The modules mount using factory GX460 hardware with no drilling, no custom brackets, and no fabrication. The result looks like a factory-engineered solution.
Do these activate automatically in reverse?
Yes. The modules wire directly into the factory reverse light circuit and activate automatically whenever the vehicle is shifted into reverse. No additional switches, relays, or wiring modifications required.
Are these waterproof enough for serious off-road use?
Yes - IP69K rated, the highest ingress protection standard available. Fully sealed against dust and rated for high-pressure, high-temperature water jets. River crossings, deep mud, and pressure washing are all within the design parameters.
Should I pair these with the ORACLE GX460 Flush Lensless Tail Lights?
For maximum reverse lighting performance, yes. The tail lights deliver 40 reverse LEDs in the housing; the bumper modules add four VEGA pods delivering 8,000 additional raw lumens from bumper level. Together they create the most comprehensive reverse lighting setup available for the GX460 platform.
What warranty do these come with?
5-year replacement warranty - ORACLE's longest warranty commitment across its entire product lineup. Built with OSRAM LED chips, IP69K waterproofing, and Deutsch DT connectors, this reflects genuine engineering confidence.
How does 8,000 lumens of in-bumper reverse lighting change the experience?
Dramatically. The factory GX460 has no reverse lights in the tail light housing at all. These modules add 8,000 raw lumens of wide-distribution LED output from the bumper - transforming nighttime reversing from a liability into a non-issue for trail use, trailer backing, and dark parking environments.
