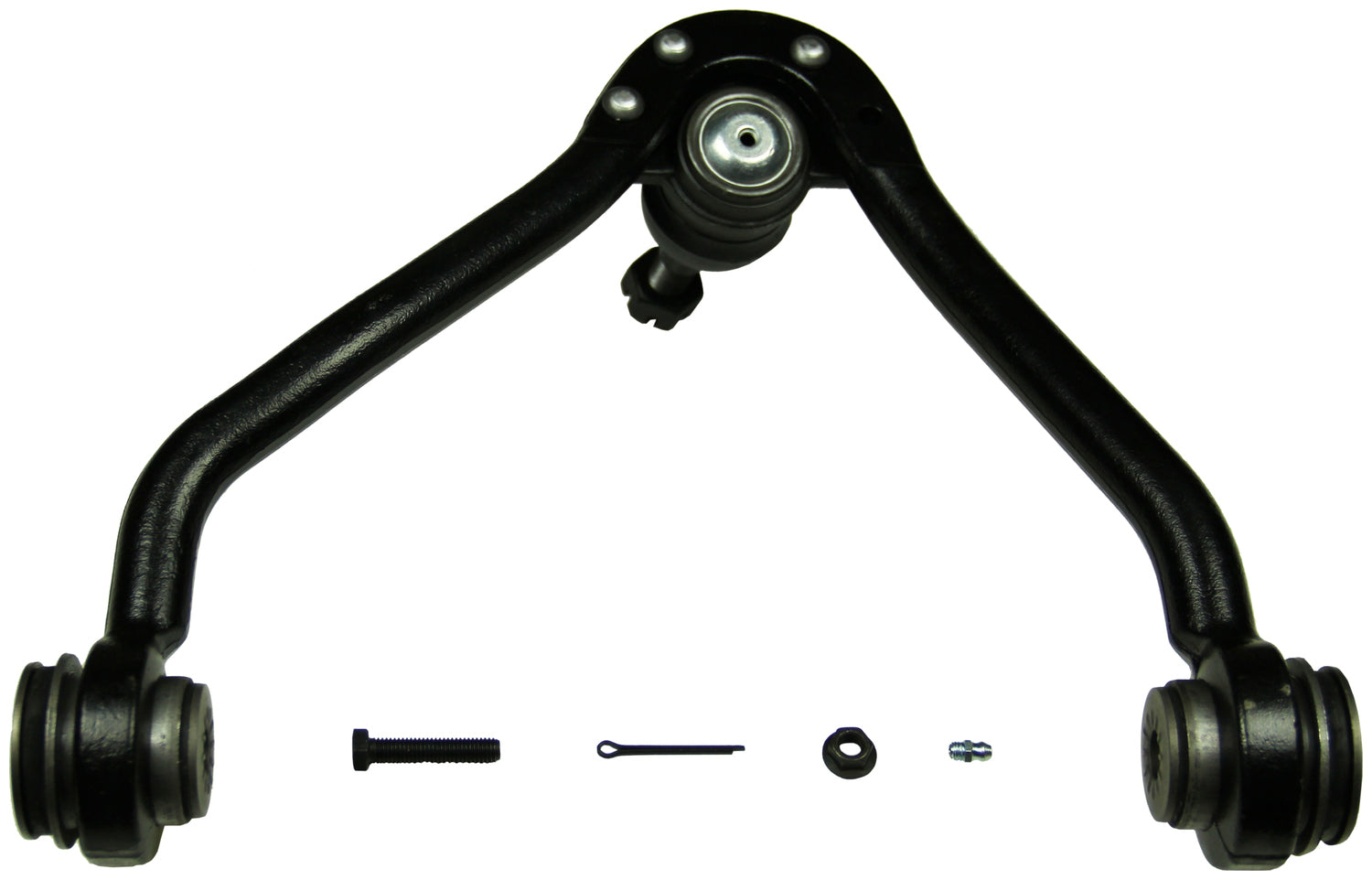

MOOG 94-99 Chevrolet C1500 Suburban Front Left Upper Control Arm - RK621233

MOOG RK621233 Front Left Upper Suspension Control Arm and Ball Joint Assembly for Chevrolet Express 3500

Features

• HARDENDED TO MAXIMIZE STRENGTH -- Studs are induction hardened to maximize strength, resist breakage and improve fatigue life
• GREASEABLE SOCKET -- Makes maintenance easy and reduces corrosion and wear by allowing new lubricant to flush contaminants
• KEEPS DIRT AND WATER OUT -- Pre-installed dust boot seal provides an effective barrier against wear-causing contaminants
• ADDED CORROSION PROTECTION -- Specially-engineered coatings are applied to metal surfaces to inhibit premature deterioration caused by rain, snow, salt and road grime
• PREMIUM BUSHINGS -- Pre-installed with optimized stiffness to inhibit noise for a comfortable ride
• QUALITY ASSURANCE -- Laser-etched ID provides visible assurance of genuine MOOG quality

Specifications

• Mounting Hardware Included: Yes
• Adjustable: No
• Bushing Material: Rubber
• Pre-Greased: Yes
• Grease Fitting Included: Yes
• Bushings Included: Yes
• Ball Joint Mounting Type: Bolt In
• Ball Joint Stud Type: Threaded
• Ball Joint Included: Yes
• Control Arm Material: Forged Steel
• Bushing Included: Yes
• Control Arm Color: Black
• Control Arm Maximum Length: 15.030 IN

Application

• 1994-1999 Chevrolet C1500 Suburban (Front Left Upper) (Liter: 6.5); 1989-2000 Chevrolet C2500 (Front Left Upper) (Qualifier: with 8,600 (lb) Gross Vehicle Weight (GVW)); 1992-1999 Chevrolet C2500 Suburban (Front Left Upper); 1989-2000 Chevrolet C3500 (Front Left Upper); 1996-2002 Chevrolet Express 2500 (Front Left Upper) (Qualifier: with 7700 (lb) & 8600 (lb) GVW); 1996-2002 Chevrolet Express 3500 (Front Left Upper); 1995-1999 GMC C1500 Suburban (Front Left Upper) (Liter: 6.5); 1989-2000 GMC C2500 (Front Left Upper) (Qualifier: with 8,600 (lb) Gross Vehicle Weight (GVW)); 1992-1999 GMC C2500 Suburban (Front Left Upper); 1989-2000 GMC C3500 (Front Left Upper) (Qualifier: 43 (mm) Bushing Outside Diameter); 1996-2002 GMC Savana 2500 (Front Left Upper) (Qualifier: with 7700 (lb) & 8600 (lb) GVW, with 7,700 (lb) Gross Vehicle Weight (GVW), with 8,600 (lb) Gross Vehicle Weight (GVW)); 1996-2002 GMC Savana 3500 (Front Left Upper)
