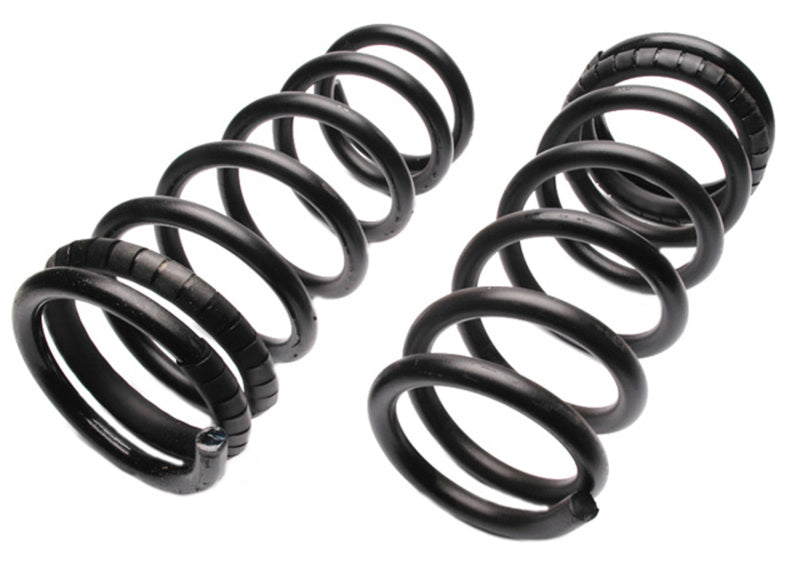

MOOG 94-02 Dodge Ram 2500 Front Coil Springs - CC1710

MOOG CC1710 Front Coil Spring Set for Dodge Ram 2500

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Squared
• End 2 Type: Tangential
• Wire Diameter: 0.82 IN, 21.00 MM
• Spring Color: Black
• Front Spring Relaxed Length: 17.78 IN, 451.60 MM
• Front Spring Compressed Length: 406.40 MM, 16.00 IN
• Bar Diameter - Inches: 0.82
• Bar Diameter - MM: 21.00
• Spring Rate - Lbs Per Inch: 400.00
• Load - Lbs: 648.00
• Installation Height - Inches: 16.00
• Installation Height - MM: 406.40
• Free Height - Inches: 17.78
• Free Height - MM: 451.60

Application

• 1994-2002 Dodge Ram 2500 (Front) (Doors: 2 & Body: Standard Cab Pickup & Liter: 5.9 & Drive: 4WD / Qualifier: with 8,800 (lb) Gross Vehicle Weight (GVW), Variable Rate); 1994-2002 Dodge Ram 3500 (Front) (Doors: 2 & Body: Cab & Chassis, Standard Cab Pickup & Liter: 5.9 & Wheel Base: 139.0, 135.0 & Drive: 4WD / Qualifier: Variable Rate)
