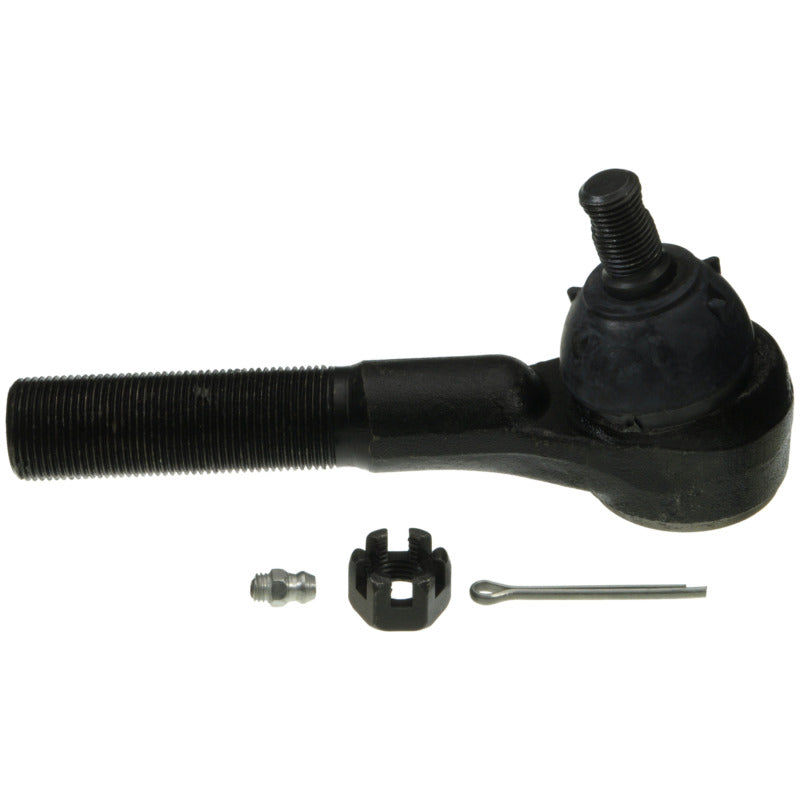

MOOG 91-01 Jeep Cherokee At Pitman Arm / Front Left Outer / Left Outer Tie Rod End - ES3096L

MOOG ES3096L At Pitman Arm; Front Left Outer Steering Tie Rod End for Jeep Wrangler

Features

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
• ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

• Type: Straight
• End 1 Thread Diameter: 22.0 MM
• End 1 Gender: Male
• End 2 Gender: Male
• Dust Boot Included: Yes
• Greaseable: Yes
• End 1 Thread Direction: Counterclockwise
• End 1 Thread Pitch: 1.5 MM
• Length - Stud Center To End: 5.420 IN
• End 2 Threads Per Inch: 20

Application

• 1991-2001 Jeep Cherokee (At Pitman Arm) (Qualifier: with 22 (mm) Threads, with Left Hand Threads, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1991-1992 Jeep Comanche (At Pitman Arm) (Qualifier: with 22 (mm) Threads, with Left Hand Threads, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1993-1998 Jeep Grand Cherokee (Front Left Outer, At Pitman Arm) (Liter: 5.2, 4.0, 5.9 / Qualifier: with 22 (mm) Threads, with Left Hand Threads, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1993 Jeep Grand Wagoneer (At Pitman Arm, Front Left Outer) (Qualifier: with 22 (mm) Threads, with Left Hand Threads, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1991-2006 Jeep Wrangler (Front Left Outer, At Pitman Arm) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1997-2006 Jeep TJ (At Pitman Arm) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
