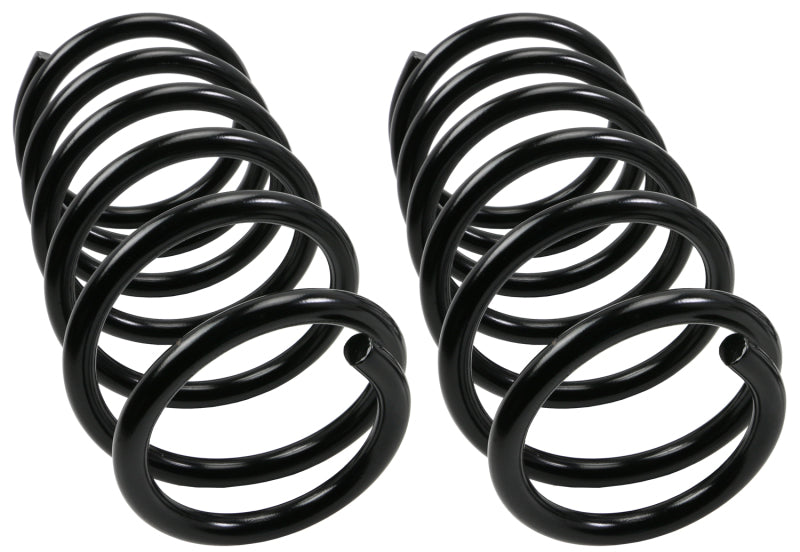

MOOG 89-95 Toyota 4Runner Rear Coil Springs - CC255

MOOG CC255 Coil Spring Set for Toyota 4Runner

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Squared
• End 2 Type: Pigtail
• Wire Diameter: 16.30 MM, 0.64 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 13.00 IN, 330.20 MM
• Rear Spring Compressed Length: 8.75 IN, 222.30 MM
• Rear Spring Outside Diameter: 6.610 IN
• ID - Inches: 5.33
• ID - MM: 135.40
• Bar Diameter - Inches: 0.64
• Bar Diameter - MM: 16.30
• Spring Rate - Lbs Per Inch: 211.00
• Load - Lbs: 870.00
• Installation Height - Inches: 8.75
• Installation Height - MM: 222.30
• Free Height - Inches: 13.00
• Free Height - MM: 330.20

Application

• 1989-1995 Toyota 4Runner (Rear) (Qualifier: Variable Rate)
