MOOG 88-97 Chevrolet C1500 Front Coil Springs - CC650

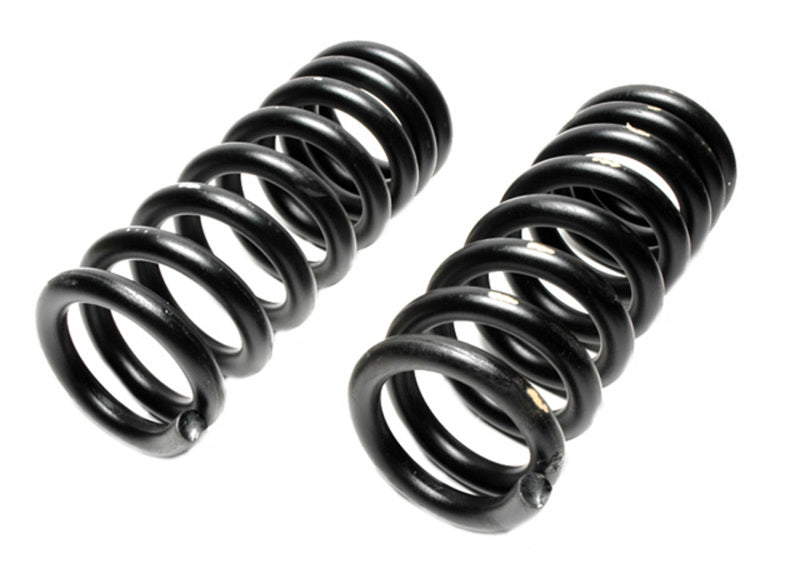

MOOG CC650 Front Coil Spring Set for Chevrolet C1500

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Squared
• End 2 Type: Tangential
• Wire Diameter: 23.00 MM, 0.90 IN
• Spring Color: Black
• Front Spring Outside Diameter: 5.860 IN
• Front Spring Relaxed Length: 15.00 IN, 381.00 MM
• Front Spring Compressed Length: 323.90 MM, 12.75 IN
• ID - Inches: 4.08
• ID - MM: 103.60
• Bar Diameter - Inches: 0.90
• Bar Diameter - MM: 23.00
• Spring Rate - Lbs Per Inch: 1025.00
• Load - Lbs: 2325.00
• Installation Height - Inches: 12.75
• Installation Height - MM: 323.90
• Free Height - Inches: 15.00
• Free Height - MM: 381.00

Application

• 1988-1997 Chevrolet C1500 (Front) (Liter: 5.0, 5.7, 7.4 & Fuel: GAS / Qualifier: Heavy Duty, with Air Conditioning, Variable Rate); 1992-1997 Chevrolet C1500 Suburban (Front) (Liter: 5.7 / Qualifier: Heavy Duty, Variable Rate); 1988-1997 Chevrolet C2500 (Front) (Doors: 2 & Body: Standard Cab Pickup, Extended Cab Pickup & Liter: 5.0, 5.7 & Fuel: GAS / Qualifier: Heavy Duty, Variable Rate); 1992-1997 Chevrolet C2500 Suburban (Front) (Liter: 5.7 / Qualifier: Variable Rate); 1988-1992 Chevrolet C3500 (Front) (Liter: 5.7 / Qualifier: Variable Rate); 1988-1997 GMC C1500 (Front) (Liter: 5.0, 5.7 & Fuel: GAS / Qualifier: Heavy Duty, with Air Conditioning, Variable Rate); 1992-1997 GMC C1500 Suburban (Front) (Liter: 5.7 / Qualifier: Heavy Duty, Variable Rate); 1988-1997 GMC C2500 (Front) (Doors: 2 & Body: Standard Cab Pickup, Extended Cab Pickup & Liter: 5.0, 5.7 / Qualifier: Heavy Duty, Variable Rate); 1992-1997 GMC C2500 Suburban (Front) (Liter: 5.7 / Qualifier: Variable Rate); 1988-1992 GMC C3500 (Front) (Liter: 5.7 / Qualifier: Variable Rate)
