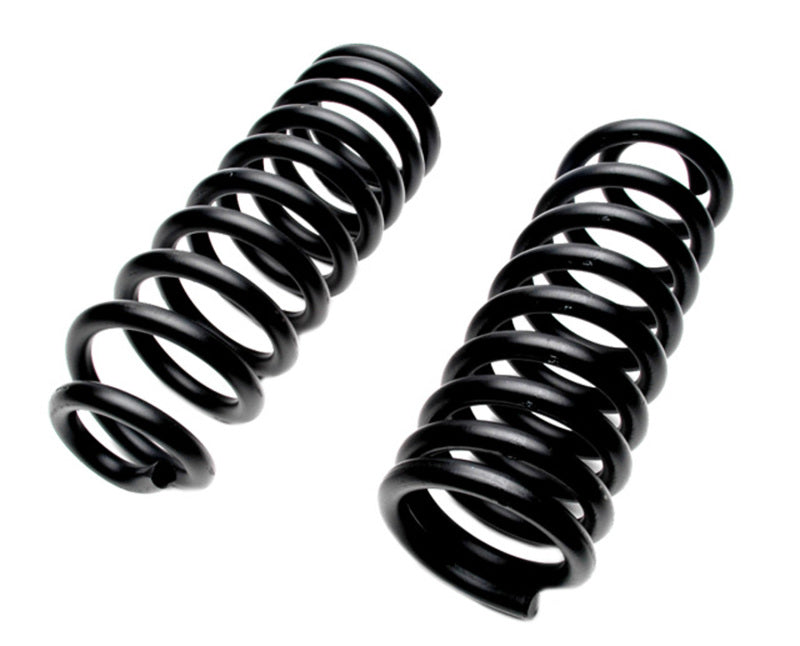

MOOG 83-97 Ford Ranger Front Coil Springs - CC840

MOOG CC840 Front Coil Spring Set for Ford Ranger

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Squared
• End 2 Type: Pigtail
• Wire Diameter: 16.70 MM, 0.65 IN
• Spring Color: Black
• Front Spring Outside Diameter: 4.800 IN
• Front Spring Relaxed Length: 13.75 IN, 349.30 MM
• Front Spring Compressed Length: 10.50 IN, 266.70 MM
• ID - Inches: 3.50
• ID - MM: 88.90
• Bar Diameter - Inches: 0.65
• Bar Diameter - MM: 16.70
• Spring Rate - Lbs Per Inch: 377.00
• Load - Lbs: 1323.00
• Installation Height - Inches: 10.50
• Installation Height - MM: 266.70
• Free Height - Inches: 13.75
• Free Height - MM: 349.30

Application

• 1983-1997 Ford Ranger XLT S XL Sport Splash XL Sport (Front) (Doors: 2 & Body: Standard Cab Pickup, Cab & Chassis, Extended Cab Pickup & Liter: 2.0, 2.2, 2.3, 2.8, 2.9, 3.0, 4.0 & Fuel: DIESEL, GAS & Transmission Base Type: Transmission & Transmission Control Type: Manual, Automatic & Wheel Base: 114.0, 108.0 & Drive: RWD, 4WD / Qualifier: Heavy Duty, Variable Rate, with Air Conditioning, without Air Conditioning); 1994-1997 Mazda B2300 (Front) (Doors: 2 & Body: Extended Cab Pickup, Standard Cab Pickup & Wheel Base: 114.0, 108.0 & Drive: RWD, 4WD / Qualifier: Heavy Duty, without Air Conditioning, Variable Rate, with Air Conditioning); 1994-1997 Mazda B3000 (Front) (Doors: 2 & Body: Standard Cab Pickup & Wheel Base: 108.0 / Qualifier: Standard Duty, Variable Rate); 1994-1997 Mazda B4000 (Front) (Doors: 2 & Body: Standard Cab Pickup & Wheel Base: 108.0 & Drive: 4WD / Qualifier: Heavy Duty, without Air Conditioning, Variable Rate)
