MOOG 82-98 Ford Mustang GT SVO L LX SVT Cobra Rear Coil Springs - CC827

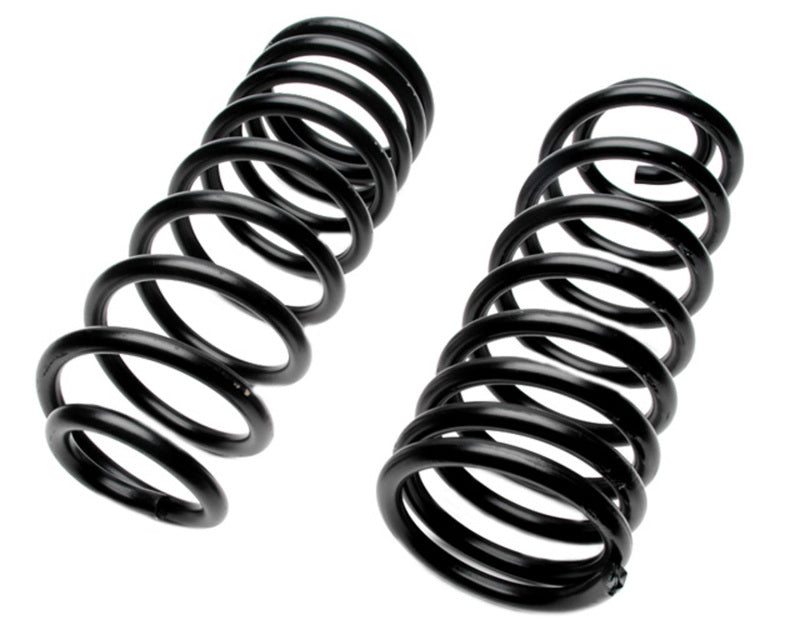

MOOG CC827 Coil Spring Set for Ford Mustang

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Squared
• End 2 Type: Pigtail
• Wire Diameter: 13.70 MM, 0.54 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 350.50 MM, 13.80 IN
• Rear Spring Compressed Length: 241.30 MM, 9.50 IN
• Rear Spring Outside Diameter: 5.110 IN
• ID - Inches: 4.03
• ID - MM: 102.40
• Bar Diameter - Inches: 0.54
• Bar Diameter - MM: 13.70
• Spring Rate - Lbs Per Inch: 174.00
• Load - Lbs: 691.00
• Installation Height - Inches: 9.50
• Installation Height - MM: 241.30
• Free Height - Inches: 13.80
• Free Height - MM: 350.50

Application

• 1982-1998 Ford Mustang GT SVO L LX SVT Cobra (Rear) (Aspiration: Turbocharged & Doors: 2 & Body: Hatchback, Convertible, Sedan, Coupe & Liter: 5.0, 3.8, 2.3, 4.6 & Transmission Base Type: Transmission & Transmission Control Type: Automatic / Qualifier: Variable Rate); 1982-1986 Mercury Capri RS (Rear) (Liter: 5.0, 4.2, 2.3, 3.8 / Qualifier: Variable Rate)
