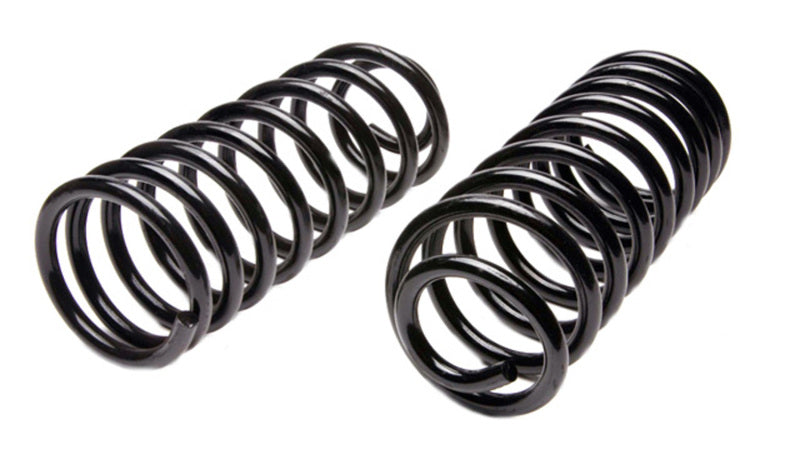

MOOG 79-95 Ford Mustang LX L GT SVO Rear Coil Springs - CC835

MOOG CC835 Coil Spring Set for Ford Mustang

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Squared
• End 2 Type: Pigtail
• Wire Diameter: 13.70 MM, 0.54 IN
• Spring Color: Black
• Rear Spring Relaxed Length: 13.50 IN, 342.90 MM
• Rear Spring Compressed Length: 9.13 IN, 231.90 MM
• Rear Spring Outside Diameter: 5.110 IN
• ID - Inches: 4.03
• ID - MM: 102.40
• Bar Diameter - Inches: 0.54
• Bar Diameter - MM: 13.70
• Spring Rate - Lbs Per Inch: 174.00
• Load - Lbs: 691.00
• Installation Height - Inches: 9.13
• Installation Height - MM: 231.90
• Free Height - Inches: 13.50
• Free Height - MM: 342.90

Application

• 1979-1995 Ford Mustang LX L GT SVO (Rear) (Doors: 2 & Body: Sedan, Hatchback, Convertible, Coupe & Liter: 3.3, 2.3, 2.8, 5.0, 4.2, 3.8 & Transmission Base Type: Transmission & Transmission Control Type: Automatic / Qualifier: Variable Rate); 1979-1982 Mercury Capri Base Ghia GS Black Magic L (Rear) (Aspiration: Naturally Aspirated, Turbocharged & Liter: 3.3, 2.3, 2.8, 5.0, 4.2 / Qualifier: Variable Rate)
