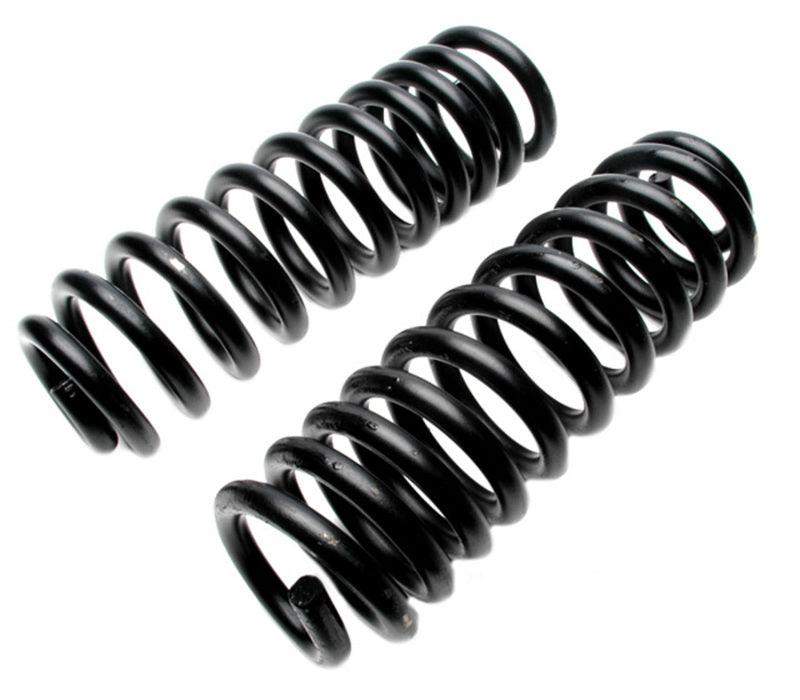

MOOG 78-91 Ford E-250 Econoline Custom Front Coil Springs - CC860

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Pigtail
• Wire Diameter: 20.60 MM, 0.81 IN
• Spring Color: Black
• Front Spring Outside Diameter: 5.650 IN
• Front Spring Relaxed Length: 18.31 IN, 465.10 MM
• Front Spring Compressed Length: 15.50 IN, 393.70 MM
• ID - Inches: 4.03
• ID - MM: 102.40
• Bar Diameter - Inches: 0.81
• Bar Diameter - MM: 20.60
• Spring Rate - Lbs Per Inch: 512.00
• Load - Lbs: 1510.00
• Installation Height - Inches: 15.50
• Installation Height - MM: 393.70
• Free Height - Inches: 18.31
• Free Height - MM: 465.10

Application

• 1978-1991 Ford E-250 Econoline Custom (Front) (Liter: 5.8, 4.9, 7.5, 6.6, 5.0 / Qualifier: Heavy Duty, Except Super Van and Parcel Delivery, Variable Rate, Except Heavy Duty, Over 7,200 (lb) Gross Vehicle Weight (GVW), Under 7,200 (lb) Gross Vehicle Weight (GVW), Except Parcel Delivery); 1978-1991 Ford E-250 Econoline Club Wagon Custom (Front) (Liter: 5.8, 7.5, 4.9, 6.6, 7.3 & Fuel: DIESEL / Qualifier: Heavy Duty, Except Super Van and Parcel Delivery, Variable Rate, Except Heavy Duty, Over 7,200 (lb) Gross Vehicle Weight (GVW), Under 7,200 (lb) Gross Vehicle Weight (GVW), Except Parcel Delivery); 1978-1991 Ford E-350 Econoline (Front) (Liter: 7.5, 6.6, 5.8, 6.9, 4.9, 7.3 / Qualifier: Heavy Duty, Under 9,550 (lb) Gross Vehicle Weight (GVW), Except Super Van and Parcel Delivery, Variable Rate, with Air Conditioning, Over 9,550 (lb) Gross Vehicle Weight (GVW)); 1978-1991 Ford E-350 Econoline Club Wagon (Front) (Liter: 4.9, 6.6, 5.8, 7.5, 6.9, 7.3 / Qualifier: Heavy Duty, Under 9,550 (lb) Gross Vehicle Weight (GVW), with Air Conditioning, Except Super Van and Parcel Delivery, Variable Rate, Over 9,550 (lb) Gross Vehicle Weight (GVW))
