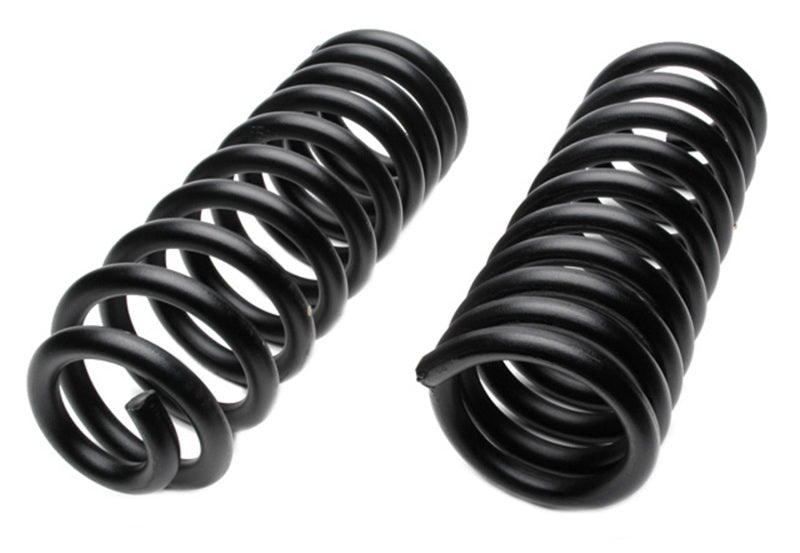

MOOG 65-79 Ford F-100 Front Coil Springs - CC808

MOOG CC808 Front Coil Spring Set for Ford F-100

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Tangential
• End 2 Type: Pigtail
• Wire Diameter: 0.71 IN, 18.20 MM
• Spring Color: Black
• Front Spring Outside Diameter: 5.460 IN
• Front Spring Relaxed Length: 404.90 MM, 15.94 IN
• Front Spring Compressed Length: 292.10 MM, 11.50 IN
• ID - Inches: 4.00
• ID - MM: 101.60
• Bar Diameter - Inches: 0.71
• Bar Diameter - MM: 18.20
• Spring Rate - Lbs Per Inch: 383.00
• Load - Lbs: 1700.00
• Installation Height - Inches: 11.50
• Installation Height - MM: 292.10
• Free Height - Inches: 15.94
• Free Height - MM: 404.90

Application

• 1965-1979 Ford F-100 (Front) (Doors: 2 & Body: Standard Cab Pickup, Cab & Chassis & Drive: RWD / Qualifier: Heavy Duty, Variable Rate); 1975-1979 Ford F-150 (Front) (Doors: 2 & Body: Standard Cab Pickup, Cab & Chassis & Drive: RWD / Qualifier: Heavy Duty, Variable Rate); 1965-1979 Ford F-250 (Front) (Doors: 2 & Body: Standard Cab Pickup, Cab & Chassis & Liter: 4.9, 5.9, 6.4, 5.0, 3.9 / Qualifier: Under 6,900 (lb) Gross Vehicle Weight (GVW), Variable Rate)
