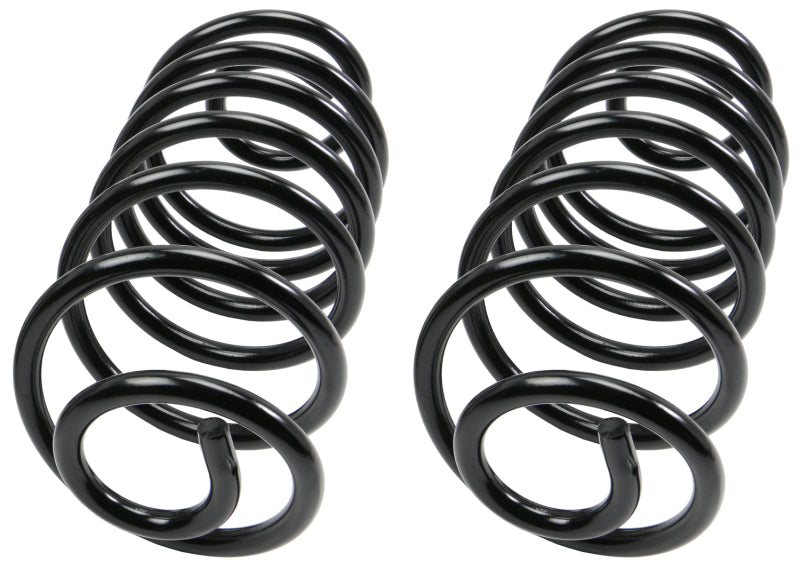

MOOG 1967 Buick Skylark Rear Coil Springs - CC501

MOOG CC501 Coil Spring Set for Chevrolet Chevelle

Features

• 100% Load tested
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications

• Spring Type: Variable Rate
• End 1 Type: Pigtail
• End 2 Type: Pigtail
• Wire Diameter: 0.61 IN, 15.50 MM
• Spring Color: Black
• Rear Spring Relaxed Length: 12.63 IN, 320.80 MM
• Rear Spring Compressed Length: 203.20 MM, 8.00 IN
• Rear Spring Outside Diameter: 6.750 IN
• ID - Inches: 5.53
• ID - MM: 140.50
• Bar Diameter - Inches: 0.61
• Bar Diameter - MM: 15.50
• Spring Rate - Lbs Per Inch: 175.00
• Load - Lbs: 810.00
• Installation Height - Inches: 8.00
• Installation Height - MM: 203.20
• Free Height - Inches: 14.05 IN
• Free Height - MM: 320.80

Application

• 1967 Buick Skylark (Rear) (Doors: 2, 4 & Body: Convertible, Coupe, Hardtop & Liter: 3.7, 6.6, 5.6, 4.9 / Qualifier: Variable Rate); 1967-1969 Buick Special Base (Rear) (Doors: 2, 4 & Body: Coupe, Sedan & Liter: 4.9, 5.6, 3.7, 5.7, 4.1 / Qualifier: Variable Rate); 1967-1972 Chevrolet Chevelle (Rear) (Doors: 2, 4 & Body: Convertible, Sedan, Hardtop, Coupe & Liter: 6.5, 3.8, 4.1, 4.6, 5.3, 5.0, 5.7, 7.4, 6.6 / Qualifier: Variable Rate); 1967-1971 Oldsmobile F85 Base (Rear) (Doors: 2, 4 & Body: Coupe, Sedan, Hardtop & Liter: 5.4, 4.1 / Qualifier: Variable Rate); 1967-1972 Oldsmobile Cutlass Base S (Rear) (Doors: 2, 4 & Body: Coupe, Sedan, Convertible, Hardtop & Liter: 5.4, 4.1, 5.7 / Qualifier: Variable Rate); 1967 Oldsmobile Cutlass Supreme (Rear) (Doors: 2, 4 & Body: Coupe, Convertible, Hardtop, Sedan & Liter: 5.4 / Qualifier: Variable Rate); 1969-1971 Pontiac Grand Prix (Rear) (Doors: 2 & Body: Hardtop, Coupe & Liter: 6.6, 7.0 / Qualifier: Variable Rate); 1967 Pontiac LeMans (Rear) (Liter: 5.3, 3.8 / Qualifier: Variable Rate); 1967-1970 Pontiac Tempest (Rear) (Doors: 2, 4 & Body: Convertible, Coupe, Sedan & Liter: 5.3, 3.8, 6.6, 5.7 / Qualifier: Variable Rate)
