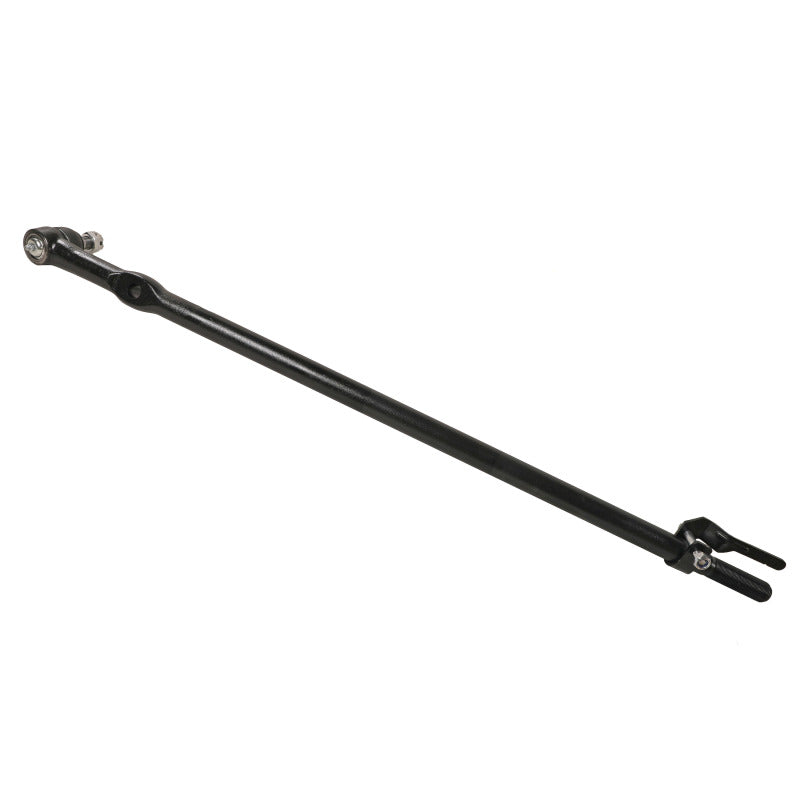

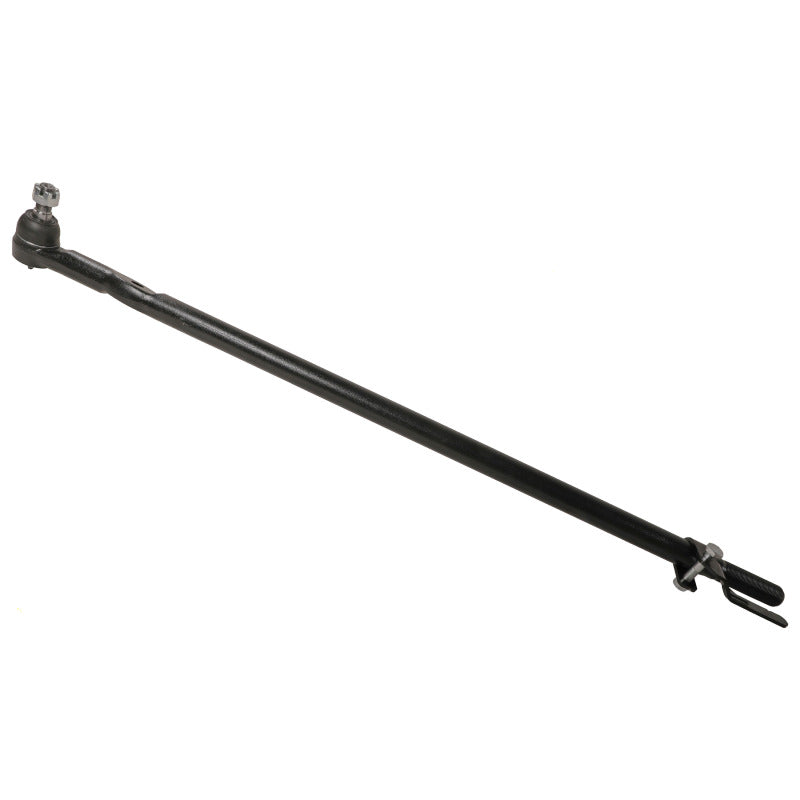

MOOG 17-22 Ford F-250 Super Duty At Pitman Arm Center/Drag Link - DS300041

MOOG DS300041 At Pitman Arm Steering Drag Link for Ford F-250 Super Duty

Features

• Powdered metal gusher bearing design enables grease to flow through bearing
• Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
• Exclusive cover plate protects against contaminants leaking into the bearing surface
• Full ball metal stud provides 360-degree; of smooth, consistent, rotational movement resulting in more responsive steering

Specifications

• Material: Forged Steel
• Type: Straight
• Mounting Hardware Included: Yes
• End 1 Gender: Male
• End 2 Gender: Male
• Stud Thread Diameter: 16 MM
• Dust Boot Included: Yes
• Greaseable: Yes
• Length - Stud Center To End: 939.8 MM, 37 IN

Application

• 2020-2022 Ford F-600 Super Duty (At Pitman Arm) (Qualifier: 37 (in) from Stud Center to Body End, Bent Pitman Arm); 2011-2022 Ford F-450 Super Duty (At Pitman Arm) (Qualifier: with Wide Track Axle, 37 (in) from Stud Center to Body End, Bent Pitman Arm); 2011-2022 Ford F-550 Super Duty (At Pitman Arm) (Qualifier: 37 (in) from Stud Center to Body End, Bent Pitman Arm)
