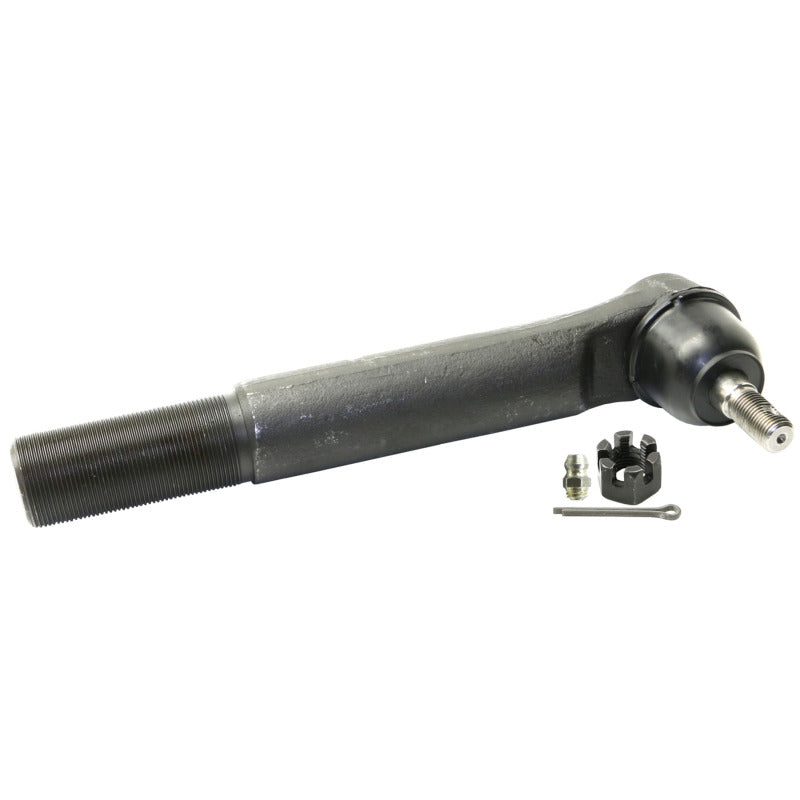

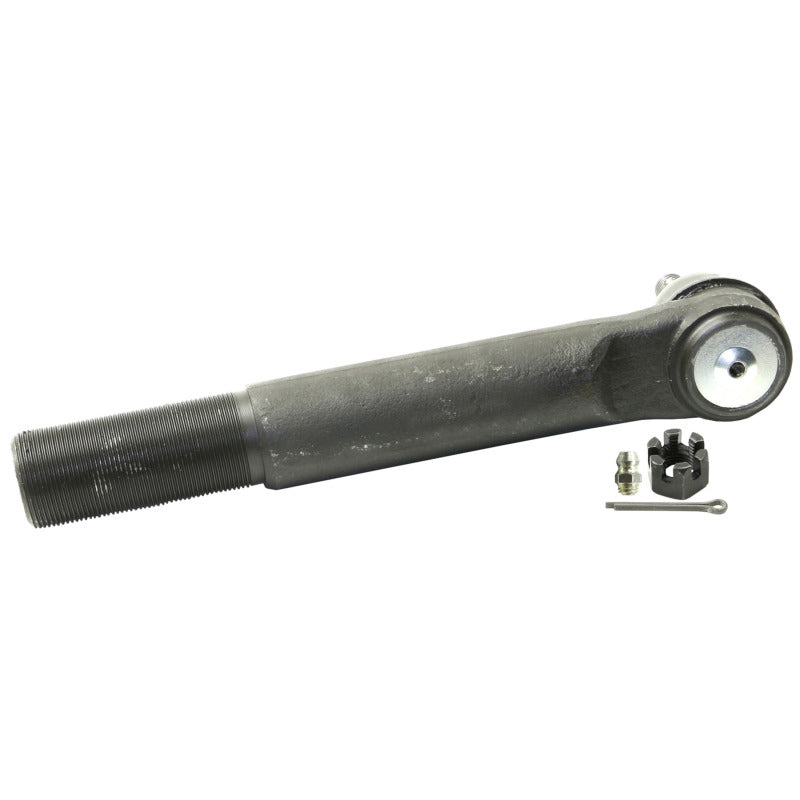

MOOG 11-13 Ram 2500 Front Left Outer / Left Outer Tie Rod End - ES800532

MOOG ES800532 Front Left Outer Steering Tie Rod End for Dodge Ram 2500

Features

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
• ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

• Type: Straight
• End 1 Gender: Male
• End 2 Gender: Male
• End 2 Thread Diameter: 14.0 MM
• End 1 Thread Direction: Clockwise
• End 2 Thread Direction: Clockwise
• End 2 Thread Pitch: 1.5 MM
• Length - Stud Center To End: 10.010 IN
• End 1 Threads Per Inch: 16

Application

• 2011-2013 Ram 2500 (Front Left Outer) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2011-2013 Ram 3500 (Front Left Outer) (Doors: 2, 4 & Body: Cab & Chassis & Steering: Gear & Steering System: Power / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2008 Dodge Ram 1500 (Front Left Outer) (Drive: 4WD / Qualifier: with 8 Lug Wheels, Bracket Mounted Steering Damper, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2003-2010 Dodge Ram 2500 (Front Left Outer) (Drive: 4WD / Qualifier: Bracket Mounted Steering Damper, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2003-2010 Dodge Ram 3500 (Front Left Outer) (Steering: Gear & Steering System: Power / Qualifier: Bracket Mounted Steering Damper, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
