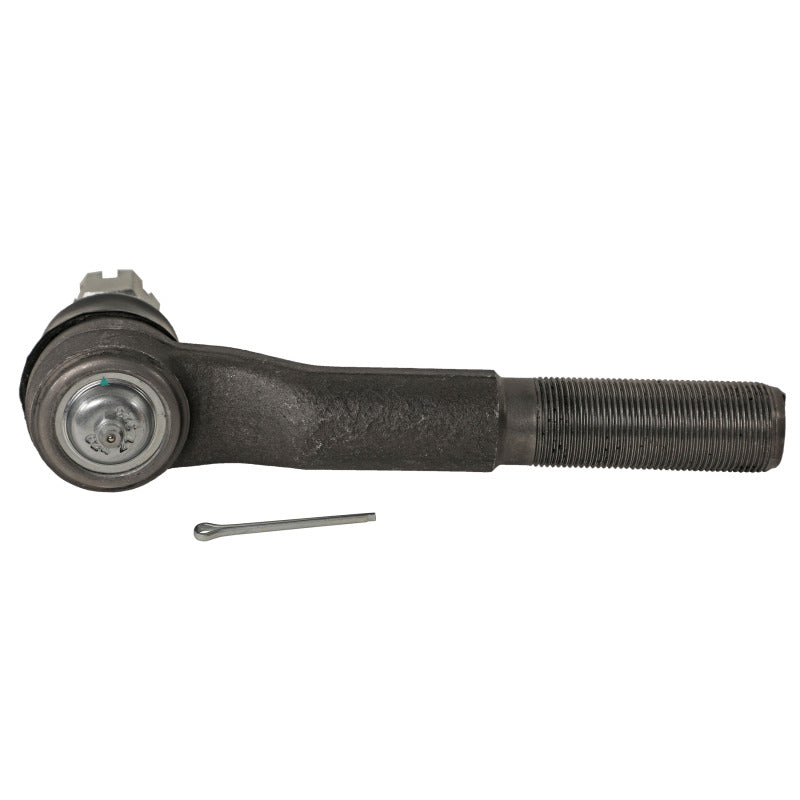

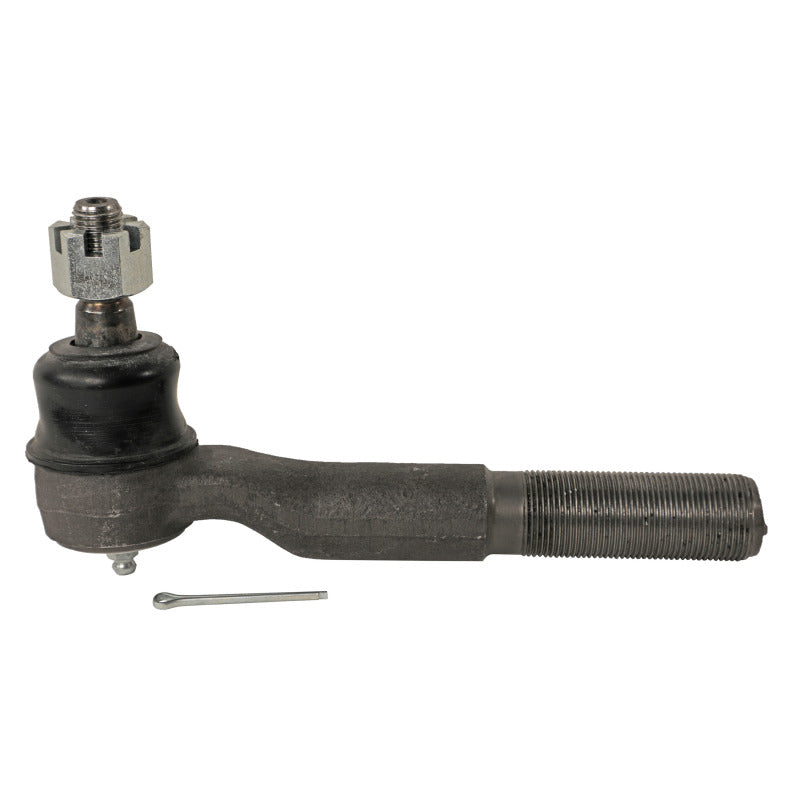

MOOG 08-16 Ford F-250 Super Duty Front Left Outer Tie Rod - ES800484

MOOG ES800484 Front Left Outer; Front Outer Steering Tie Rod End for Ford F-250 Super Duty

Features

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
• ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

• Type: Straight
• End 1 Thread Diameter: 1.000 IN
• End 1 Gender: Male
• End 2 Gender: Male
• End 2 Thread Diameter: 14.0 MM
• End 1 Thread Direction: Clockwise
• End 2 Thread Direction: Clockwise
• End 2 Thread Pitch: 1.5 MM
• Length - Stud Center To End: 7.240 IN
• End 1 Threads Per Inch: 16

Application

• 2008-2016 Ford F-250 Super Duty (Front Left Outer, Front Outer) (Drive: RWD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2008-2016 Ford F-350 Super Duty (Front Left Outer, Front Outer) (Drive: RWD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
