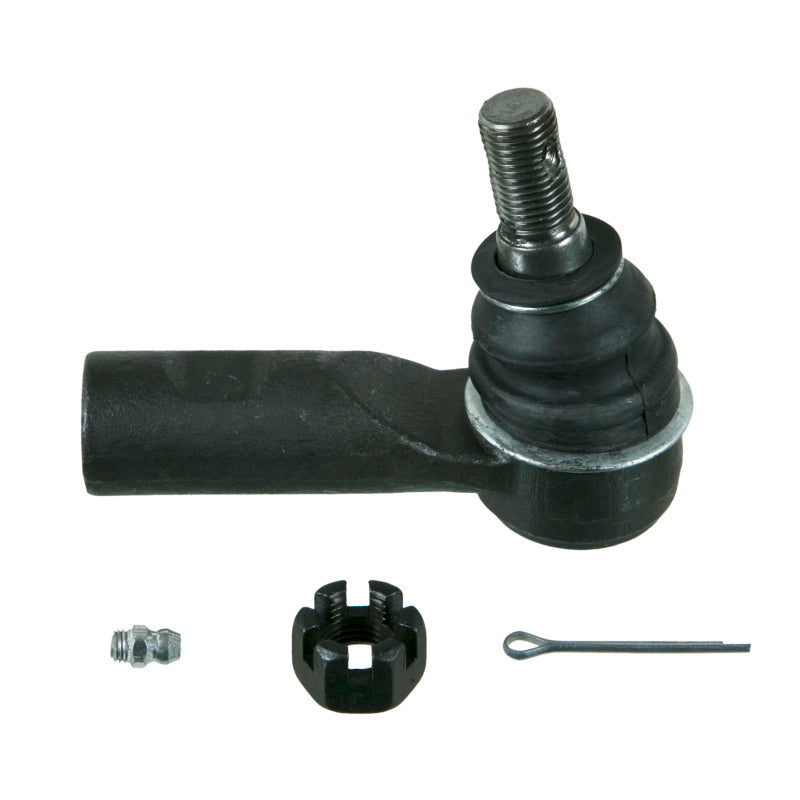

MOOG 07-09 Dodge Sprinter 2500 Front Outer / Outer Tie Rod - ES800419

MOOG ES800419 Front Outer Steering Tie Rod End for Mercedes-Benz Sprinter 2500

Features

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
• ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

• Type: Straight
• End 1 Thread Diameter: 16.0 MM
• End 1 Gender: Female
• End 2 Gender: Female
• Dust Boot Included: Yes
• End 2 Thread Diameter: 14.0 MM
• Greaseable: Yes
• End 1 Thread Direction: Clockwise
• End 2 Thread Pitch: 1.5 MM
• End 1 Thread Pitch: 1.5 MM
• Length - Stud Center To End: 3.530 IN

Application

• 2007-2009 Dodge Sprinter 2500 (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2007-2009 Dodge Sprinter 3500 (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2007-2021 Freightliner Sprinter 2500 (Front Outer) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2007-2021 Freightliner Sprinter 3500 (Front Outer) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2021 Freightliner Sprinter 4500 (Front Outer) (Drive: 4 X 4 / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2019-2021 Freightliner Sprinter 3500XD (Front Outer) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2010-2022 Mercedes-Benz Sprinter 2500 (Front Outer) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2010-2022 Mercedes-Benz Sprinter 3500 (Front Outer) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2019-2024 Mercedes-Benz Sprinter 4500 (Front Outer) (Drive: 4 X 4 / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2018-2022 Mercedes-Benz Sprinter 3500XD (Front Outer) (Drive: 4WD / Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
