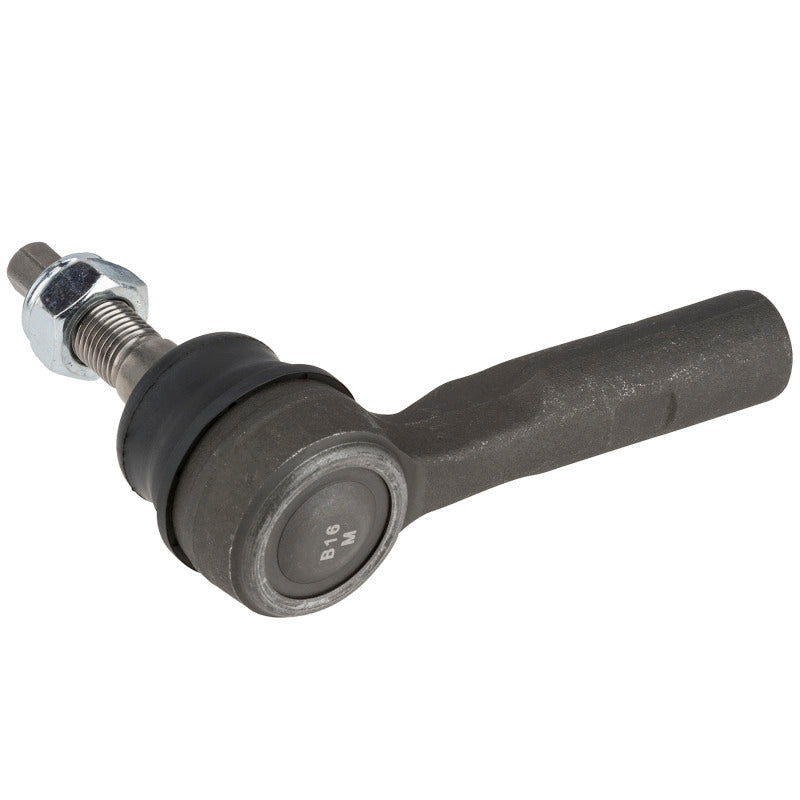

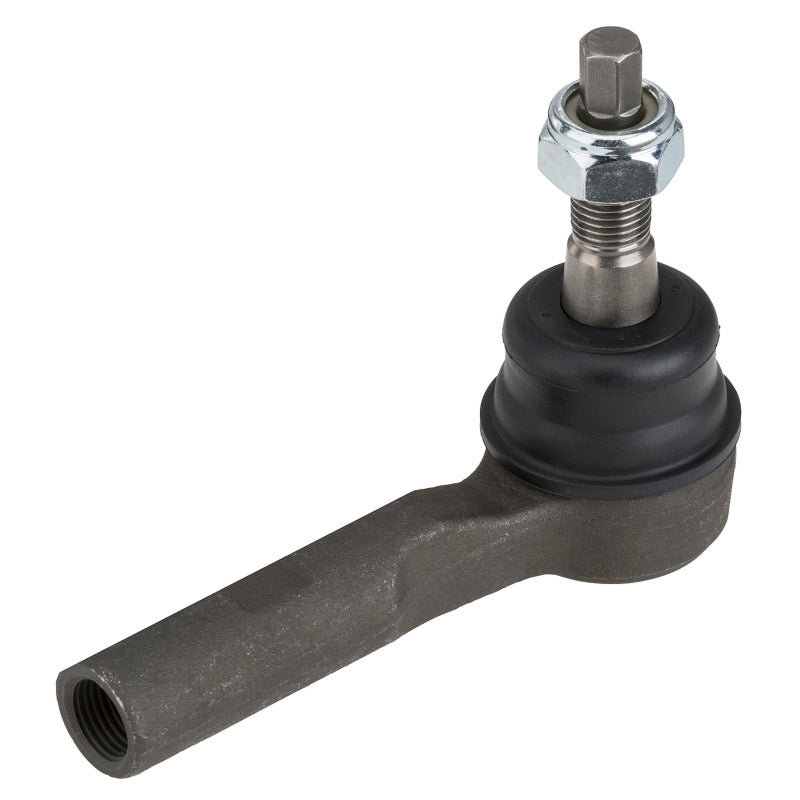

MOOG 06 Isuzu i-280 Front Outer / Outer Tie Rod End - ES800464

MOOG ES800464 Front Outer Steering Tie Rod End for Chevrolet Colorado

Features

• RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
• GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
• ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
• PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
• STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
• COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
• RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Specifications

• Type: Straight
• End 1 Thread Diameter: 16.0 MM
• End 1 Gender: Female
• End 2 Gender: Female
• Dust Boot Included: Yes
• End 2 Thread Diameter: 14.0 MM
• Greaseable: Yes
• End 1 Thread Direction: Clockwise
• End 2 Thread Direction: Clockwise
• End 2 Thread Pitch: 1.5 MM
• End 1 Thread Pitch: 1.5 MM
• Length - Stud Center To End: 4.540 IN

Application

• 2006 Isuzu i-280 (Front Outer) (Qualifier: with 16 (mm) Thread Tie Rod Ends, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2006 Isuzu i-350 (Front Outer) (Qualifier: with 16 (mm) Thread Tie Rod Ends, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2007-2008 Isuzu i-290 (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2007-2008 Isuzu i-370 (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2006-2012 Chevrolet Colorado (Front Outer) (Qualifier: 16 (mm) Thread on Adjusting End, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2006-2012 GMC Canyon (Front Outer) (Qualifier: 16 (mm) Thread on Adjusting End, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
