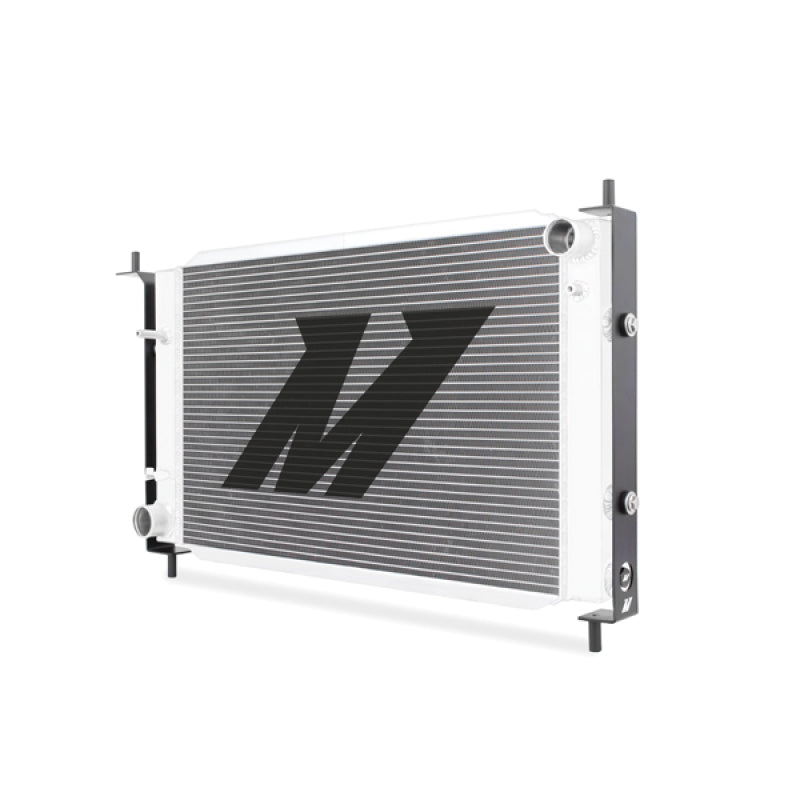

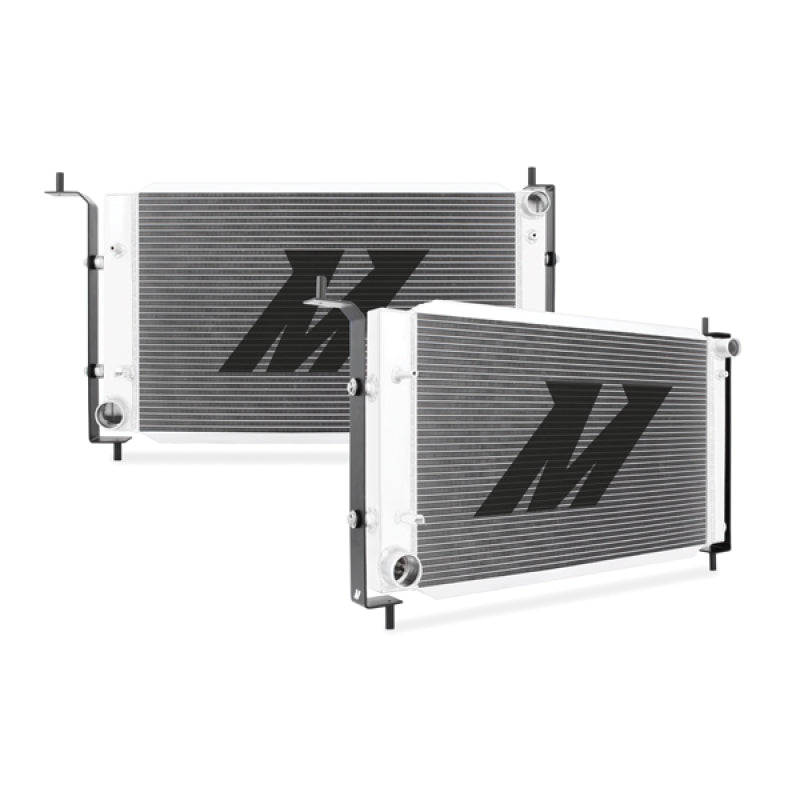

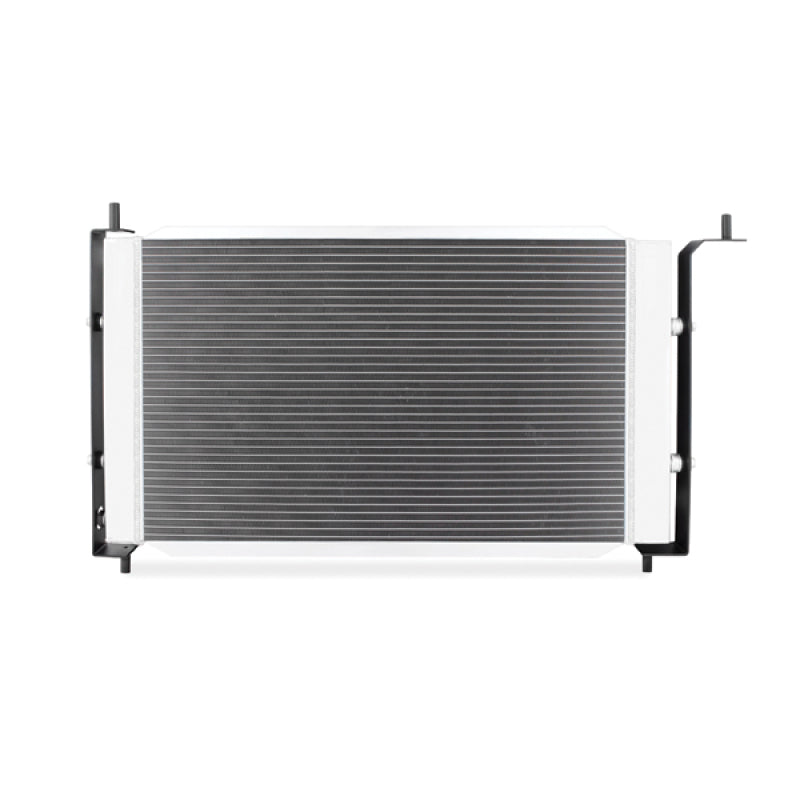

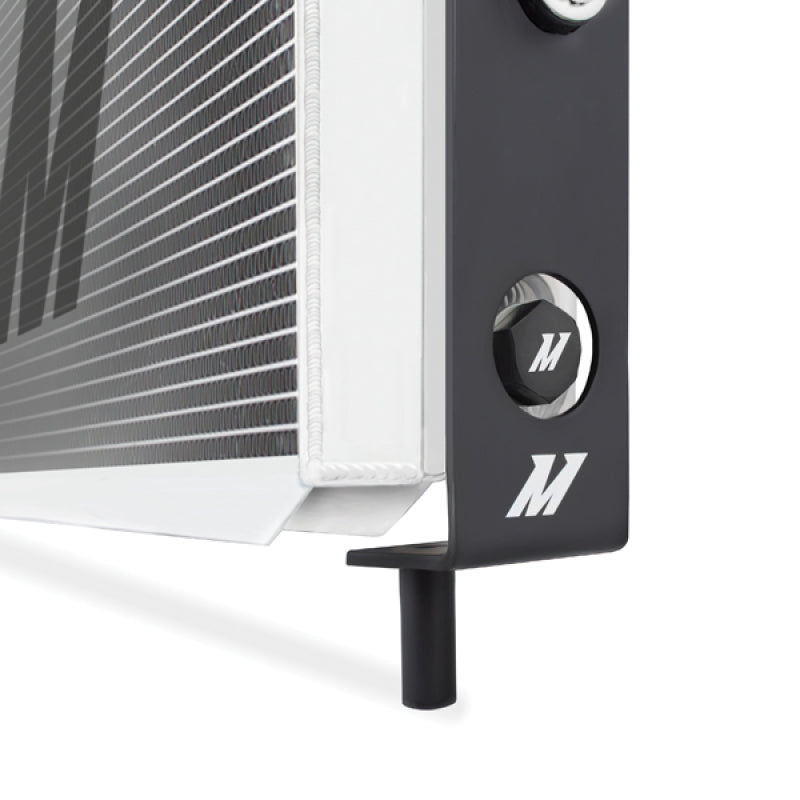

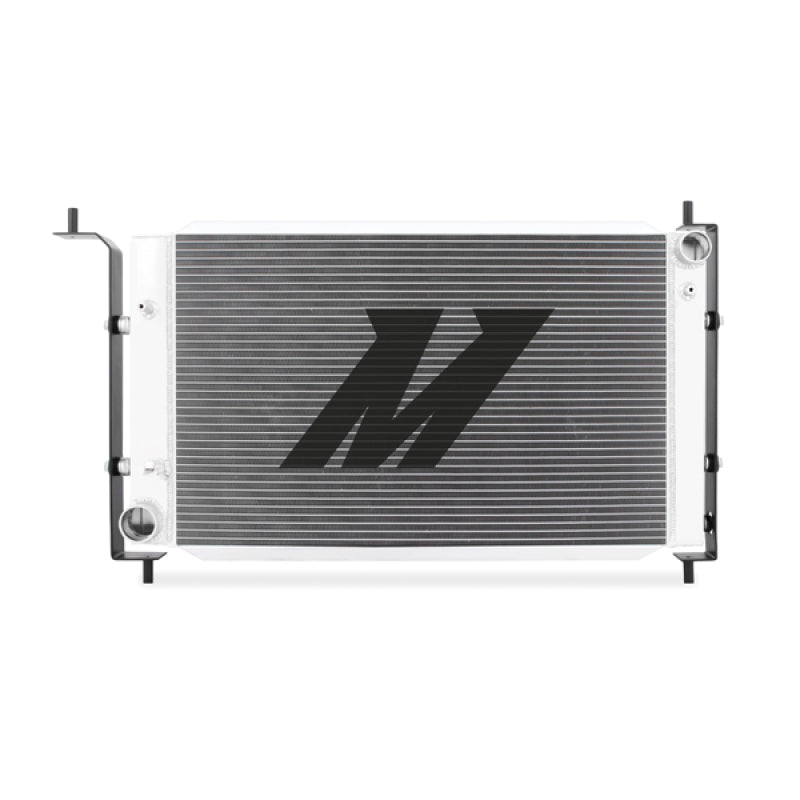

Mishimoto has released a revolutionary new radiator for the 1996 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patent-pending floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
Features and Benefits
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Perfect for use on the street or strip
Specifications
-
Core Finish: Uncoated
-
Core Height: 15.28 in
-
Core Length: 24.02 in
-
Core Row Quantity: 2
-
Down Flow Or Cross Flow Type: Cross Flow
-
Drain Plug Included: Yes
-
Drain Plug Thread Size: M12 - 1.5
-
Fluid Capacity: 3.97 gal
-
Inlet Diameter: 1.5 in
-
Outlet Location: Bottom Left
-
Overall Height: 34.8 in
-
Overall Length: 19.2 in
-
Overall Width: 4.2 in
-
Outlet Diameter: 1.77 in
-
Inlet Location: Top Right
-
Fluid Capacity (gal): 4 gal
-
Rows: 2
-
Inlet (in): 1.5
-
Outlet (in): 1.77
-
DPI: 1775
-
Engine Codes: 289ci (4.6L)
-
Chassis Codes: SN-95
-
Includes: Mishimoto Radiator; Magnetic Drain Plug w/ Dowty Oil Seal; Left & Right Brackets; (4) - Rubber Bushings & Metal Collars; (4) - M8 Flange Head Bolts; (4) - M8 Washers
