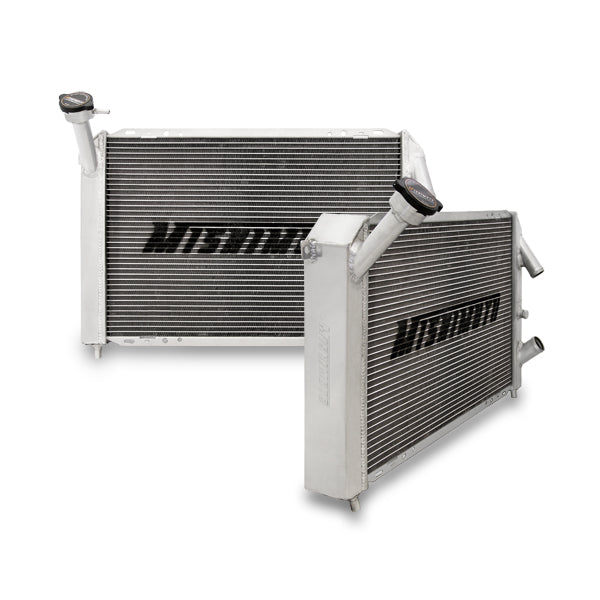

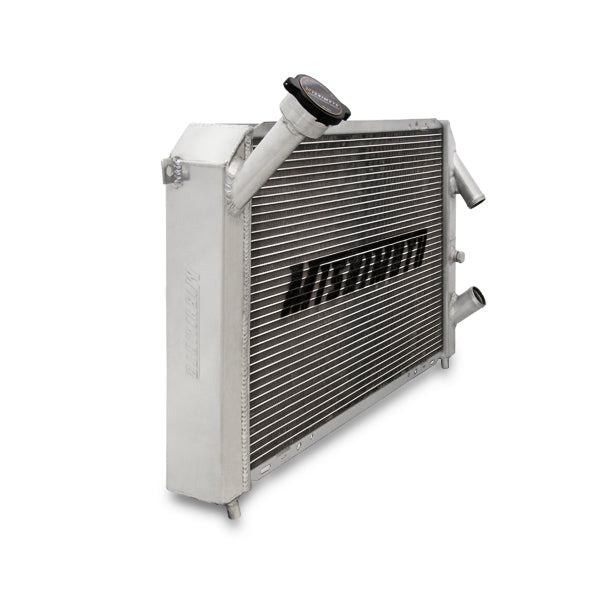

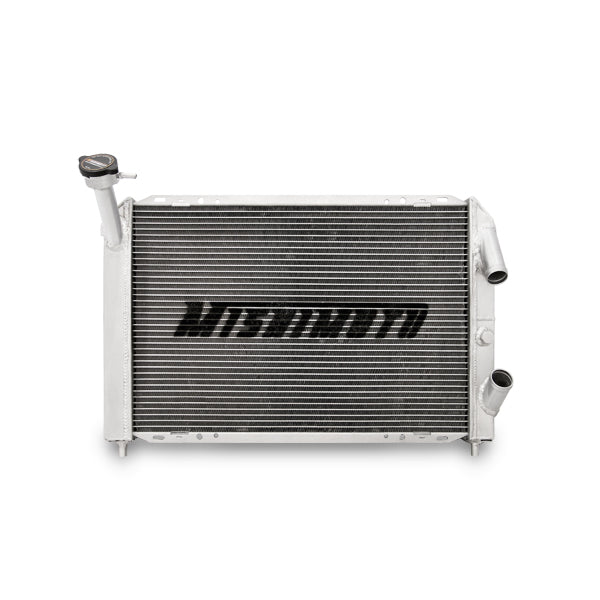

For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine, the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment, installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly, protect your car from overheating.
Features and Benefits
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 2.17-in thick, efficient brazed aluminum core
Specifications
-
DPI: 2067
-
Engine Codes: LS
-
Chassis Codes: FD
-
Includes: Mishimoto Radiator; Mishimoto Radiator Cap
-
Overall Height (in): 27.34
-
Overall Length (in): 19.5
-
Overall Width (in): 2.67
-
Core Length (in): 22.2
-
Core Height (in): 15.75
-
Rows: 2
-
Inlet (in): 1.38
-
Outlet (in): 1.5
-
Core Finish: Uncoated
-
Core Row Quantity: 2
-
Down Flow Or Cross Flow Type: Cross Flow
-
Drain Plug Included: Yes
-
Drain Plug Thread Size: M12 - 1.5
-
Inlet Diameter: 1.38 in
-
Inlet Location: Top Right
-
Outlet Diameter: 1.5 in
-
Outlet Location: Bottom Right
-

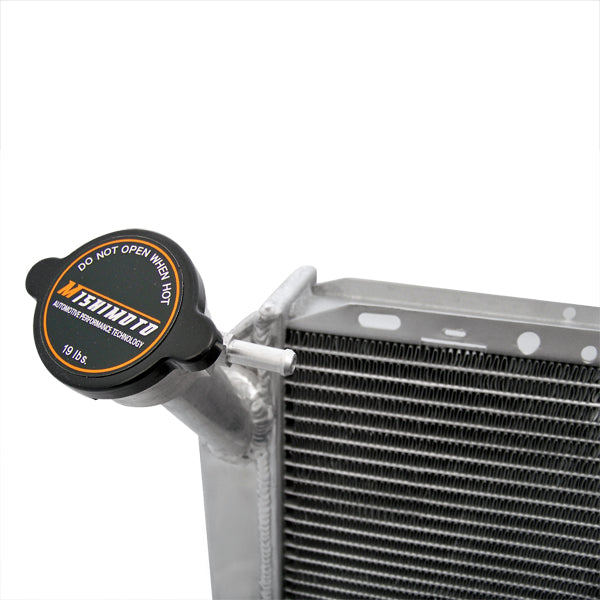

Radiator Cap Included: Yes
