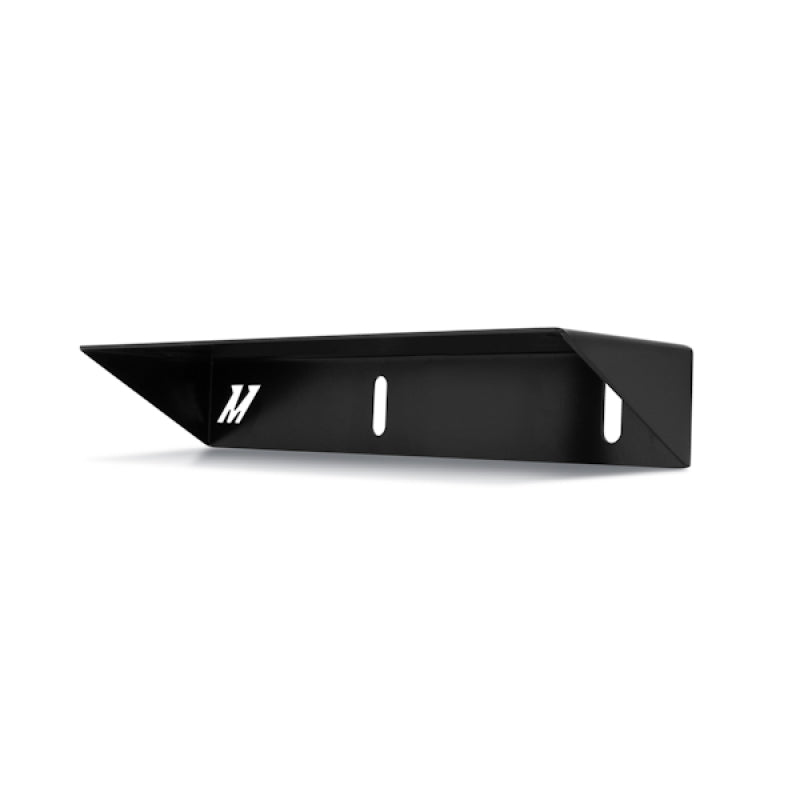

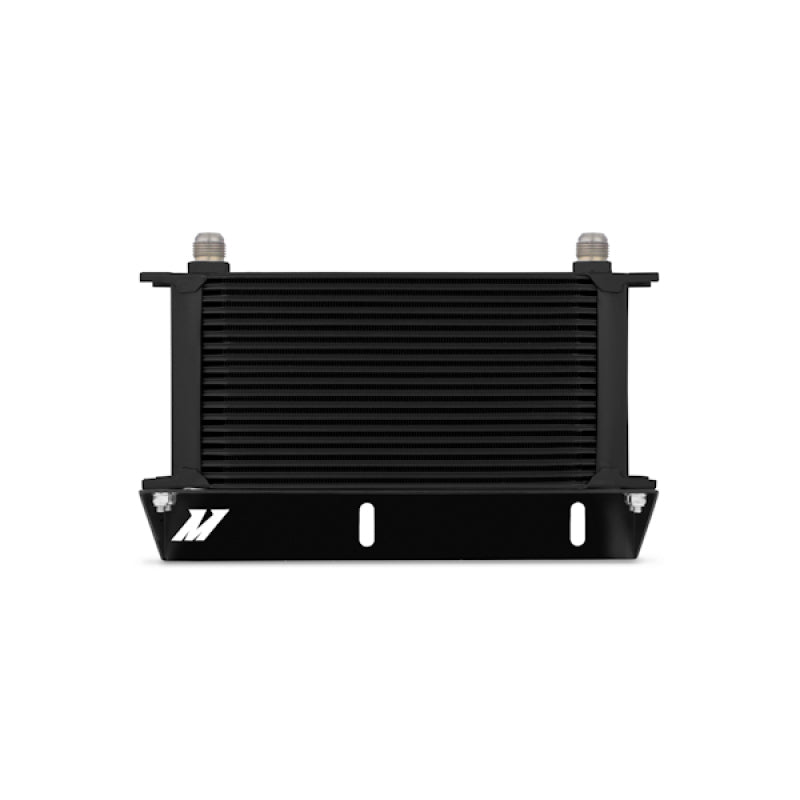

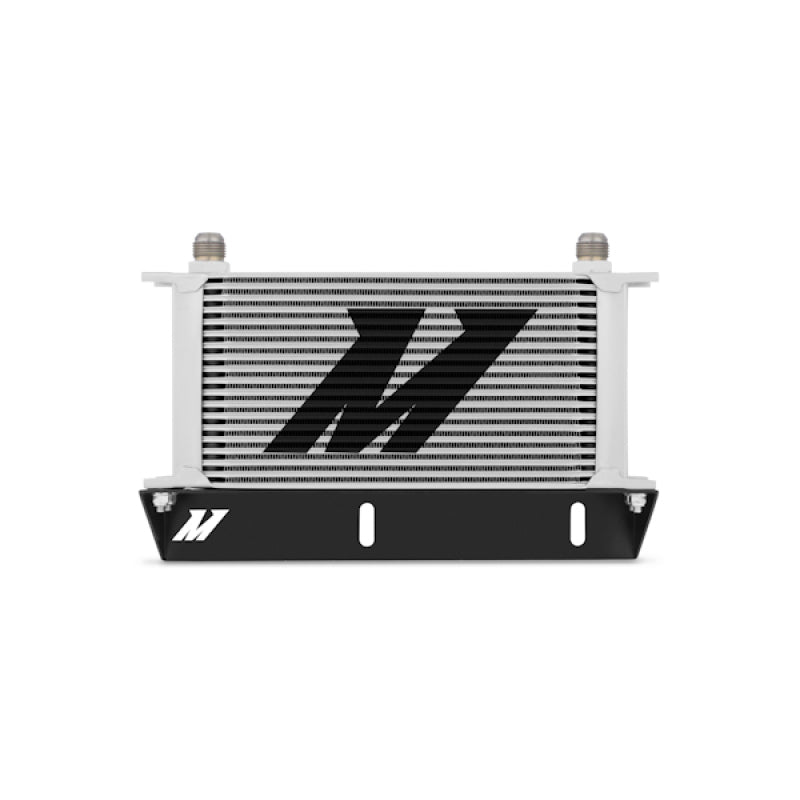

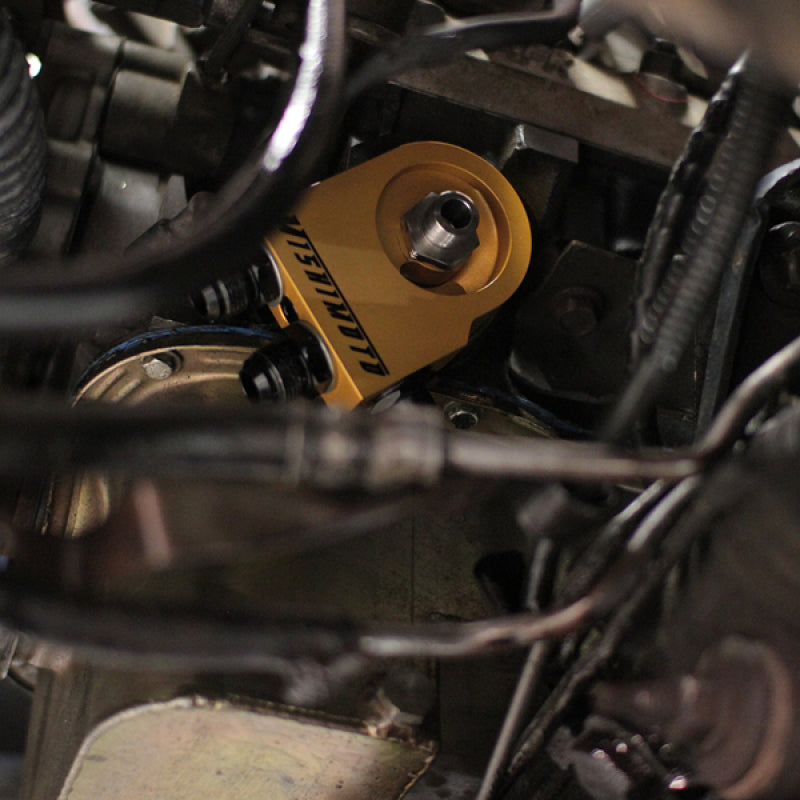

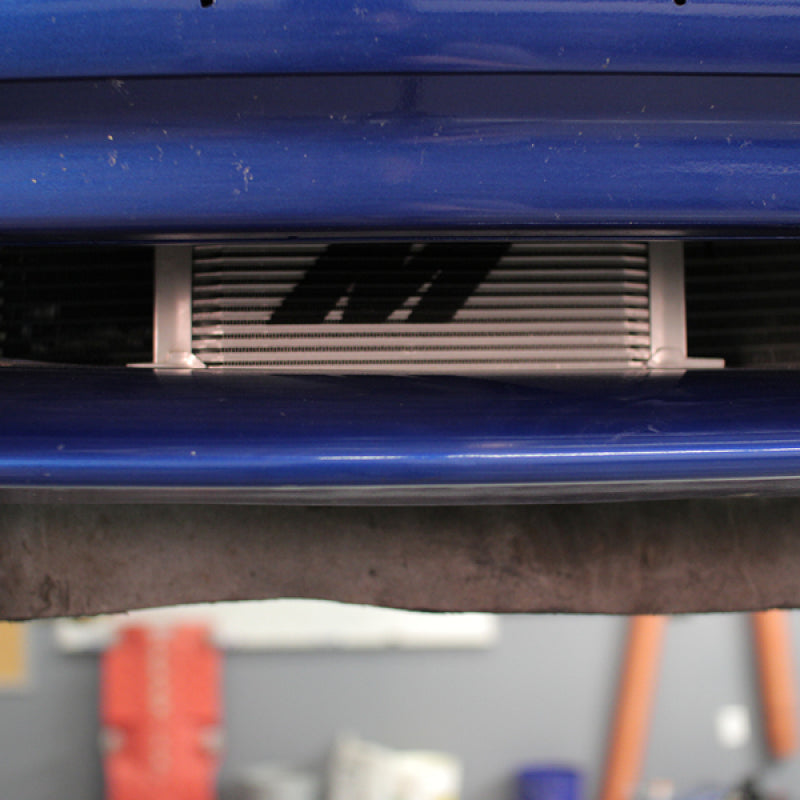

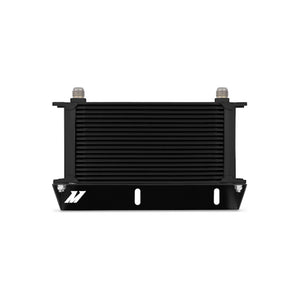

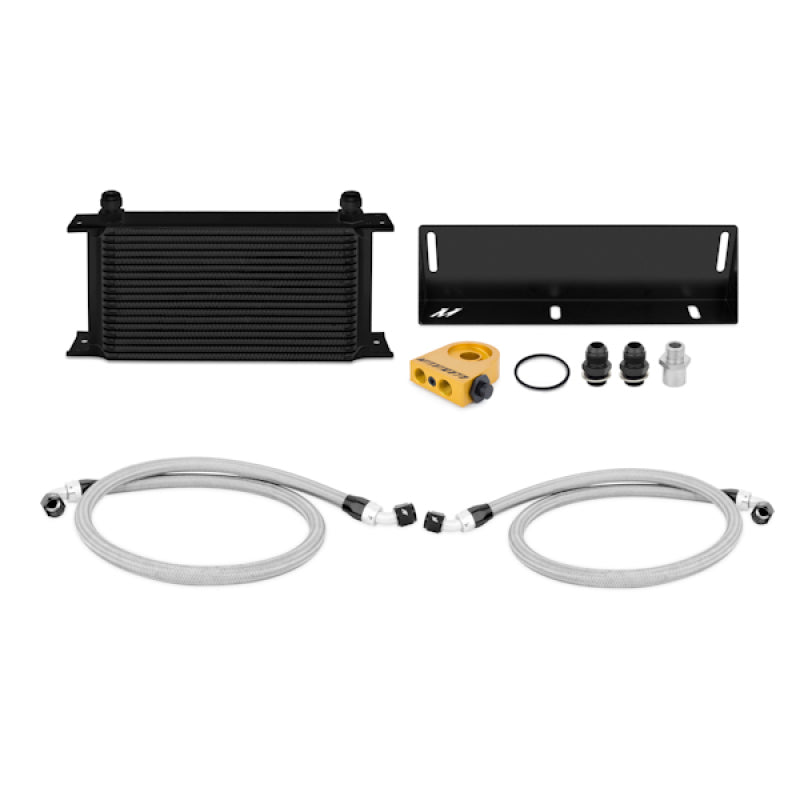

The Fox Body Mustang is well known for its lightweight chassis and powerful drive train.High-powered NA, turbocharged, and supercharged vehicles produce an abundance of unwanted heat under the hood, which accelerates oil breakdown and engine wear.Protect and enhance your Mustang with the Mishimoto direct-fit oil cooler kit.This kit features a large 19-row oil cooler that mounts in the front bumper for maximum airflow and cooling efficiency.The Mishimoto Mustang oil cooler kit can be installed in less than two hours and adds more than .5 qt to your total oil capacity.This kit includes a mounting bracket engineered specifically for the Fox Body, preassembled lines, fittings, oil sandwich plate, and all hardware necessary for a clean installation.The Mishimoto oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.
Features and Benefits
- Dramatic temperature drop
- Minimal pressure loss
- Installs in under an hour
Specifications
-

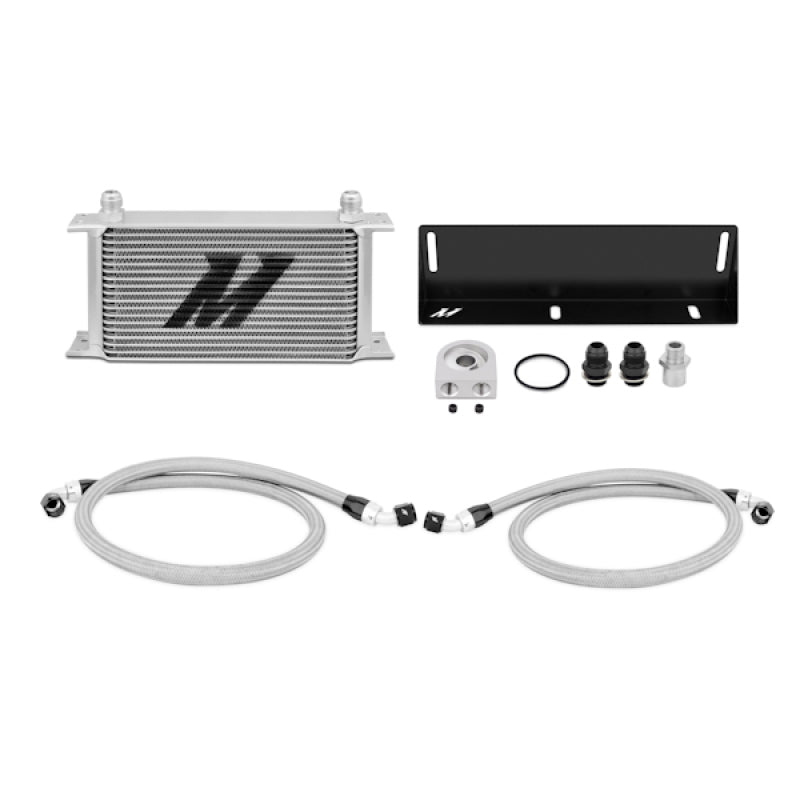

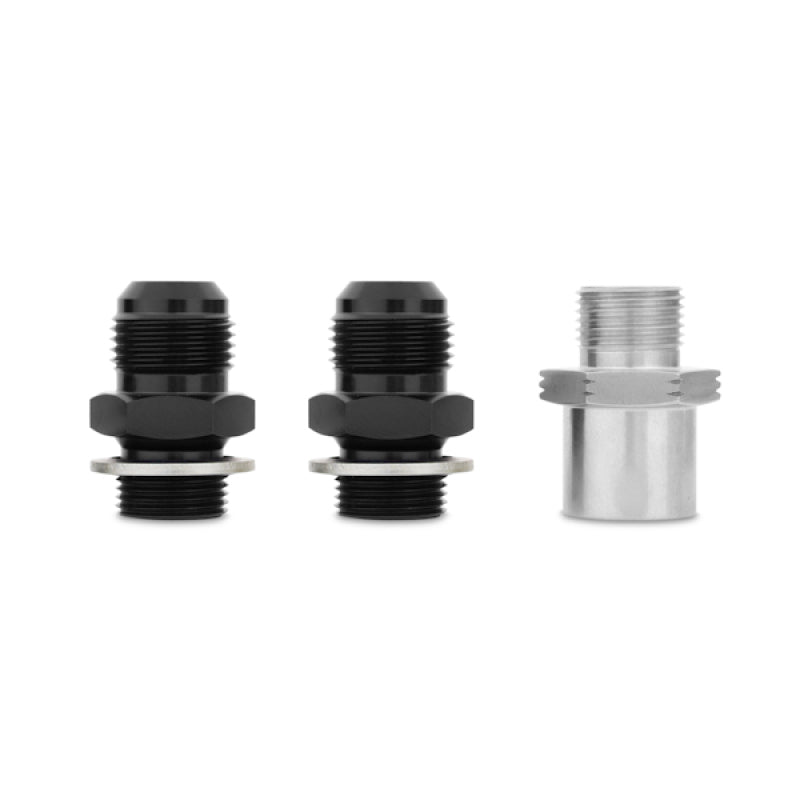

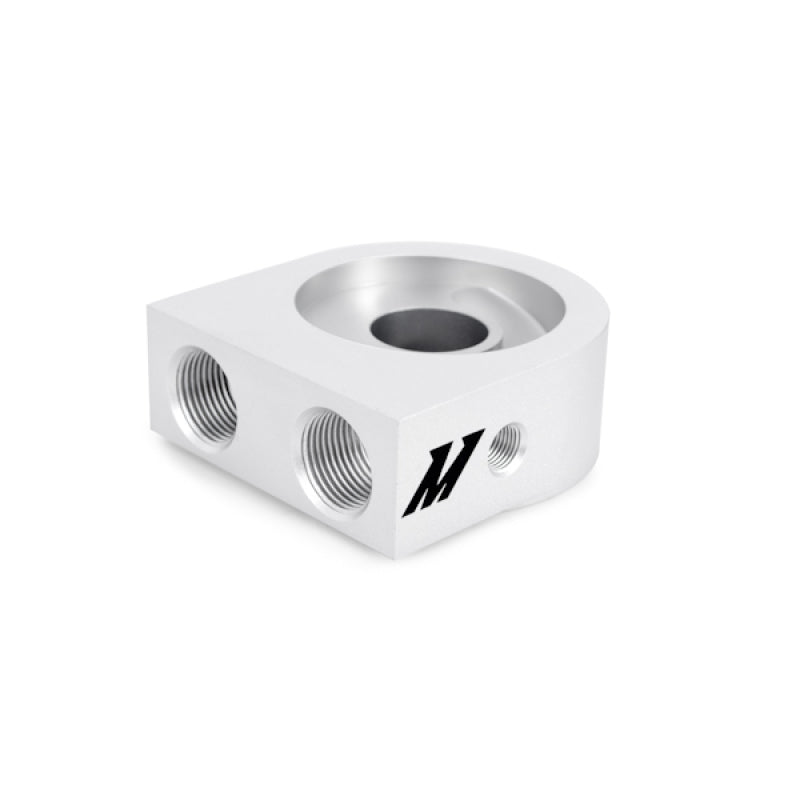

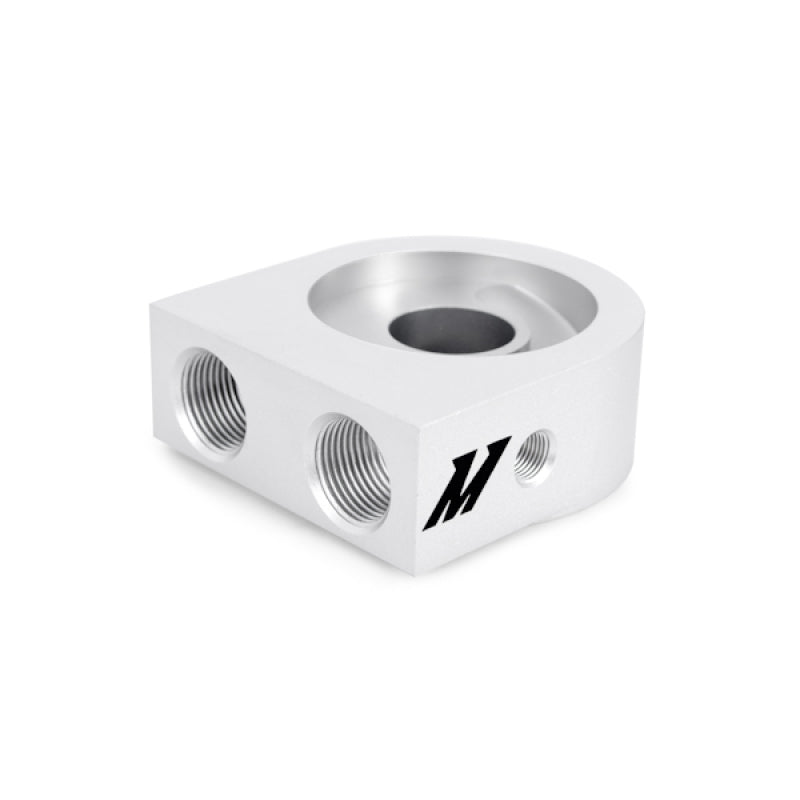

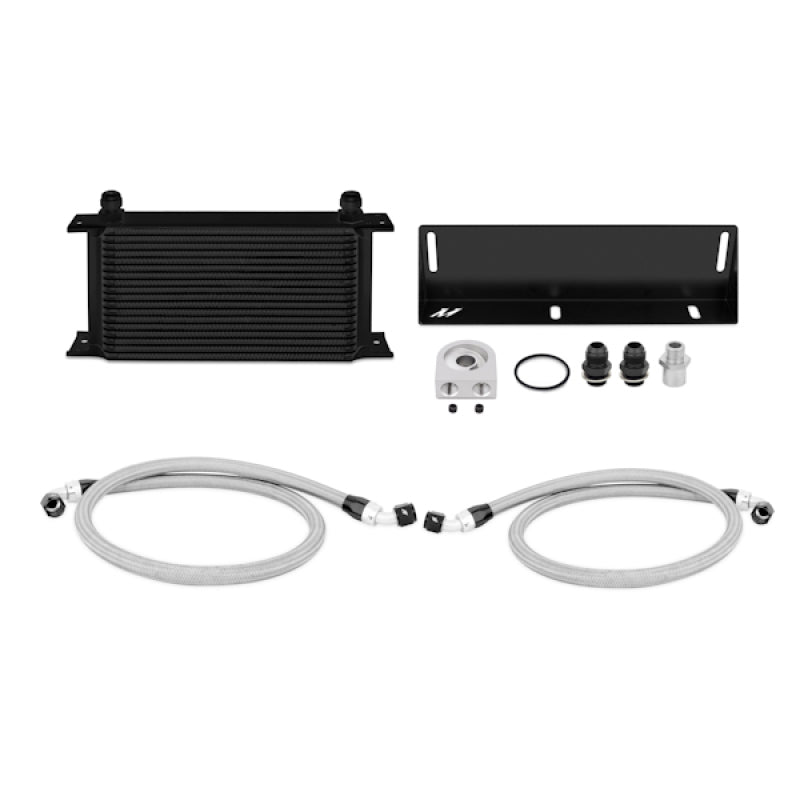

Includes: Application Specific Mounting Bracket; 19-Row Oil Cooler; 3ft, 5in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings; 4ft, 1in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings; M20 Thermostatic Sandwich Plate; 3/4 x 16 Stainless Steel Sandwich Plate Adapter; M20 x -10AN Straight Fittings; Mounting Hardware Set
-
Rows: 19
-
Core Length (in): 11
-
Core Height (in): 5.43
-
Core Thickness (in): 1.97
-
Engine Codes: 302 ci / 4.9L
-
Chassis Codes: Fox
-
Core Type: Bar-and-Plate
-
Core Width: 11 in
-
Finish: Anodized
-
Grade Type: Performance
-
Inlet Fitting Gender: Male
-
Inlet Fitting Type: AN Flare
-
Outlet Fitting Gender: Male
-
Outlet Fitting Type: AN Flare
