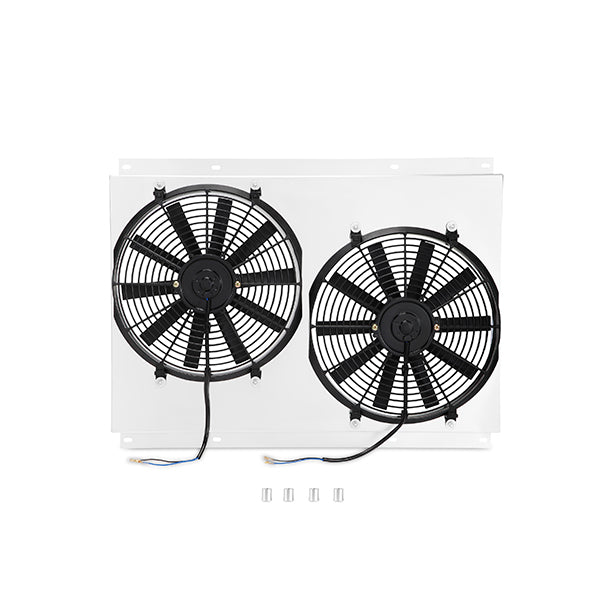

Keep your 1978-86 GM C/K Series cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto'sChevrolet/GM C/K Performance Radiator and includes two 14" high-flow electric fans that produce over 1300 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.
Features and Benefits
- Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
- All-aluminum construction
- Optional fan controller provides complete control of coolant temperatures at idle
Specifications
-
Blade Quantity: 10
-
Blade Type: Straight
-
Depth: 3.9 in
-
Electrical Or Mechanical: Electrical
-
Fan 1 Blade Quantity: 10
-
Fan 2 Blade Quantity: 10
-
Fan Quantity: 2
-
Hardwired Or Plug-In: Plug-In
-
Height: 23.53 in
-
Motor Included: Yes
-
Mounting Hardware Included: Yes
-
Shroud Color: Silver
-
Shroud Included: Yes
-
Width: 3.9 in
-
Color: Silver
-
Finish: Brushed
-
Length (in): 30.48
-
Engine Codes: 292ci (4.8L) L6; 305ci (5.0L) V8; 350ci (5.7L) V8; 454ci (7.4L) V8
-
Chassis Codes: ED3; ED4; ED6; ED7; ED8; ED9; EE2; EE4
-
Includes: (1) Aluminum Fan Shroud; (2) 14-inch Slim Electric Fans; (1) Adjustable Relay; (1) Push-In Radiator Temperature Probe; (1) 1/8-in NPT Temperature Sensor; (1) Wiring Harness; (16) Zip Ties; (4) Wire Straight Crimp Connectors; (1) Wire Butt Crimp Connector; (1) Wire Quick-Splice Connector; (4) Wire Ring Terminals; (2) Wire Spade Connectors; (1) In-line Mini Fuse Holder; (1) 40-in 10 AWG Wire; (1) 7-ft 12 AWG Wire; (1) 12-in Heat Shrink
-
Blade Color: Black
-
Blade Included: Yes
-
Blade Length: 7 in
-
Blade Material: Plastic
