1969-1972 Chevrolet Blazer Base 4.1 Liter 435GA, 1969-1972 Chevrolet Blazer Base 4.1 Liter 435GA, 1969-1972 Chevrolet Blazer Base 4.1 Liter 435GL, 1969-1972 Chevrolet Blazer Base 4.1 Liter 435GL, 1969-1971 Chevrolet Blazer Base 4.1 Liter AT218, 1969-1972 Chevrolet Blazer Base 4.1 Liter Powerglide, 1969-1972 Chevrolet Blazer Base 4.1 Liter Powerglide, 1969-1972 Chevrolet Blazer Base 4.1 Liter SM326, 1969-1972 Chevrolet Blazer Base 4.1 Liter SM326, 1969-1972 Chevrolet Blazer Base 4.1 Liter SM330, 1969-1972 Chevrolet Blazer Base 4.1 Liter SM330, 1969-1972 Chevrolet Blazer Base 4.1 Liter SM465, 1969-1972 Chevrolet Blazer Base 4.1 Liter SM465, 1969-1972 Chevrolet Blazer Base 4.1 Liter THM350, 1969-1972 Chevrolet Blazer Base 4.1 Liter THM350, 1969-1972 Chevrolet Blazer Base 4.1 Liter THM400, 1969-1972 Chevrolet Blazer Base 4.1 Liter THM400, 1969-1972 Chevrolet Blazer Base 4.8 Liter 435GA, 1969-1972 Chevrolet Blazer Base 4.8 Liter 435GL, 1969-1971 Chevrolet Blazer Base 4.8 Liter AT218, 1969-1972 Chevrolet Blazer Base 4.8 Liter Powerglide, 1969-1972 Chevrolet Blazer Base 4.8 Liter SM326, 1969-1972 Chevrolet Blazer Base 4.8 Liter SM330, 1969-1972 Chevrolet Blazer Base 4.8 Liter SM465, 1969-1972 Chevrolet Blazer Base 4.8 Liter THM350, 1969-1972 Chevrolet Blazer Base 4.8 Liter THM400, 1969-1972 Chevrolet Blazer Base 5.0 Liter 435GA, 1969-1972 Chevrolet Blazer Base 5.0 Liter 435GL, 1969-1971 Chevrolet Blazer Base 5.0 Liter AT218, 1969-1972 Chevrolet Blazer Base 5.0 Liter Powerglide, 1969-1972 Chevrolet Blazer Base 5.0 Liter SM326, 1969-1972 Chevrolet Blazer Base 5.0 Liter SM330, 1969-1972 Chevrolet Blazer Base 5.0 Liter SM465, 1969-1972 Chevrolet Blazer Base 5.0 Liter THM350, 1969-1972 Chevrolet Blazer Base 5.0 Liter THM400, 1969-1972 Chevrolet Blazer Base 5.7 Liter 435GA, 1969-1972 Chevrolet Blazer Base 5.7 Liter 435GL, 1969-1971 Chevrolet Blazer Base 5.7 Liter AT218, 1969-1972 Chevrolet Blazer Base 5.7 Liter Powerglide ...See Application Guide for Additional Fitments
Features and Benefits
- All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
- 3-Row brazed aluminum radiator core
- Billet aluminum radiator fill neck
Specifications
-
Overall Height (in): 19.3
-
Overall Length (in): 34.1
-
Overall Width (ins): 6.5
-
Core Length (in): 28.3
-
Core Height (in): 16.1
-
Rows: 3
-
Inlet (in): 1.5
-
Outlet (in): 1.75
-
Core Thickness (in): 2.5
-

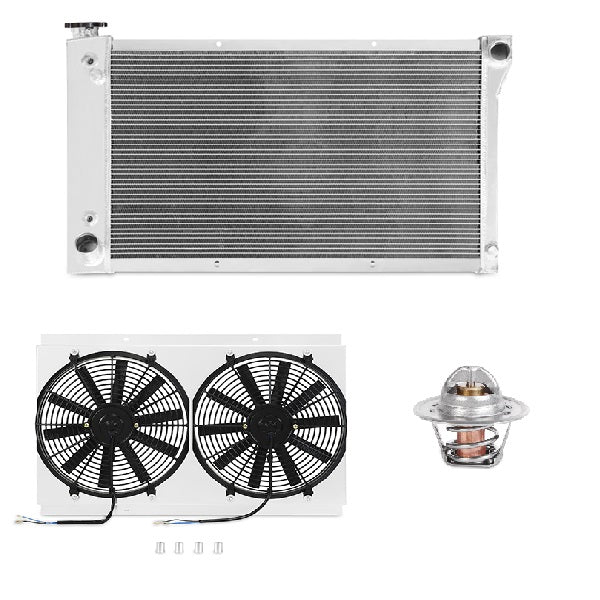

Includes: Mishimoto Radiator; Mishimoto Radiator Cap; Magnetic Drain Plug; Aluminum Fan Shroud; (2) 14-inch Mishimoto Slim Electric Fans; Mounting Hardware; Mishimoto Thermostat
-
Core Construction: Tube-and-Fin
-
Core Row Quantity: 3
-
Down Flow Or Cross Flow Type: Down Flow
-
Drain Plug Included: Yes
-
Drain Plug Thread Size: M12 - 1.5
-
Drain Plug Thread Type Standard: Metric
-
End Tank Construction: Cast
-
Grade Type: Performance
-
Inlet Diameter: 1.5 in
-
Inlet Location: Top Left
-
Internal Transmission Oil Cooler: Yes
-
Mounting Hardware Included: Yes
-
Outlet Diameter: 1.75 in
-
Outlet Location: Bottom Right
-
Overall Width: 6.5 in
-
Radiator Cap Included: Yes
-
Thermostat Included: Yes
