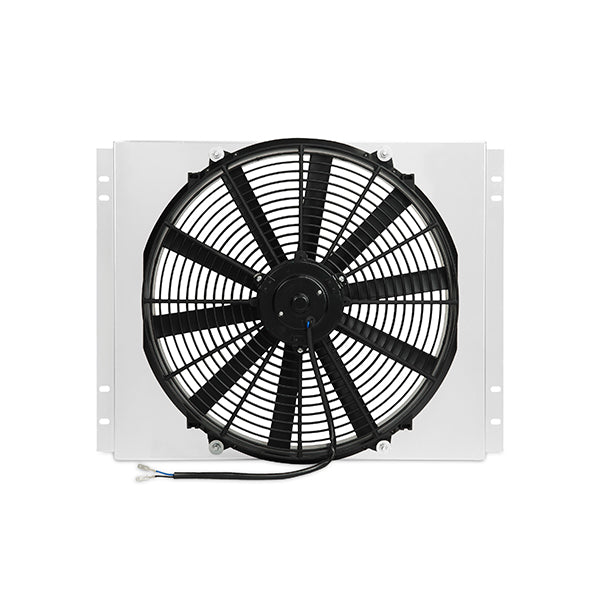

Keep your 1967-1969 Ford Mustang cool with the Mishimoto Performance Fan Shroud Kit! This unique electric fan shroud setup completely eliminates the stock, failure-prone mechanical fan. The fan shroud mounts exclusively to the Mishimoto Performance Aluminum Radiator and includes a 16" high-flow electric fan that produces over 1850 cfm of airflow. Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. As with all our products, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.
Features and Benefits
- Includes a high-flow 16-in electric fan, providing over 1850 cfm of airflow
- All-aluminum construction
- Optional fan controller provides complete control of coolant temperatures at idle
Specifications
-
Blade Color: Black
-
Blade Included: Yes
-
Blade Length: 8 in
-
Blade Material: Plastic
-
Blade Quantity: 10
-
Blade Type: Straight
-
Depth: 3.96 in
-
Electrical Or Mechanical: Electrical
-
Fan 1 Blade Quantity: 10
-
Fan 2 Blade Quantity: 10
-
Fan Quantity: 1
-
Hardwired Or Plug-In: Plug-In
-
Height: 16.5 in
-
Motor Included: Yes
-
Mounting Hardware Included: Yes
-
Shroud Color: Silver
-
Shroud Included: Yes
-
Width: 3.96 in
-
Color: Silver
-
Finish: Brushed
-
Length (in): 21.2
-
Engine Codes: 289ci (4.7L) V8; 302ci (4.9L) V8; 351ci (5.8L) V8
-
Includes: (1) Aluminum Fan Shroud; (1) 16-inch Slim Electric Fan; (1) Adjustable Relay; (1) Push-In Radiator Temperature Probe; (1) 1/8-in NPT Temperature Sensor; (1) Wiring Harness; (16) Zip Ties; (4) Wire Straight Crimp Connectors; (1) Wire Butt Crimp Connector; (1) Wire Quick-Splice Connector; (4) Wire Ring Terminals; (2) Wire Spade Connectors; (1) In-line Mini Fuse Holder; (1) 40-in 10 AWG Wire; (1) 7-ft 12 AWG Wire; (1) 12-in Heat Shrink
