Features and Benefits
- All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
- 3-Row brazed aluminum radiator core
- Billet aluminum radiator fill neck
Specifications
-
Core Construction: Tube-and-Fin
-
Core Height: 22.8 in
-
Core Length: 17.4 in
-
Core Row Quantity: 3
-
Core Thickness: 2 in
-
Down Flow Or Cross Flow Type: Down Flow
-
Drain Plug Included: Yes
-
Drain Plug Thread Size: M12 - 1.5
-
Drain Plug Thread Type Standard: Metric
-
End Tank Construction: Cast
-
Grade Type: Performance
-
Inlet Diameter: 1.75 in
-
Inlet Location: Top Left
-
Internal Transmission Oil Cooler: Yes
-
Mounting Hardware Included: Yes
-
Outlet Location: Bottom Right
-
Overall Height: 25.2 in
-
Overall Length: 23 in
-
Overall Width: 4.5 in
-
Radiator Cap Included: Yes
-
Thermostat Included: Yes
-
Overall Width (ins): 4.5
-
Rows: 3
-
Inlet (in): 1.75
-
Outlet (in): 1.75
-
Engine Codes: 250ci (4.1L) L6; 283ci (4.6L) V8; 292ci (4.8L) L6
-

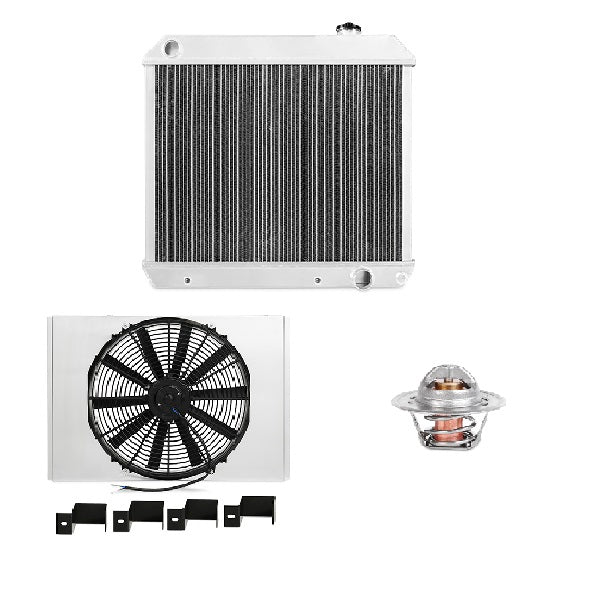

Includes: Mishimoto Radiator; Mishimoto Radiator Cap; Magnetic Drain Plug; Aluminum Fan Shroud; 16-inch Mishimoto Slim Electric Fan; Mounting Hardware; Mishimoto Thermostat
