For 2022+ WRX owners looking to take the next step in performance, look no further than Mishimoto’s Performance Front-Mount Intercooler Kit. Whether you’re building your WRX for the track, dragstrip, or the road, upgrading your WRX’s intercooler is an absolute must. Designed with a massive core, CFD-optimized cast end tanks, and high-flow pipes, this intercooler offers gains of 12 hp and 11.8 lb-ft torque.----The front mounting location of this kit places the intercooler in the lower bumper grille for maximum airflow through the core, making this system ideal for high-performance builds. In dyno testing, our intercooler was able to bring outlet temperatures to within 10-degrees of ambient air temp, ensuring safe power run after run, even on the stock tune. CFD-optimized end tanks, ID-matched pipes, and a high-flow, 4 inch-thick core result in a 1.5 PSI pressure drop, so less of the boost your turbo makes is wasted.----Performance is great, but if you have to destroy your car for it, it’s useless. Our kit contains everything needed for installation with no cutting of the bumper or body required. Our intercooler kit also retains the factory side impact bars and includes a bumper support bar with factory tow hook mounting for safety on the track and the street. The included washer fill neck relocation kit keeps maintenance easy, while allowing for a clean install.----So, If you’re ready to ditch your stock, heat-soak-prone intercooler, it’s time to upgrade to the Mishimoto Performance Front Mount Intercooler Kit. Designed for dependable performance and backed by Mishimoto’s Lifetime Warranty, our 2022+ WRX front mount intercooler kit is the perfect choice for bringing your WRX to the next level.
Installation InstructionsInstallation Instructions
Features and Benefits
- Fits 2022+ Subaru WRX
- Max power gains of 12 HP and 11.8 lb-ft. of torque on stock tune
- Lowers outlet temperatures to within 10-degrees of ambient air temp
Specifications
-
Cold Side Pipe Inside Diameter: 2.4 in
-
Engine Codes: FA24F
-
Chassis Codes: VB
-
Maximum Recommended Boost Pressure (PSI): 60
-
Maximum Recommended Horsepower: 1000
-
Overall Length (in): 40.22 (intercooler)
-
Overall Height (in): 12.89 (intercooler)
-
Overall Width (in): 6 (intercooler)
-
Core Type: Bar-and-Plate
-
Core Thickness (in): 3.93
-
Core Length (in): 26.57
-
Core Height (in): 12.14
-
Inlet (in): 2.4
-
Outlet (in): 2.4
-

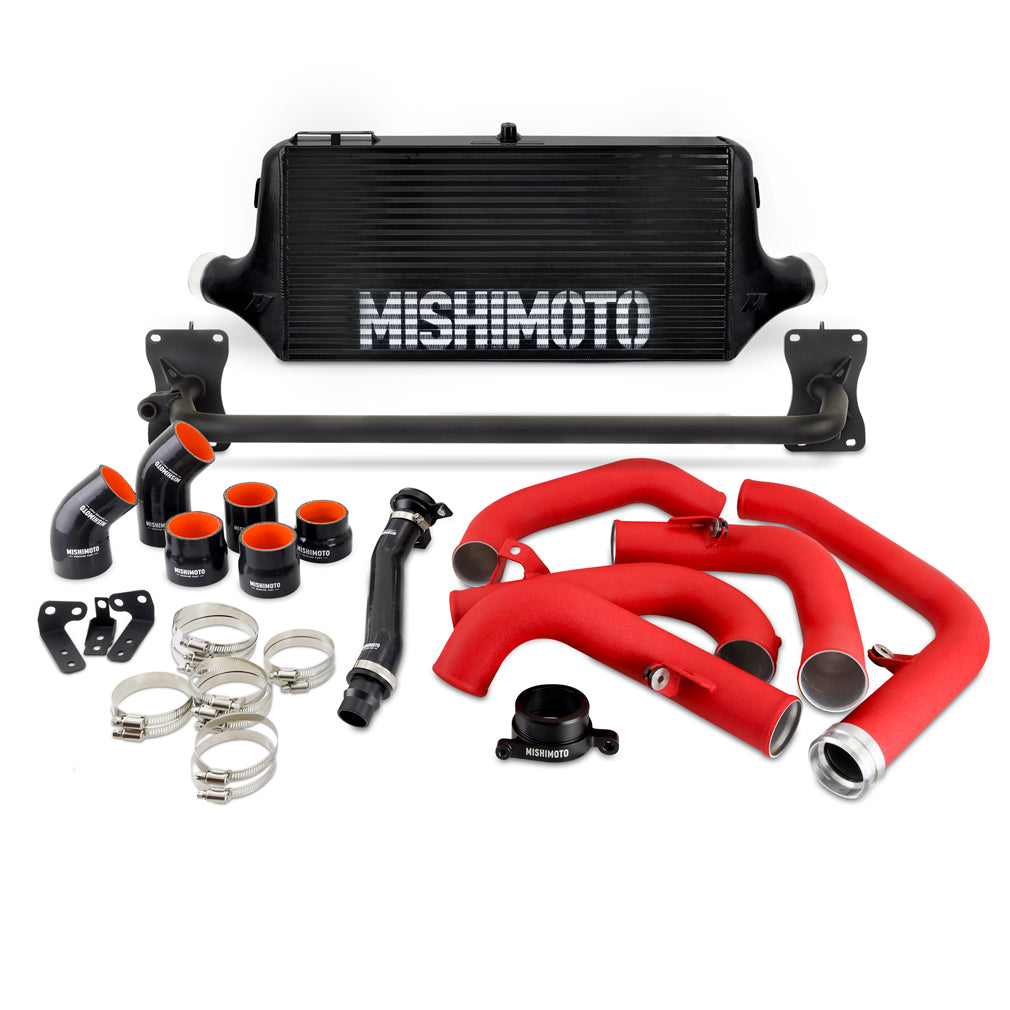

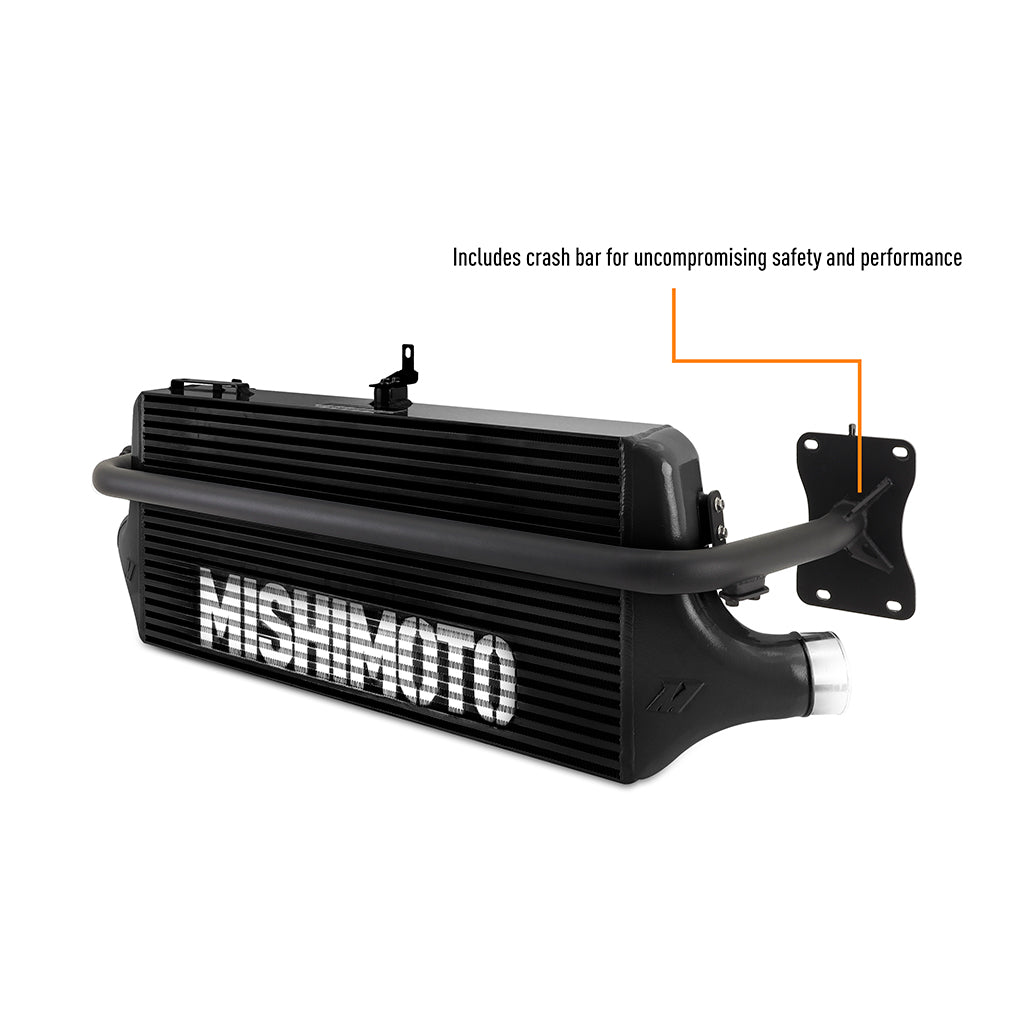

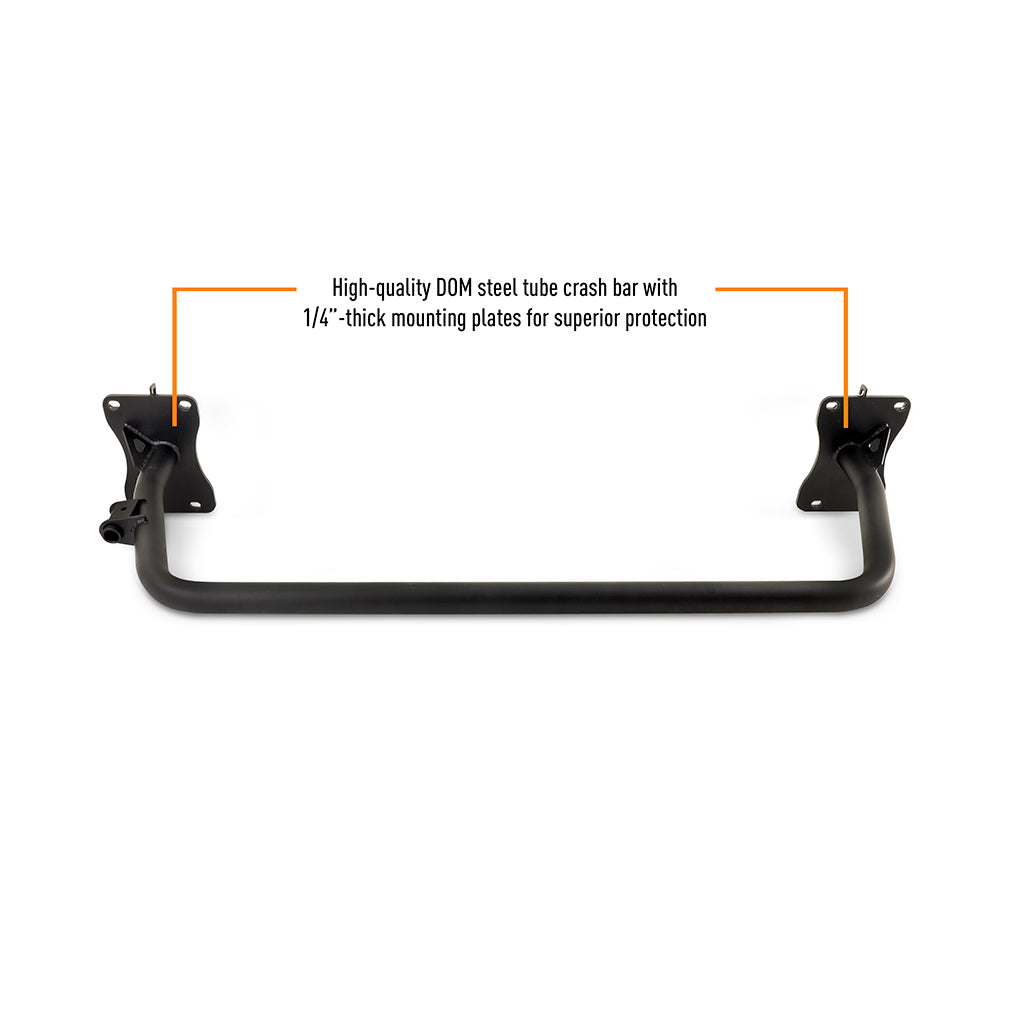

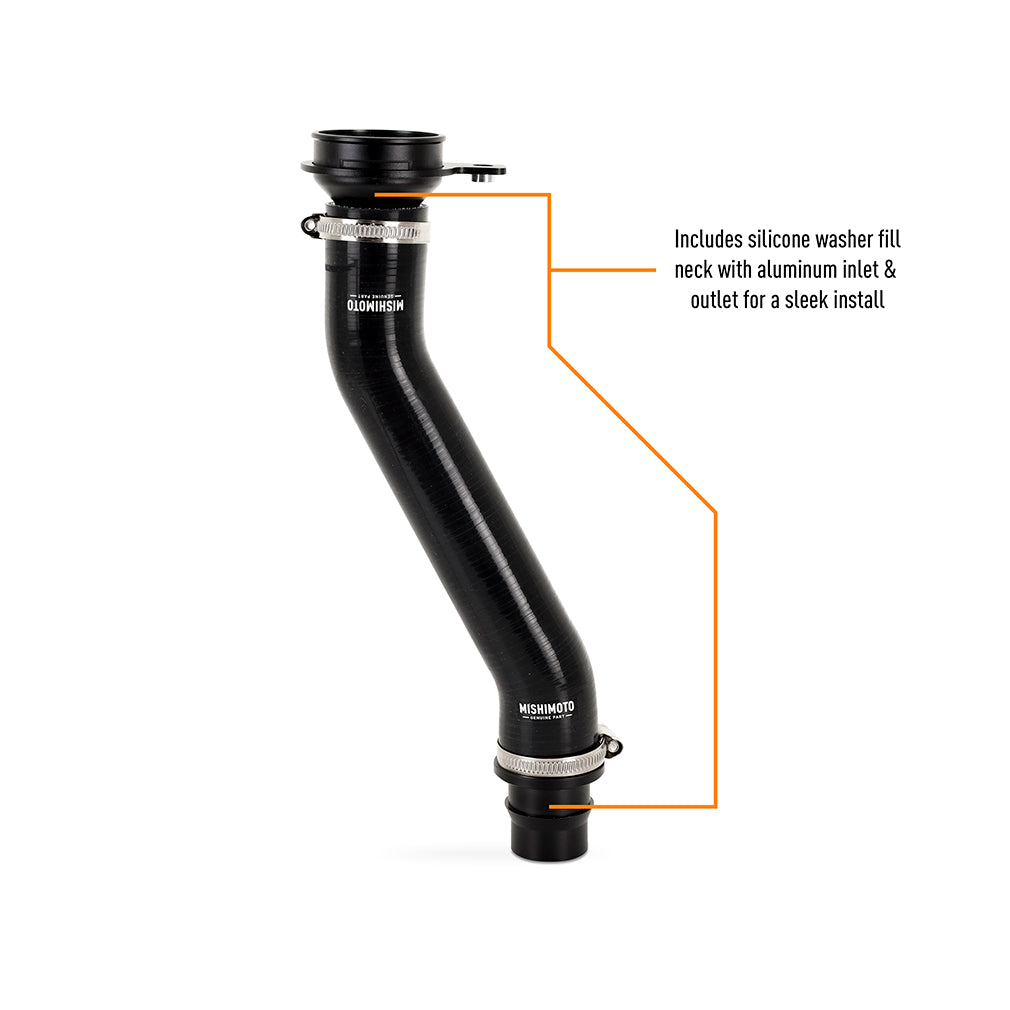

Includes: (1) Front Mount Intercooler; (1) Pipe and Boot Kit with Adaptors; (1) Bumper Support Bar; (1) Washer Fluid Fill Neck Relocation
-
Pipe Diameter: 2.5
-
Core Color: Black
-
Core Construction: Bar-and-Plate
-
Core Material: Aluminum
-
Coupler Color: Black
-
Coupler Material: Silicone
-
End Tank Material: Aluminum
-
Hose Clamps Included: Yes
-
Intercooler Type: Air-to-Air
-
Maximum Boost Pressure: 60 psi
-
Maximum Horsepower: 1000 hp
-
Pipe Color: Red
-
Pipe Finish: Powder Coated
-
Pipe Material: Aluminum
-
Universal Or Specific Fit: Specific
